220 degree mini prisms RSMP480 and RSMP490M - Enables reference points to be located from virtually any direction

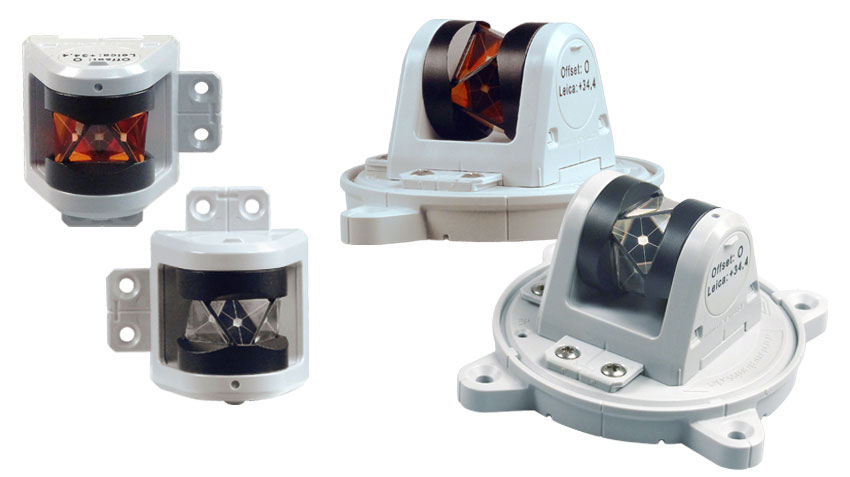

220 degree Mini Prisms

RSMP480

RSMP490M - *with magnetic base

A prism that sets standards
  • Enables reference points to be located from virtually any direction
  • Thanks to the RS range of accessories, quick and easy mounting on almost all surfaces is guaranteed

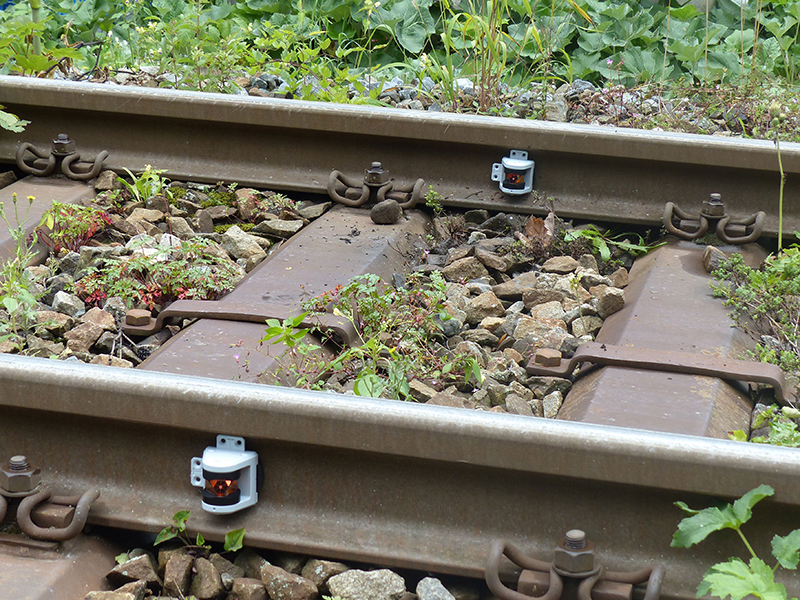

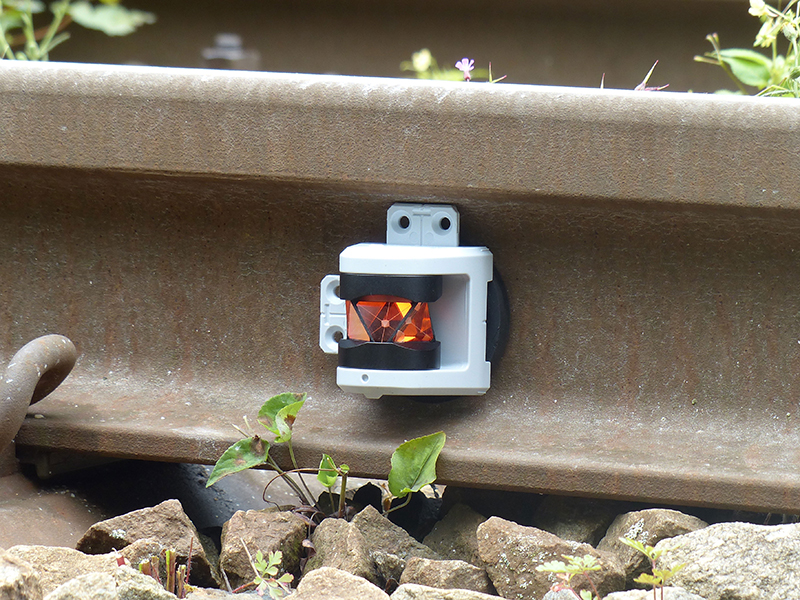

  • Also available as version RSMP480M* for track monitoring
  • The RSMP490M* is part of our OPFA system (One Point Fits All)

Based on experience, aiming the prisms in ATR mode delivers the best measurement results. Accuracy levels of approximately ±1 mm are often achieved.

The combination of easy mounting on almost all surfaces with our accessories and the possibility of being able to use the measuring point from all sides makes these prisms something special.

A unique feature in surveying is the ability to rotate the 220 degree prisms along their axis. This allows the reference point to be used horizontally, vertically, and even at an incline, which is e.g. helpful in ramp construction.

When using mini prism RSMP480 and RSMP490M in the ATR mode ranges of up to 300 meters are obtained. The ranges depend on the survey instrument and are influenced by weather and ambient conditions.

Available in grey for a longer period of time

Offset: 0 (Leica +34.4),
tilting axis height: 30 mm

 Offset: 0 (Leica +34.4),
tilting axis height: 45 mm

A smart and cost-effective alternative for a 360 Degree Prism:

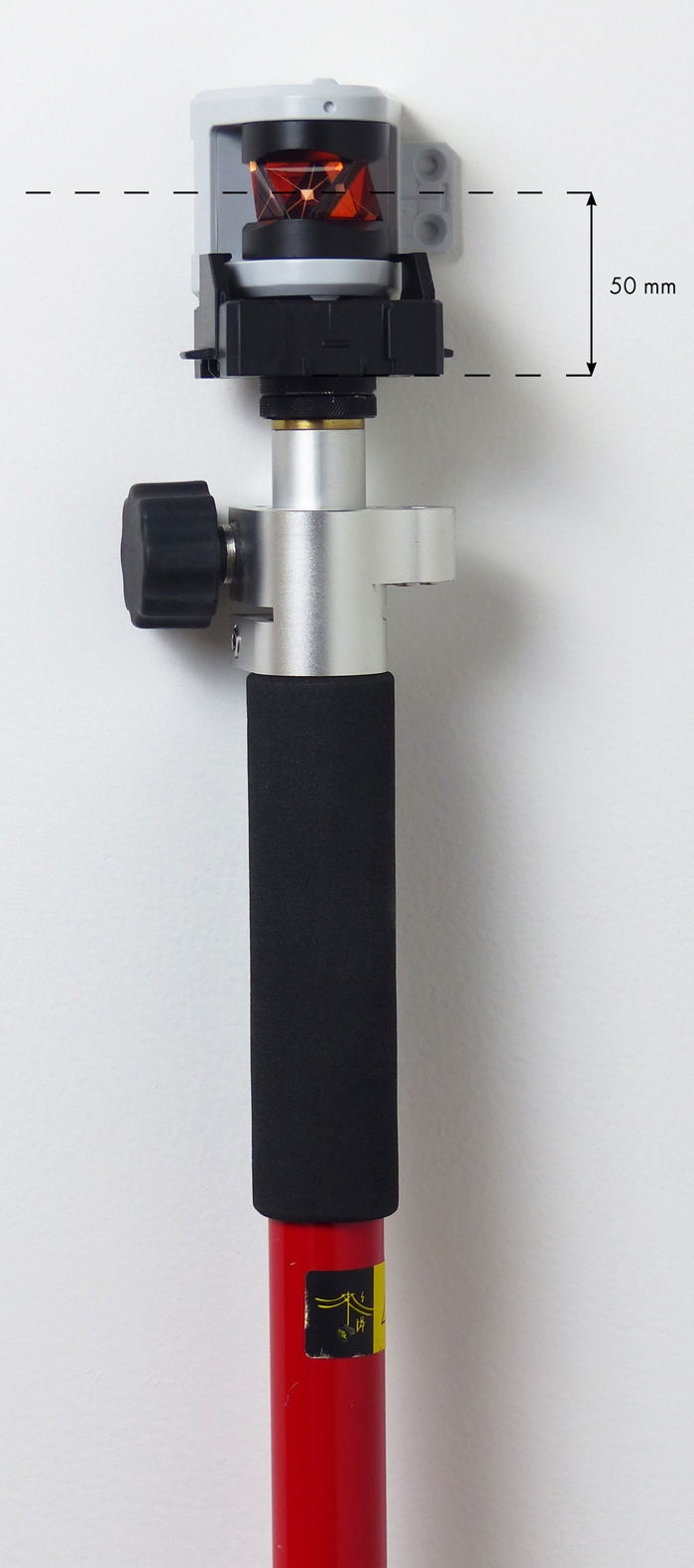

220 Degree Mini Prism RSMP480 with a 5/8" adapter on a prism pole

Offset: 0 (Leica +34.4), tilting axis height: 50 mm

RSMP480 220 degree mini prism on a prism pole

Suitable accessories for the RS mini prisms
protection cap for RS mini prisms

Protection Cap RSPC20/RSPC20M

Plastic cover RSPC20 protects prisms/reflective targets against dirt.

Magnetic protection cap RSPC20M is available for hard to reach points, on tunnel roofs for example.
Metal Cube RSPC50 with 5/8" thread

Metal Cube RSPC50 with 5/8" thread

With the metal cube RSPC50 - screwed onto a prism rod - makes it easy to remove and replace the magnetic protective cap RSPC20M from the plastic housing – even in difficult positions.
RS Construction Glue RSMK-FIX with high grap Construction Glue with high grap
  • Powerful construction glue with immediate initial adhesion.
  • Free from isocyanate and silicone.
  • Permanently elastic and suitable for a wide range of uses.
  • Odourless.
  • RSMK-fix is suitable for all products by Rothbucher Systems.
  • Can be applied using all common dosing pistols.
Also available in the suitcase set:

Compactly and safely packaged, practical and quickly to hand – our suitcase sets, the ideal companion: Everywhere.

Ideal for construction surveying, staking out and
measurements with robotic total stations:

The mini prisms RSMP290M and RSMP390M are also available in the Suitcase Set KS1-490M and KS1-490M-2.


Dimensioning file RSMP480 and RSMP490M for download.
Here you find a dimensioning file for each RS product.
