Mini Prisms with Swivel and Tilt Function RSMP290, RSMP290M, RSMP390 and RSMP390 RS mini prisms White Paper for download

Mini Prisms with Swifel and Tilt Function

RSMP290 and RSMP290M*
RSMP390 and RSMP390M* (*magnetic)

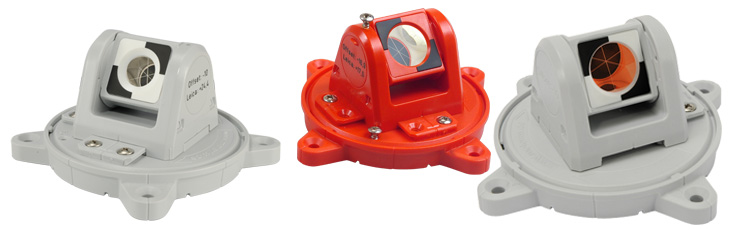

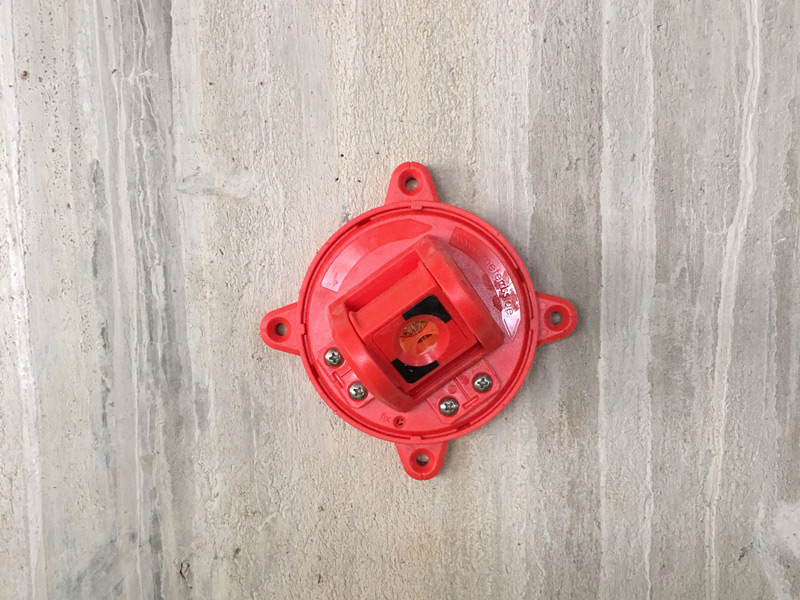

Mini Prism RSMP290(M*) with silver coated, Ø 17.5 mm prism

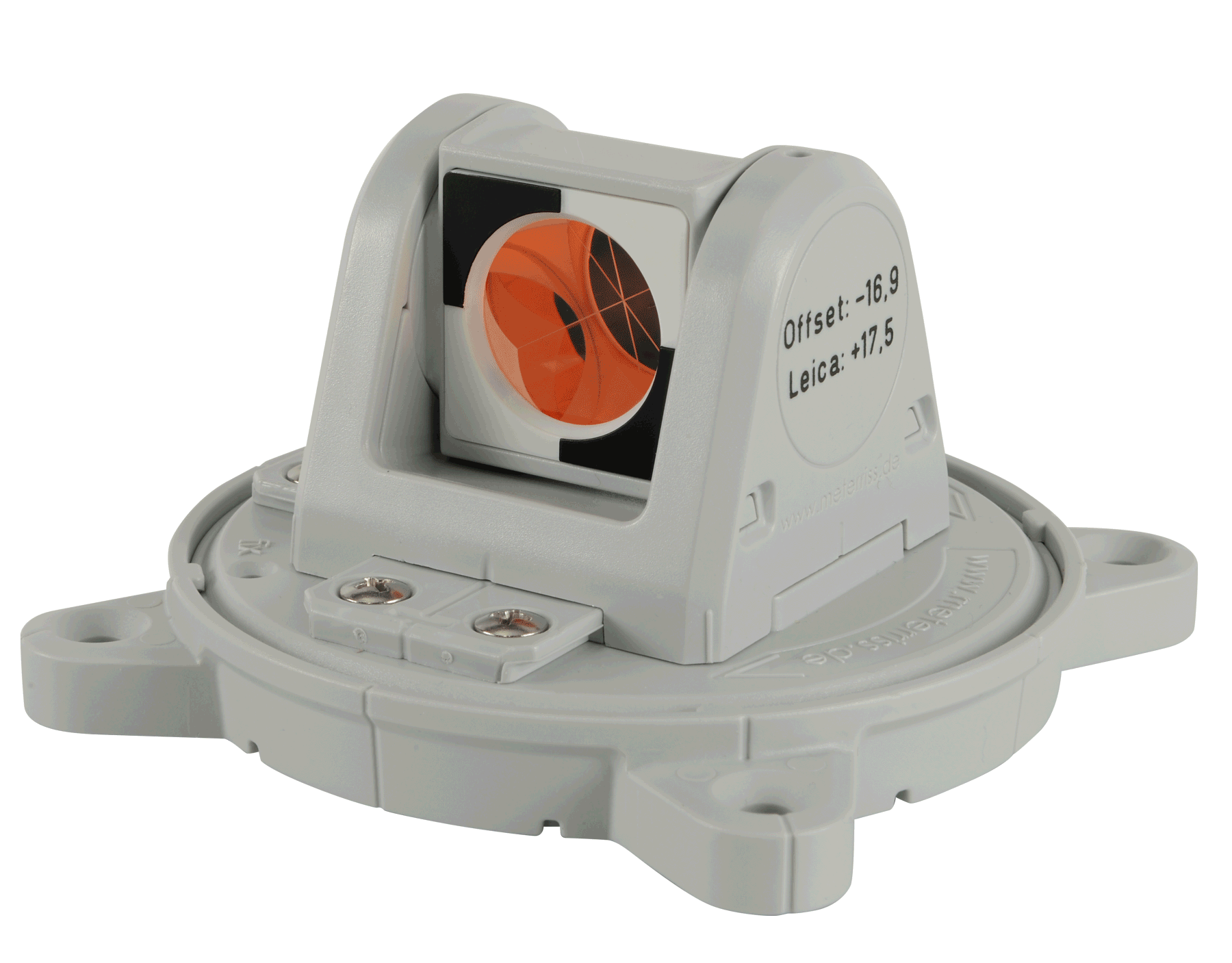

Mini Prism RSMP390(M*) with silver or copper coated, Ø 25.4 mm prism

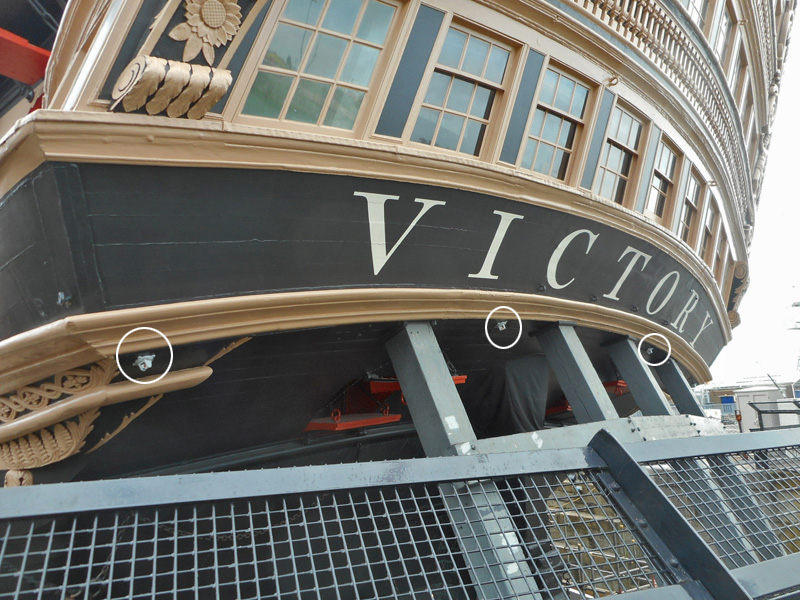

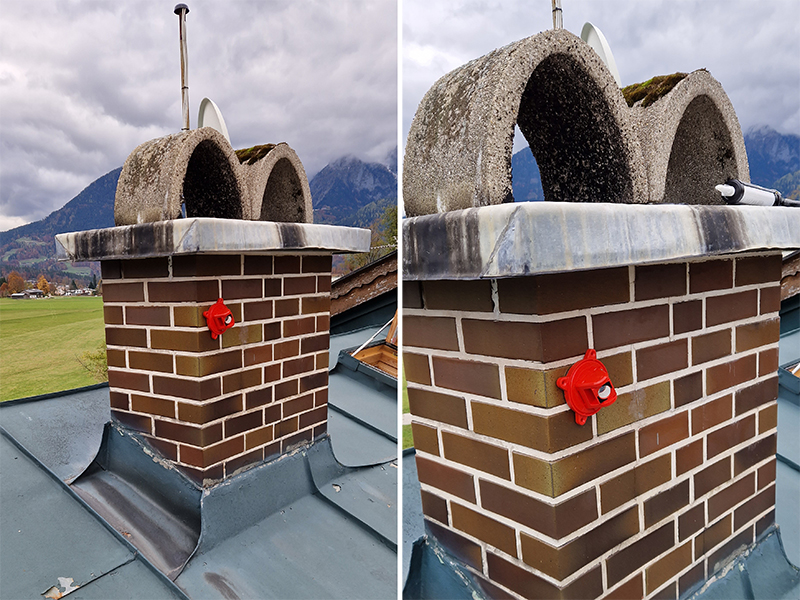

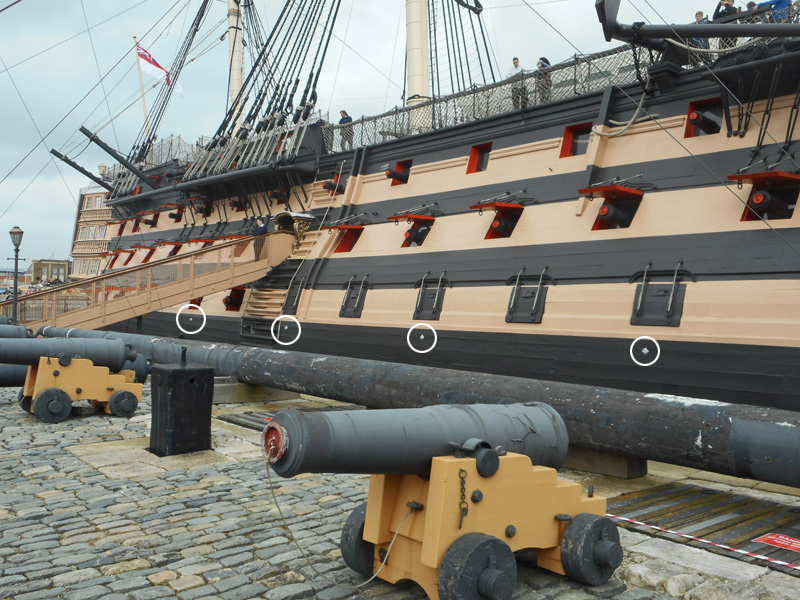

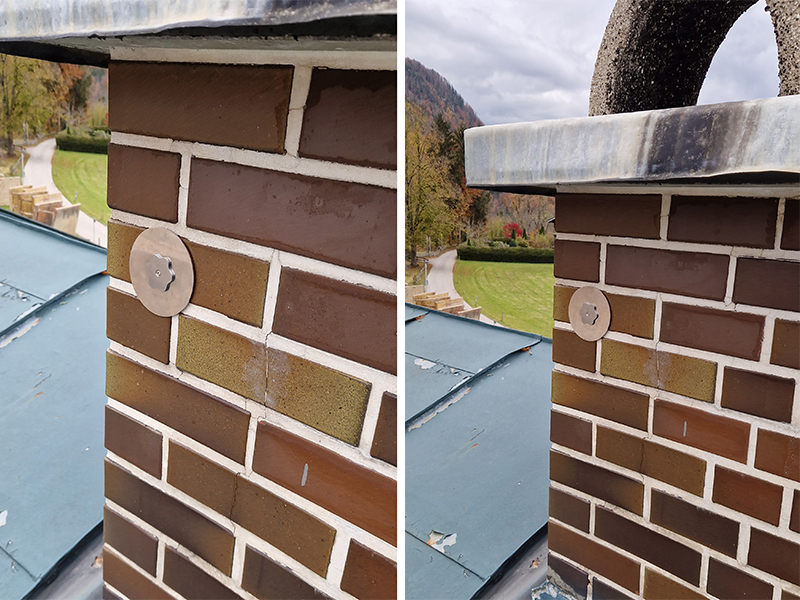

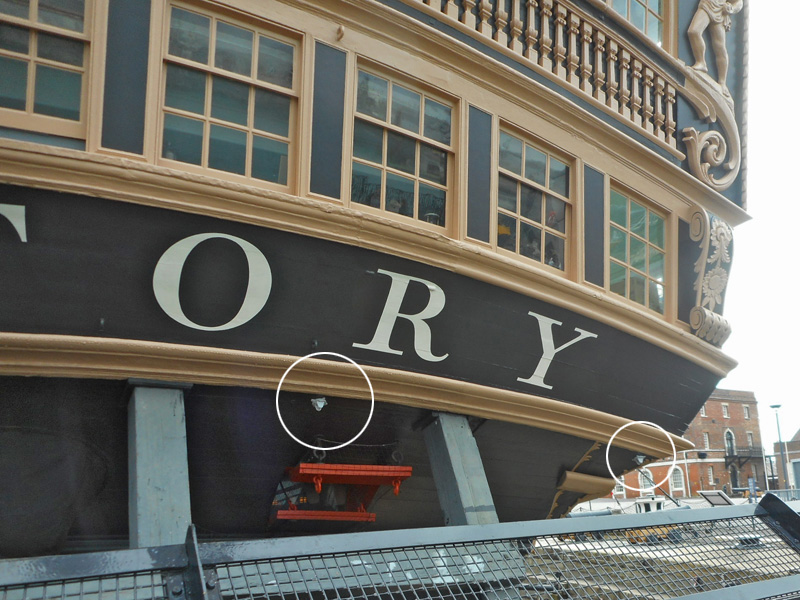

An extensive range of accessories are available for mounting prisms on different surfaces. Solutions for all kinds of mounting requirements on concrete, glass, rocks, historic buildings, oil and gas pipelines, metal and many other difficult surfaces are part of the standard repertoire.

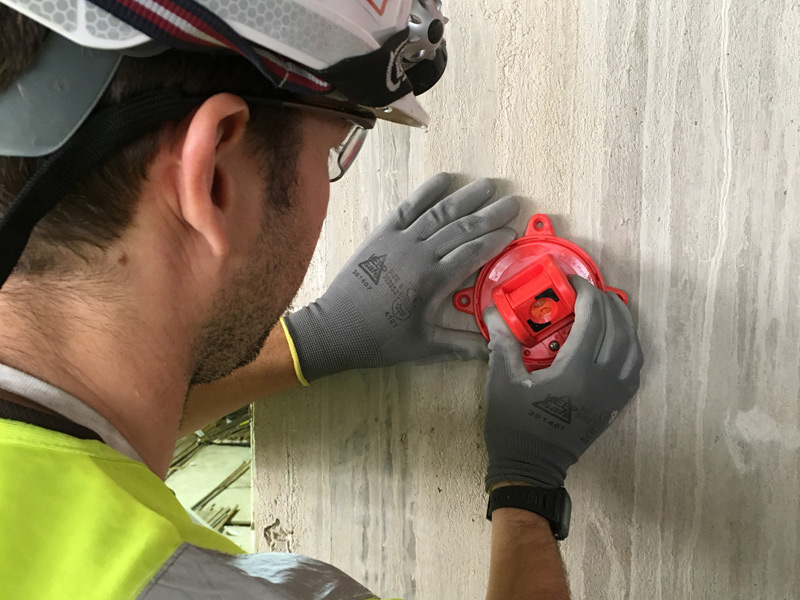

RSMP290 and RSMP390 can be quickly and easily stuck using glue (RSMF-FIX), plugs and screws.
The magnetic versions RSMP290M and RSMP390M are compatible with our OPFA System.

Advantages:

  • The prism can always precisely be aligned with the survey instrument.

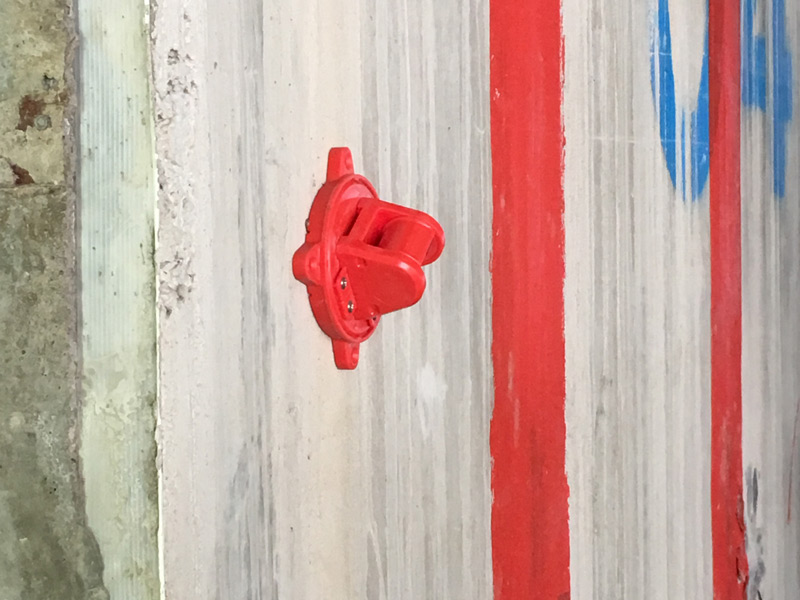

  • The prism can be rotated through 360 degree, enabling the same survey point to be used from almost any direction.
  • Bridges, façades and many other objects can thus be monitored more quickly and precisely.

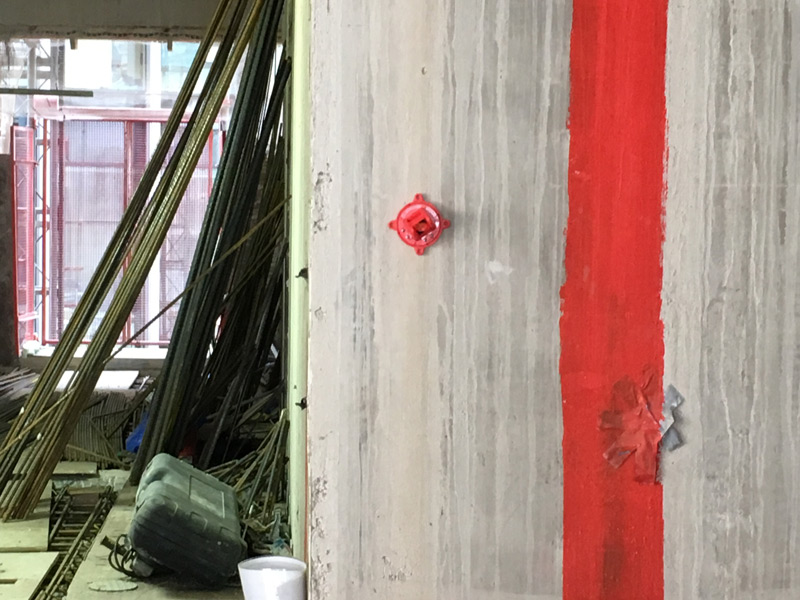

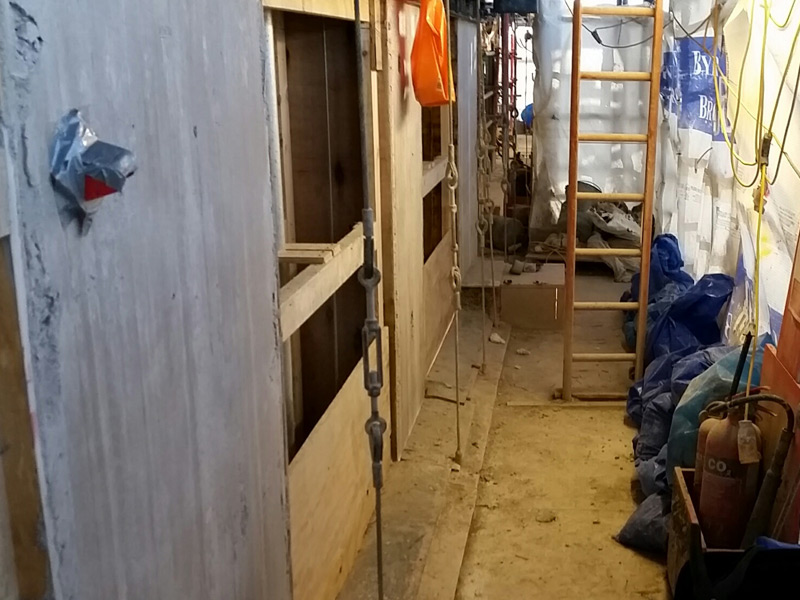

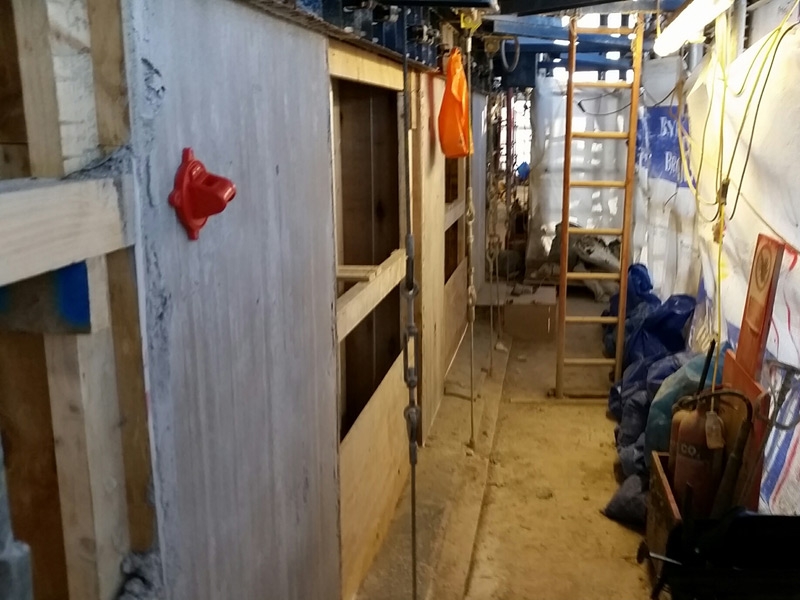

  • Permanent settlement monitoring can be carried out during the building work.
  • The OPFA system enables long-term monitoring over decades.
RS MIni prism RSMP390M rotating in a radius of 360 degree and can also be tilted

With mini prism RSMP290(M*), ranges up to 500 m can be achieved in ATR mode, with the mini prism RSMP390(M*) up to 600 m. The ranges depend on the survey instrument and are influenced by weather and ambient conditions.

When sighting survey points that are already known, ranges of up to 1000 m can be achieved with robotic total stations!

For measurements in manual mode, depending on the focus, ranges of approx. 200 m can be obtained.

RSMP290 with Ø 17.5 mm mini prism: offset: -11.0 (minus 11) [Leica + 23.4], tilting axis height: 45 mm
RSMP390 with Ø 25.4 mm mini prism: offset: -16.9 (minus 16.9) [Leica +17.5], tilting axis height: 45 mm

Suitable accessories for the RS mini prisms
protection cap for RS mini prisms

Protection Cap RSPC20/RSPC20M

Plastic cover RSPC20 protects prisms/reflective targets against dirt.

Magnetic protection cap RSPC20M is available for hard to reach points, on tunnel roofs for example.
Metal Cube RSPC50 with 5/8" thread

Metal Cube RSPC50 with 5/8" thread

With the metal cube RSPC50 - screwed onto a prism rod - makes it easy to remove and replace the magnetic protective cap RSPC20M from the plastic housing – even in difficult positions.
RS Construction Glue RSMK-FIX with high grap Construction Glue with high grap
  • Powerful construction glue with immediate initial adhesion.
  • Free from isocyanate and silicone.
  • Permanently elastic and suitable for a wide range of uses.
  • Odourless.
  • RSMK-fix is suitable for all products by Rothbucher Systems.
  • Can be applied using all common dosing pistols.
Also available in the suitcase set:

Compactly and safely packaged, practical and quickly to hand – our suitcase sets, the ideal companion: Everywhere.

Ideal for construction surveying, staking out and
measurements with robotic total stations:

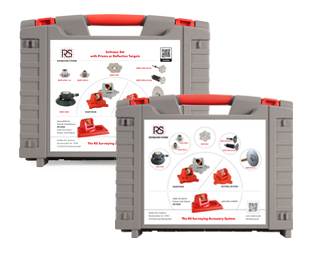

The mini prisms RSMP290M and RSMP390M are also available in the Suitcase Set KS1-390M and KS1-390M-2.


Dimensioning file RSMP290(M) and RSMP390(M).pdf for download.
Here you find a dimensioning file for each RS product
