One Fixed Point For All Instruments

Create fixed points quickly, easily and permanently – a unique system with multiple options

Using the correct offset, the surveyor always obtains the same survey point or the same XYZ coordinates.

Our new video "One Point Fits All" gives you an overview about the Fixed Point System RSFP-X90.



Fixed Point System RSFP-X90 to RSFP-X99

Fixed Point System RSFP-X90 for all RS products with magnetic base

One reference point for all instruments: Total stations, robotic total stations, scanners, drones, Lidar, SLAM, Mobile Mapping, GPS and GNSS!

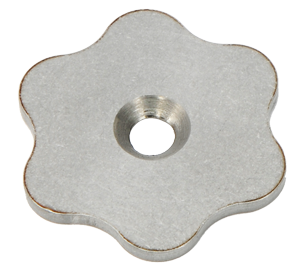

RSFP-X90

RSFP-X90 - the best-known fixed point from this series

  • Fixed Point for all RS products with magnetic base
  • When using products with the same tilting axis height the reference point always remains exactly the same!

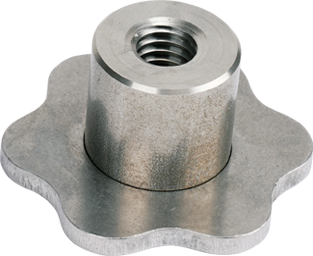

RSFP-X90-1-2 RSFP-X90-1+3
  • RSFP-X90 fixed point as separate version with a 5/8” (RSFP-X90-1) or 3/8” (RSFP-X90-3) female thread
  • When used with a tripod with 5/8” or 3/8” UNC threaded rod

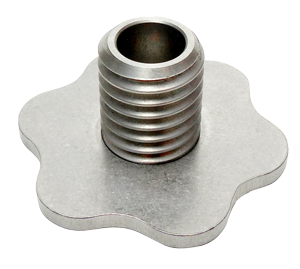

RSFP-X90-2

RSFP-X90-2

  • RSFP-X90 fixed point as separate version with a 5/8” male thread
  • When used with a tripod with 5/8” UNC threaded rod or in combination with the RSA-5/8-1 adapter
RSFP-X90-5

RSFP-X90-5 and RSFP-X99-5

  • In combination with Leica bolts there is the RSFP-X90-5 adapter, enabling all our products with a magnetic base to be easily attached to any Leica bolt.

  • If greater magnetic adhesion to the adapter is desired or required, we recommend the RSFP-X99-5 adapter (e.g. in tunnels).

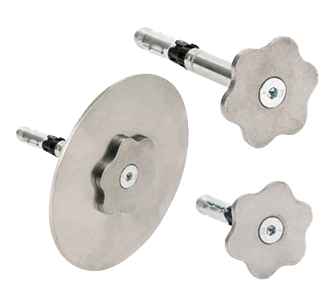

RSFP-X90-X99-20-21

RSFP-X90-20, RSFP-X90-21, RSFP-X99-20, RSFP-X99-21

  • Fixed points with heavy duty anchor for quick and safe mounting of reference points on rocks, difficult surfaces or on historic buildings in the mortar joint.
  • If greater magnetic adhesion to the adapter is desired or required, we recommend the adapter RSFP-X99-20 and RSFP-X99-21
RSFP-X90-X99-25-26

RSFP-X90-25, RSFP-X90-26, RSFP-X99-25, RSFP-X99-26

  • Fixed point RSFP-X90 and RSFP-X99 for clamping points or pipes
  • If greater magnetic adhesion to the adapter is desired or required, we recommend the adapter RSFP-X99-25 and RSFP-X99-26
RSFP-X90-30

RSFP-X90-30 to 39*

  • Power socket adapter – smart solution for reference points inside
  • *different country versions
  • Ideal for digital 3D surveys
RSFP-X90-S40

RSFP-X90-S40

  • Control measurements of inside and outside corners
  • Control measurements at recesses or at the edge of the ceiling
  • Measurements on pillars – direct measurements can be taken on bevelled edges at the vertex!
  • Transfer heights around the corner with marking attachment
  • Measure of position and heights of corner blocks quickly and precisely when bonding clay blocks

RSFP-X90-m6-m8

RSFP-X90-m6, RSFP-X90-m8

  • Fixed Point RSFP-X90 as a separate version with a m6 thread (RSFP-X90-m6) and a m8 thread (RSFP-X90-m8).

RSFP-X97

RSFP-X97

  • Ground Target with fixed point for use with all RS products with magnetic base plate


RSFP-X98

RSFP-X98

  • The ground stand is available straightaway for every instrument at any location

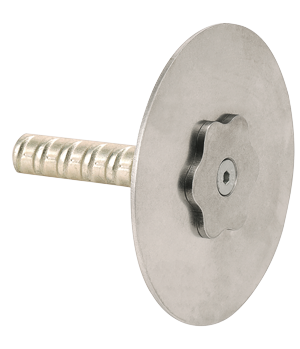

RSFP-X99-11

RSFP-X99, RSFP-X99-11+12

  • For quick fixed points on construction sites and for BIM reference points in tunnels
  • Quick fixing on difficult substrates
  • Long-term solution for monitoring

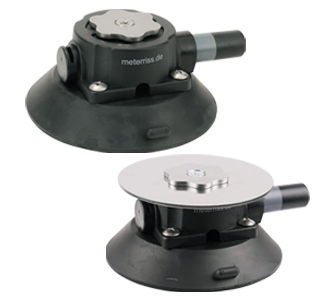

RSSV-X90 RSSV-X99

RSSV-X90, RSSV-X99

  • Suction Cup for all glass surfaces and smooth surfaces, indoors and outdoors
  • If greater magnetic adhesion to the adapter is desired or required, we recommend the suction cup RSSV-X99



QR codes lead to respective application films on our YouTube channel


Dimensioning file  Accessories for series RSFP-X90 to RSFP-X99 for download.
Here you find a dimensioning file for each RS product.
