Floor Stand

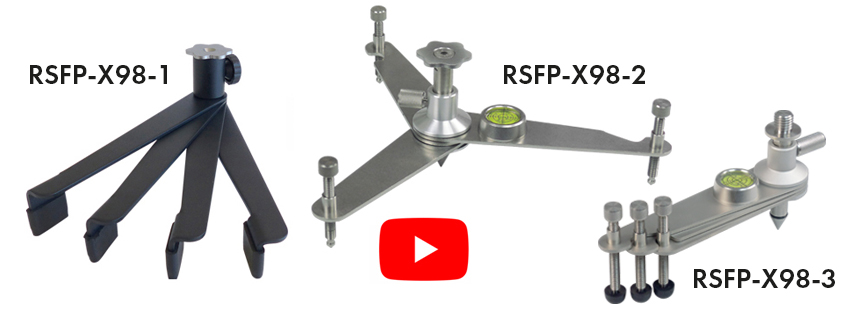

RSFP-X98-1, RSFP-X98-2 and RSFP-X98-3

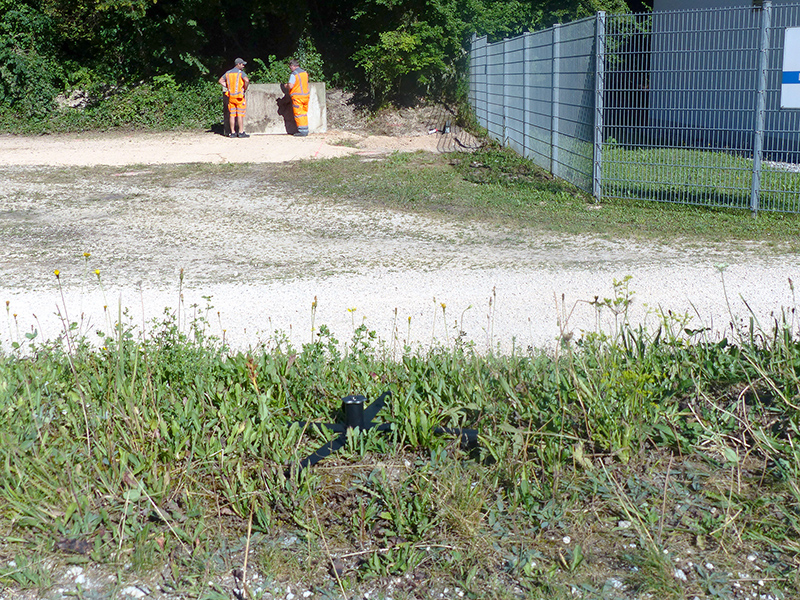

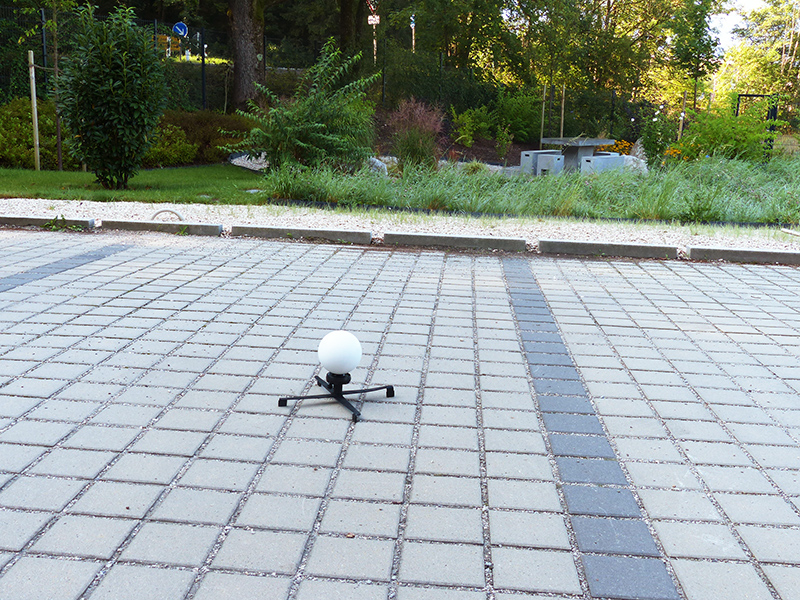

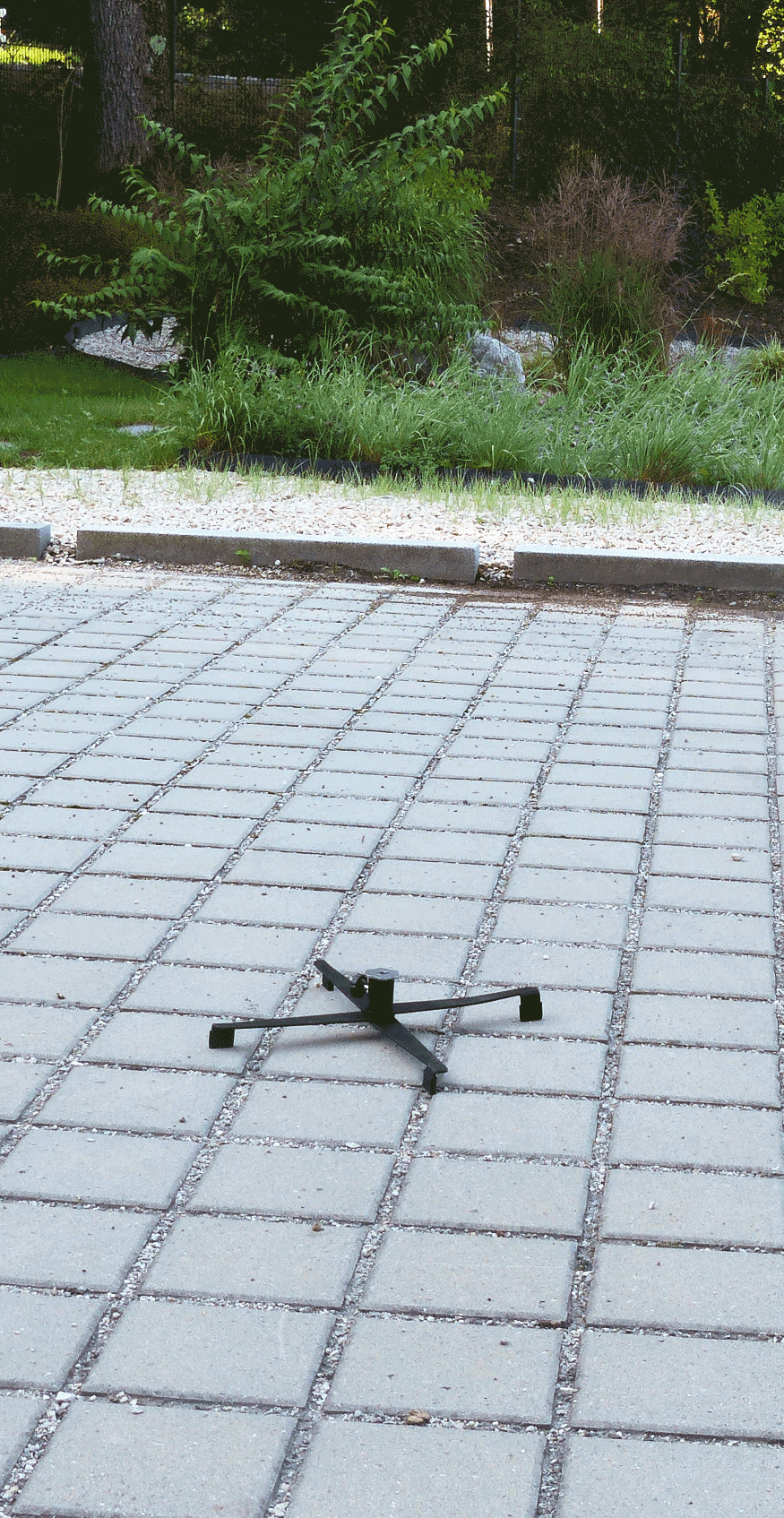

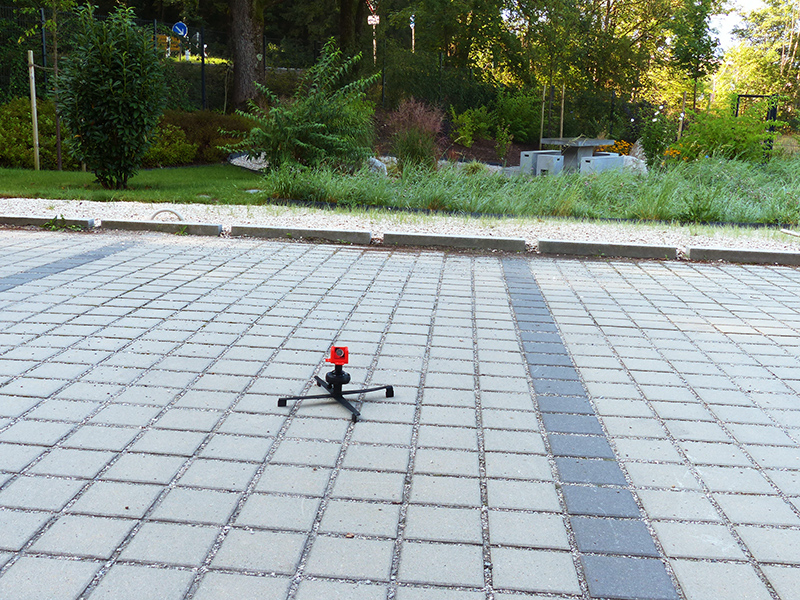

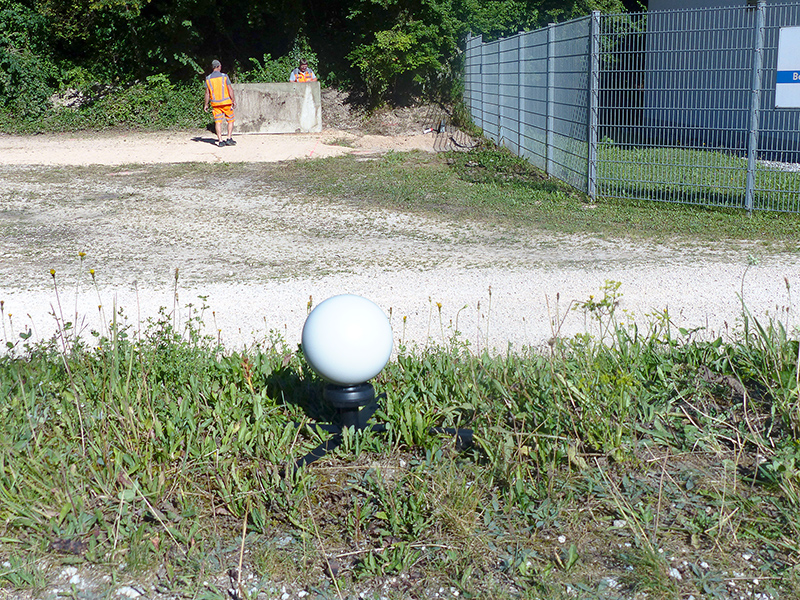

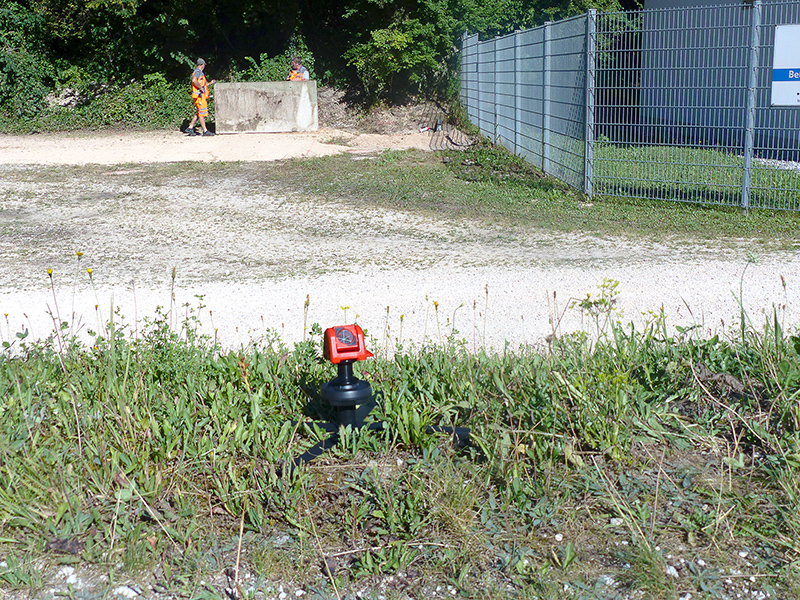

The RSFP-X98-1 floor stand is frequently used for quickly relocating total stations or scanners. Another practical application is use as a temporary solution for reference points – simply unfold, set up, attach the target or prism and you’re done!

A space-saving and versatile accessory that achieves an accuracy of around 1.0 mm to 1.5 mm when handled carefully!

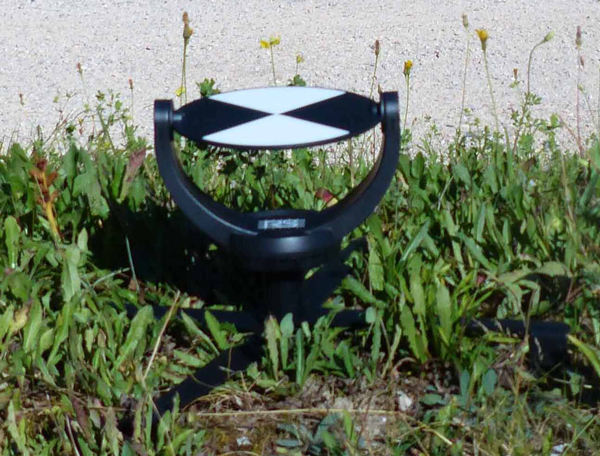

 RSFP-X98-1 with RSL422M

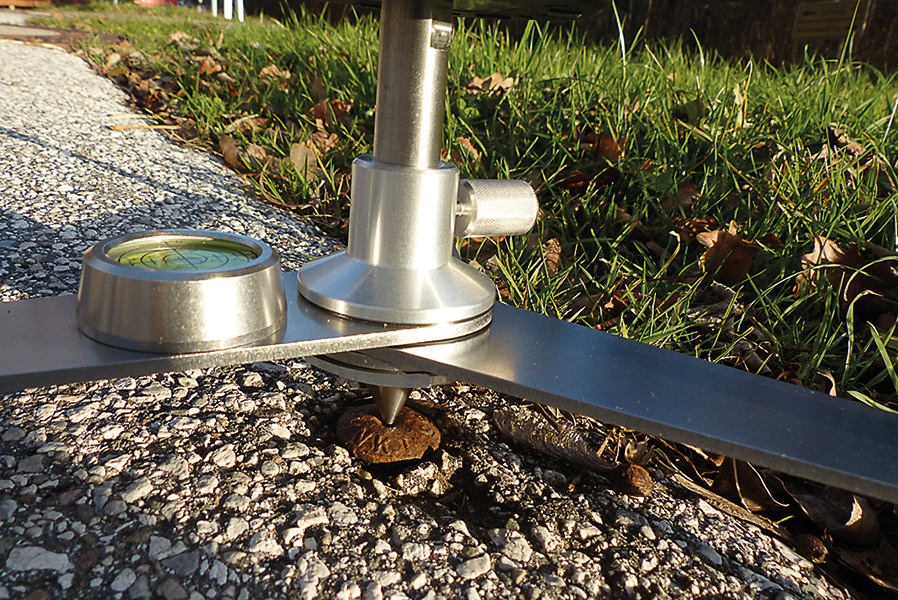

The RSFP-X98-2 floor stand offers additional application options:

  • Can be placed exactly over an existing reference point
  • Can be precisely aligned using a spirit level and screws
  • Also suitable for staking

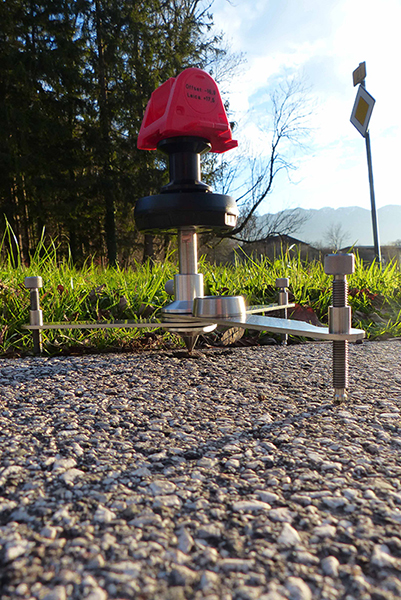

 RSFP-X98-2

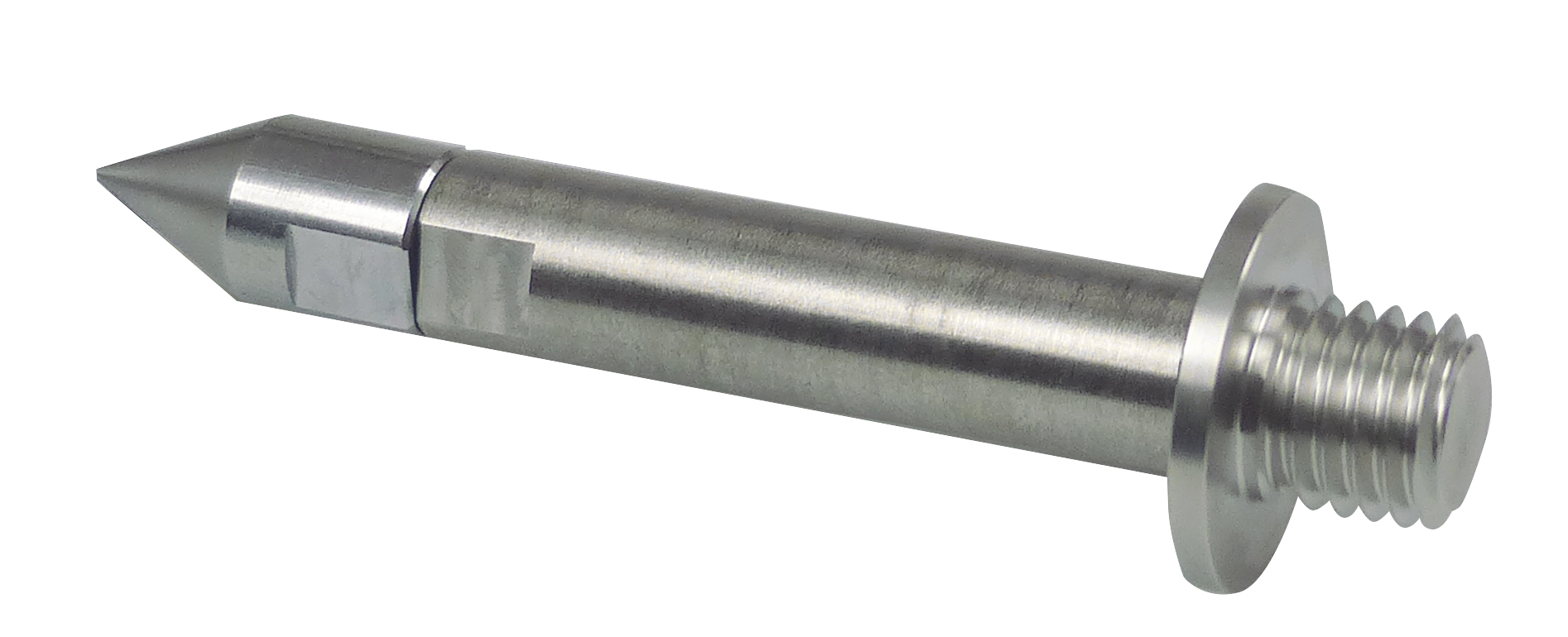

The RSFP-X98-3 is supplied with a 5/8” connector and is therefore also suitable for GNSS and GPS antennas and other accessories with this connector.

A space-saving and versatile accessory that even exceeds the accuracy of the RSFP-X98-1 floor stand when handled carefully.

 RSFP-X98-3 GNSS

The floor stand is also part of our “One reference point for all instruments” system.
It is thus available straightaway for every instrument at any location.
one fixed point for all instruments
The illustration shows all the products that can be used with the RSFP-X98-1+2 fixed point. Magnets in the base plate hold the reflective target or mini prism precisely on the desired spot.

Dimensioning file  Accessories for series RSFP-X90 to RSFP-X99 for download.
Here you find a dimensioning file for each RS product.
