Prisms for track monitoring and steel construction

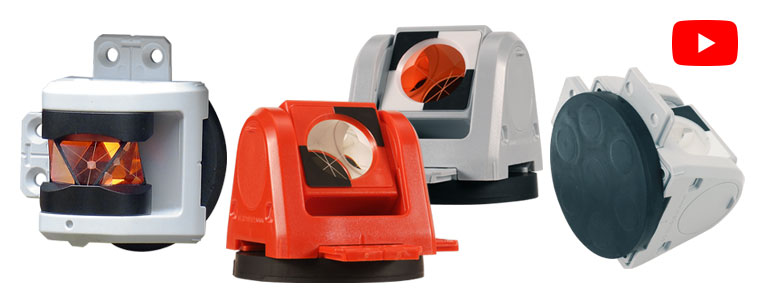

RSMP380M* and RSMP480M* (*magnetic)

Specifically for monitoring tracks and steel constructions, we offer a magnetic version of our mini prisms RSMP380 and RSMP480 220 degree prism.

Advantages:

• No need to use glue
• Uniquely quick installation – even on wet surfaces
• No need to clean the surface
• Option to replace the prism or magnet as needed

The prisms have been tested in all weather conditions and have consistently proven their reliabi­lity thousands of times.
Caution: At temperatures above 80 degrees Celsius (176 degree F), the magnets may lose their adhesive force.
If such high temperatures are possible on the surface in your area of application, we recommend adding a little glue or generally gluing the prisms.

For this reason, we have developed our RSFP-X80 adapter for mounting the prisms using adhesive (e.g. RSMF-FIX). Even with this installation method, the prisms can be used multiple times.

With mini prism RSMP380M, ranges up to 500 m can be achieved in ATR mode, with the RMP480M up to 300 m. The ranges depend on the survey instrument and are influenced by weather and ambient conditions.

RSMP380M* with Ø 25.4 mm mini prism: Offset -16.9 (minus 16.9) [Leica +17.5]RSMP480M* with 220 degree Mini Prism: Offset 0 (null) [Leica +34,4]

Magnet RSMS1062 (including connecting screw) and prism can be ordered separately

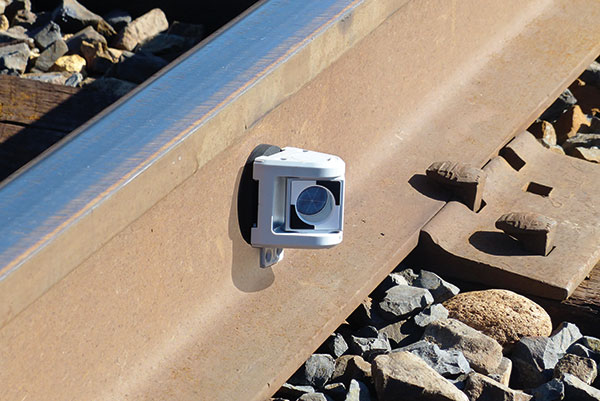

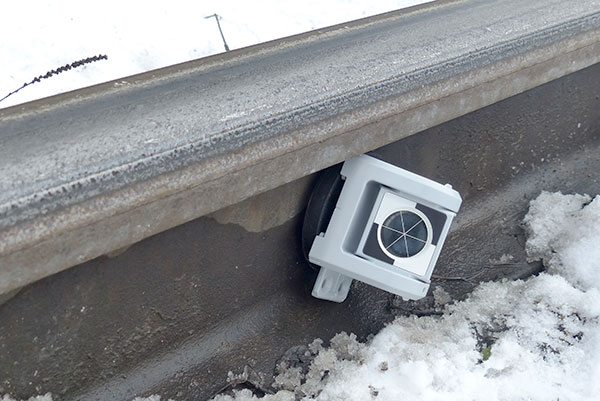

220 degree prism RSMP480M at a track in Germany and the prism RSMP380M at a track in USA
