Reflective Target 30 x 30 mm with tilt function
RS183 and RS183M*
More precision from every direction

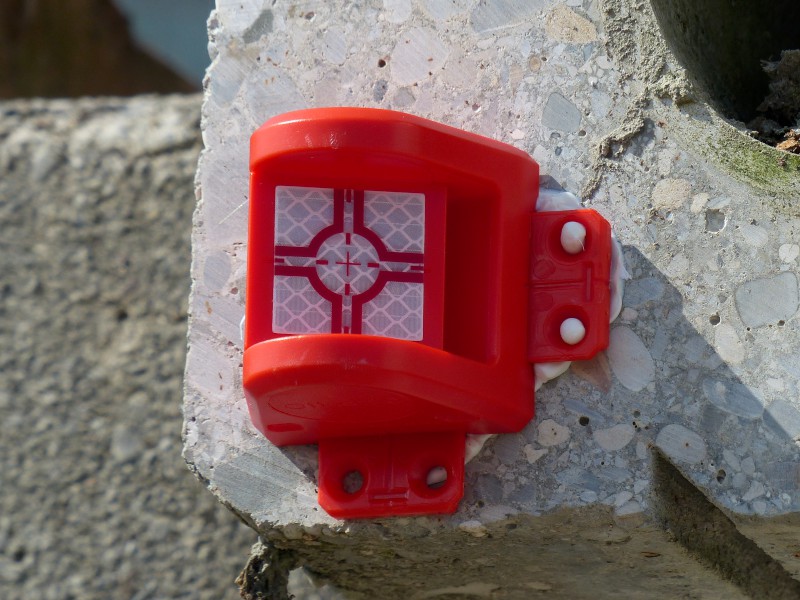

The RS183 reflective target can be precisely aligned with the instrument when using total stations and tilted up to 180 degree, enabling the same survey point to be used from various directions. Combined with the Fixed Point RSFP-X80, the target can be “clicked into position” in two orientations, allowing the survey point to be aimed at from almost any direction.

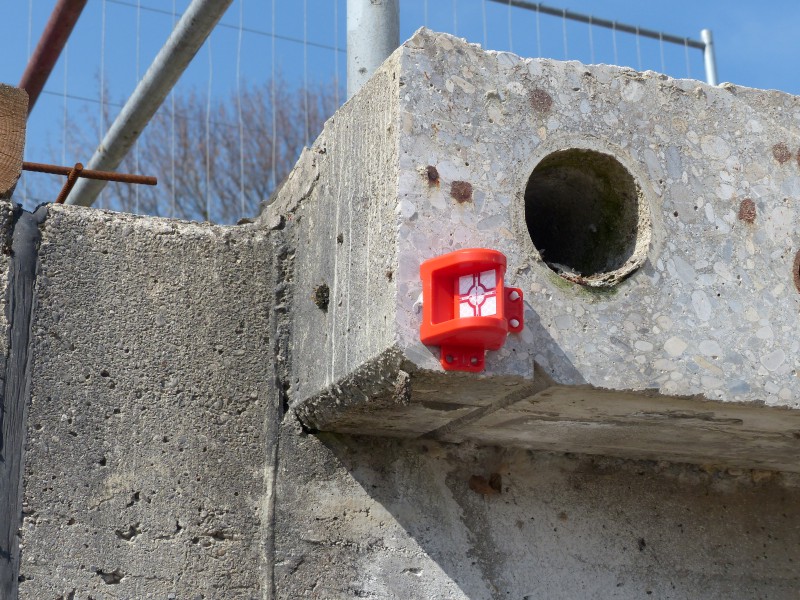

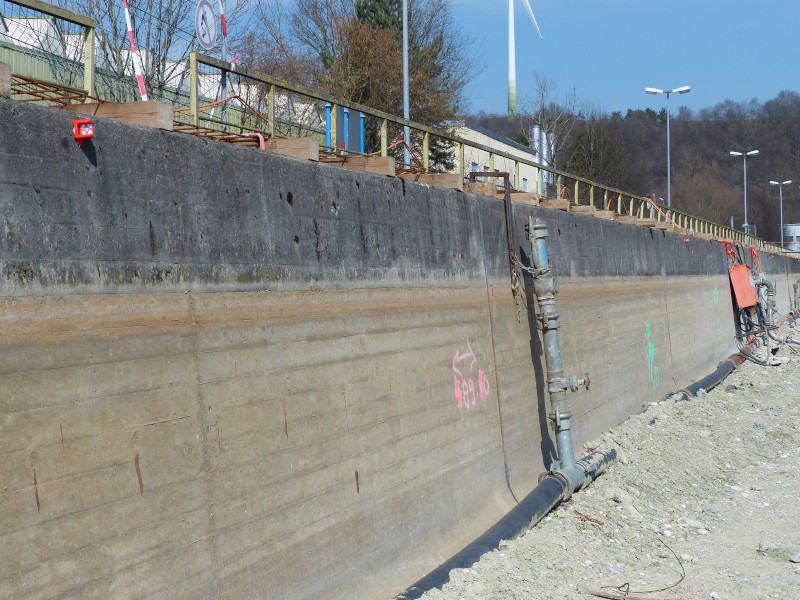

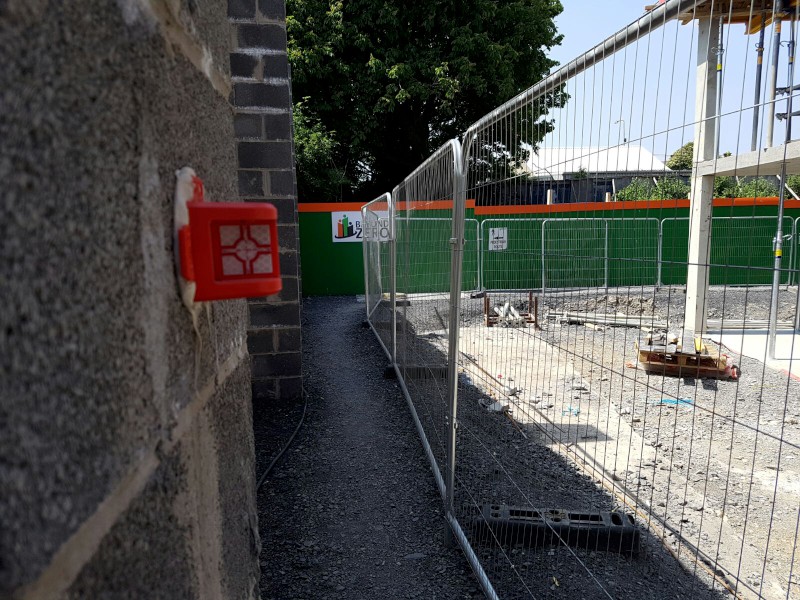

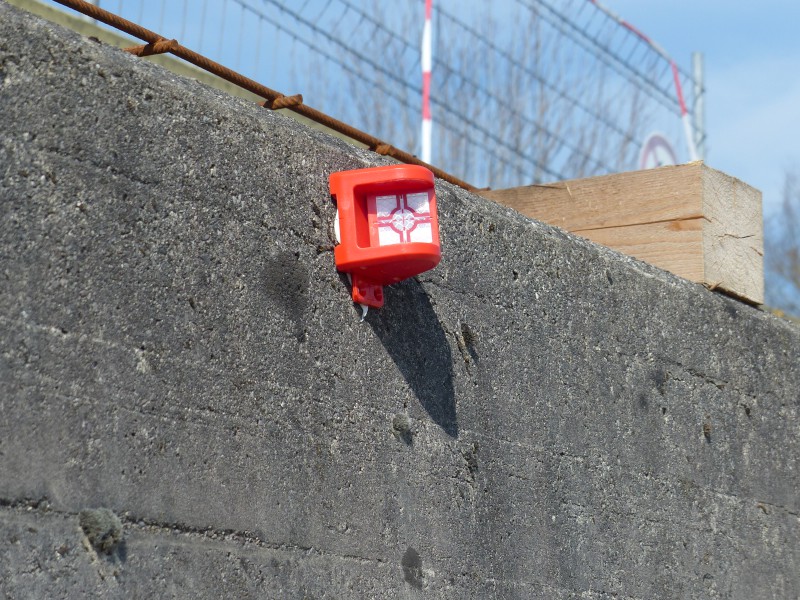

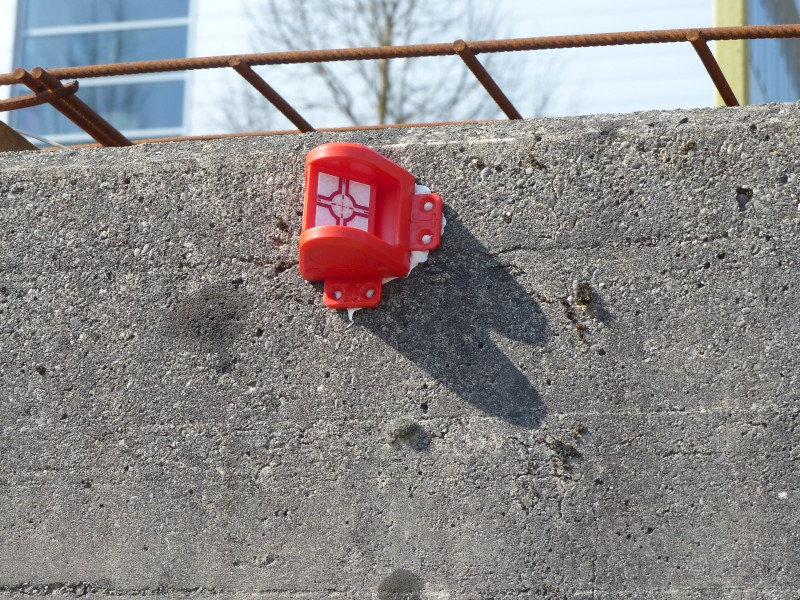

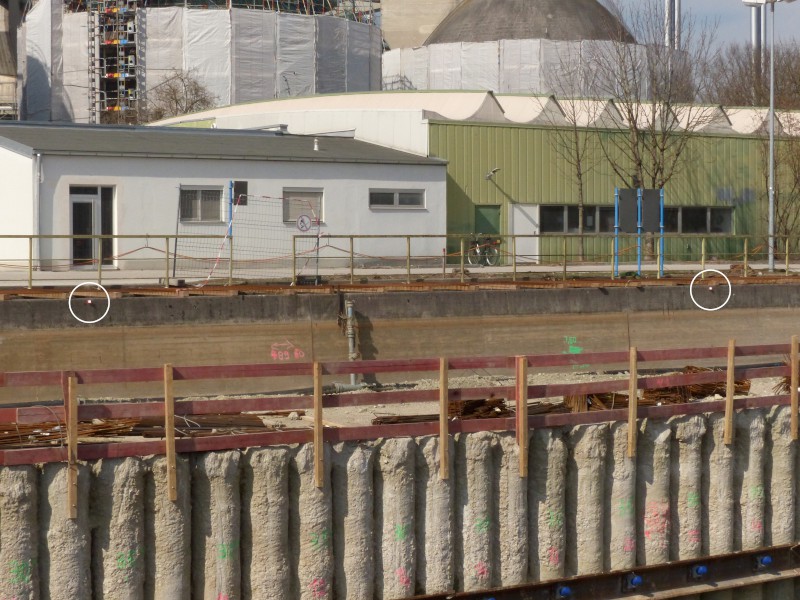

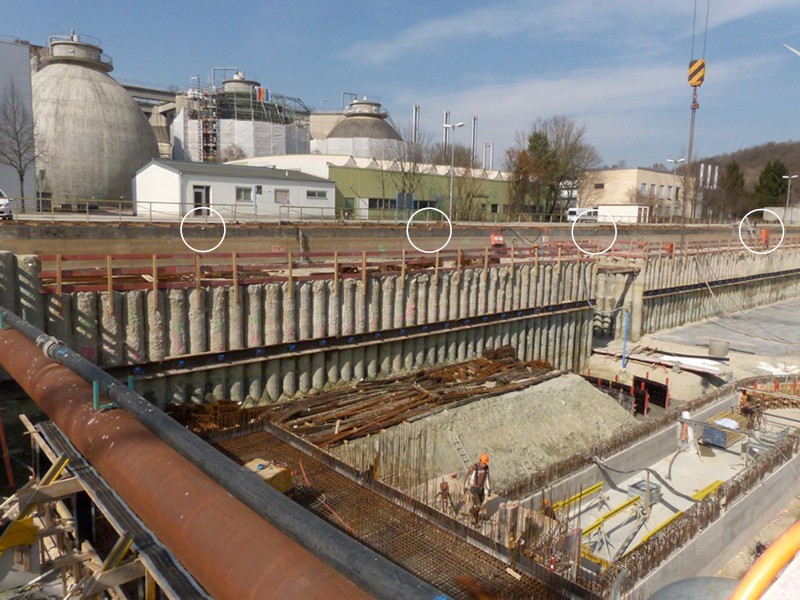

When installed around the construction site prior to the start of work, foremen or surveyors can use the same survey point from the foundation pit to the top floor. As construction advances, the reflective target can be easily adapted to the evolving construction process.
The integrated plug-in system allows multiple targets to be combined, enabling measurements from different directions without having to rotate the reflective targets. The distance between the survey points of the combined targets is always 60 mm.
Installation is quick and easy, even on challenging surfaces, using our mounting adhesive Construction Glue RSMK-FIX.
The RS183M target is supplied with the RSMS1062 magnet and are specially designed for monitoring tracks and steel structures. There is no quicker way of mounting on steel – no need to glue, clean or dry the surface.
![]() |
Range approx. 80 m The ranges are dependent on the device and can be adversely affected by weather and environmental conditions. |
*magnetic
Dimensioning file RS183.pdf and RS183M.pdf for download.
Here you find a dimensioning file for each RS product
