RS193

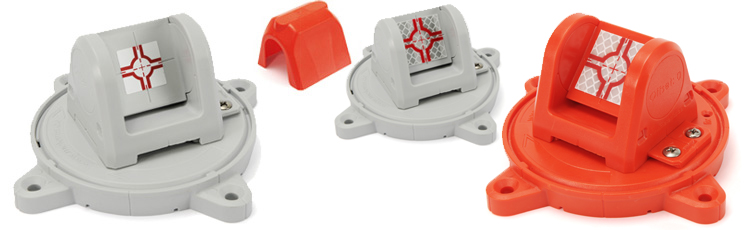

RS192M*, RS193 and RS193M* (*magnetic)

Non-Reflective Target 20 x 20 mm

Reflective Targets 30 x 30 mm

Reflective and non-reflective target which can be rotated through 360° and tilted + magnetic!

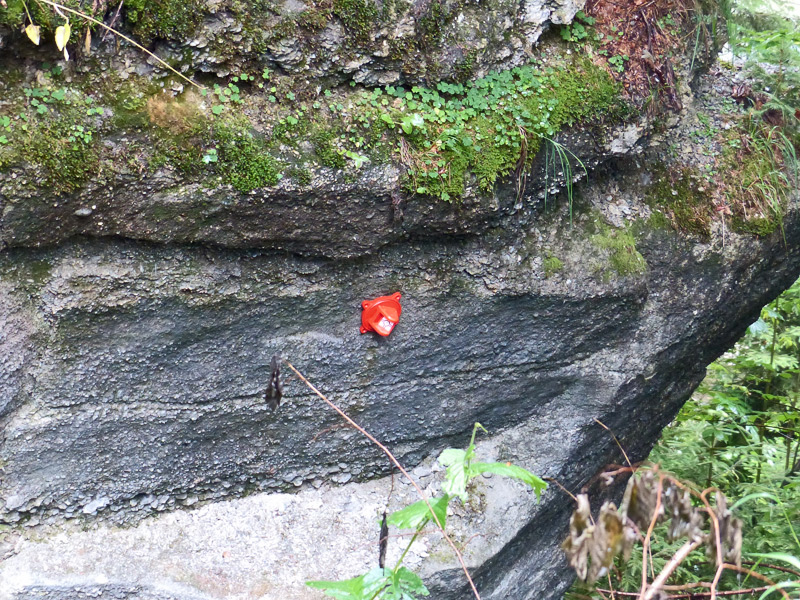

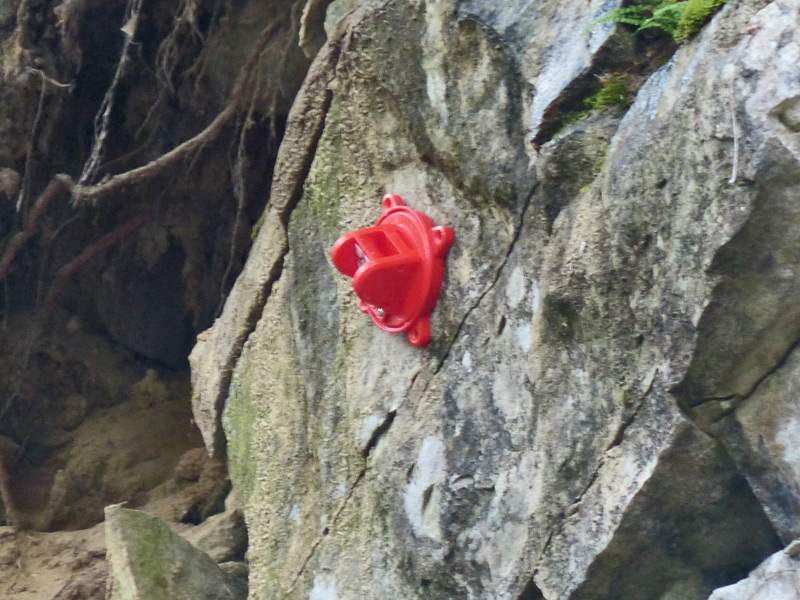

Can be quickly and easily stuck even to difficult surfaces, e.g. glass and marble façades, historic buildings, steel girders, gas and oil pipelines, etc. or can be fixed using plugs and screws. The base plates are also available in a magnetic design for easy fixing to steel fabrications. The following accessories are offered for both products (see right):
Fixed point (Item RSFP-X90) for magnetic version
Protective cap with or without magnetism (RSPC20 and RSPC20M)

The non-reflective target marks RS192M

are used for positioning the following devices:

  • Leica 3D Disto
  • Geomax Zoom 3D
  • Flexijet 3D

With the magnetic target RS192M you can, in addition, use the fixed point RSFP-X90.

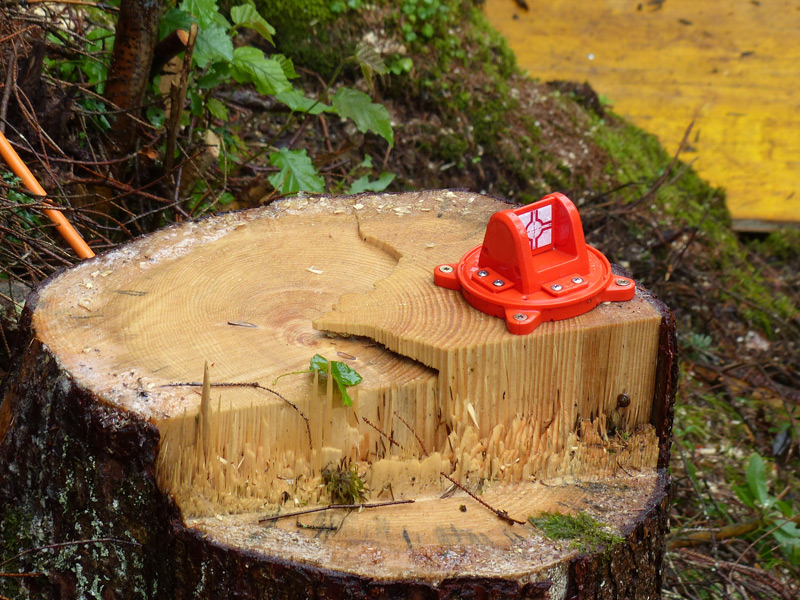

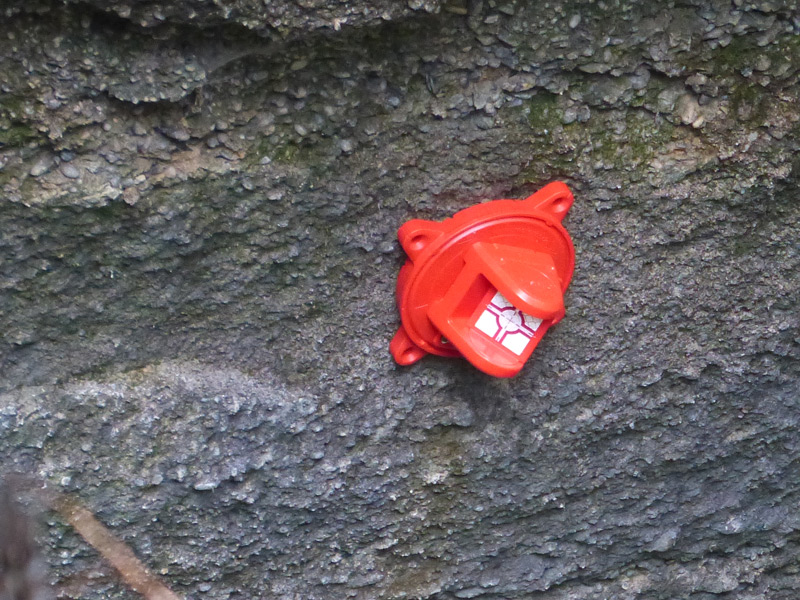

The reflective targets RS193 and RS193M

When using tachometers and robotic total stations

  • the reflective target can always be aligned accurately with the measuring instrument
  • the reflective target can be turned in a radius of 360° making it possible to use the same survey point from all directions
  • when using the fixed point RSFP-X90, the targets can be removed and later replaced on the same survey point
  • when using the protective cap RSPC20 and RSPC20M, the reflective targets can be protected against dirt
Range approx. 80 meters
offset: 0
Tilting axis height: 45 mm The ranges are dependent on the device and can be adversely affected
by weather and environmental conditions.

We recommend the use of the magnetic version (RS193M). With this version you can, in addition, use the fixed point RSFP-X90.


Dimensioning file RS192 and RS193.pdf for download.
Here you find a dimensioning file for each RS product
