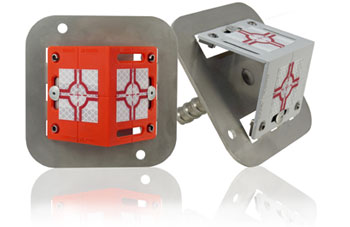

Adapter RSAM80 & RSAMG80

Metal Adapter in stainless steel

RSAM80 & RSAMG80

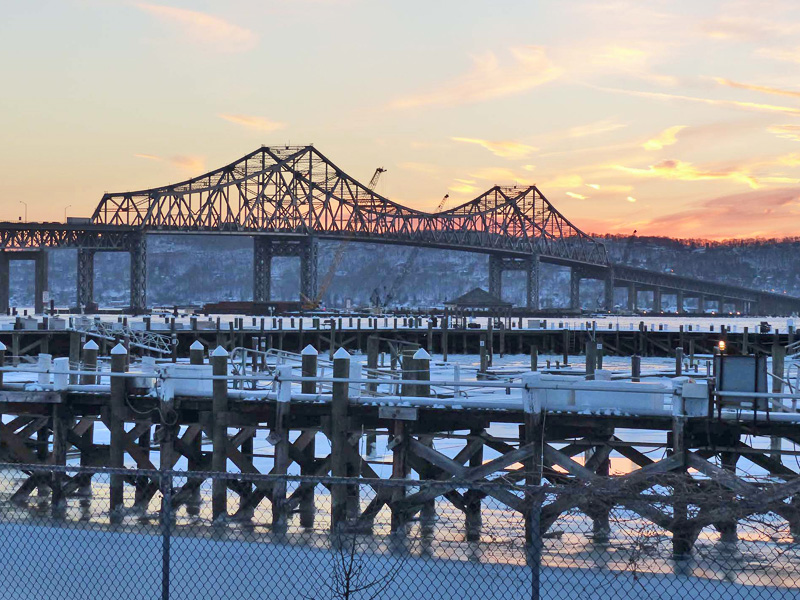

  • Bridge construction and bridge monitoring
  • Tunnel construction

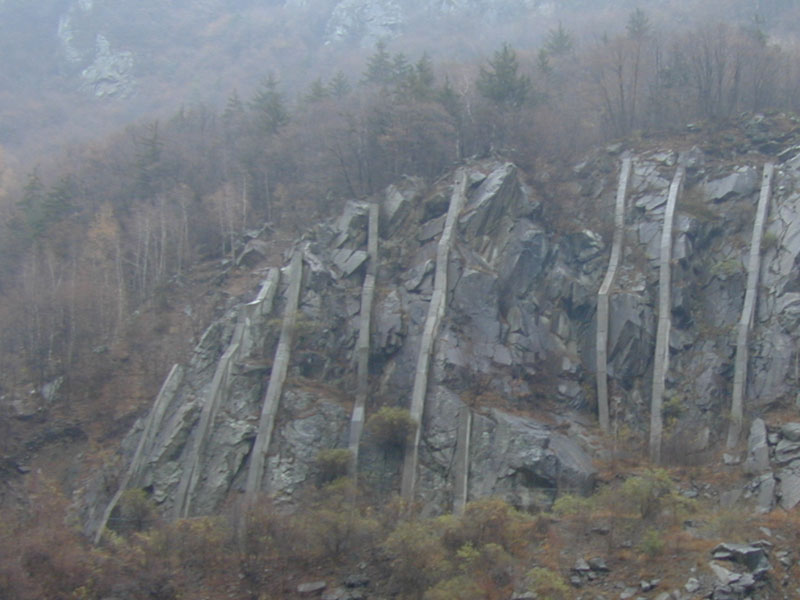

  • Earth and rock monitoring – e.g. steeply upwards or along the slope
  • Enables measurements and monitoring from virtually any angle, where space is tight and on hard-to-reach areas
  • The clip system allows the original measurement point to be restored both quickly and cheaply in the event of damage.
  • Many measurements can be carried out within a short time when used with up-to-date total stations.

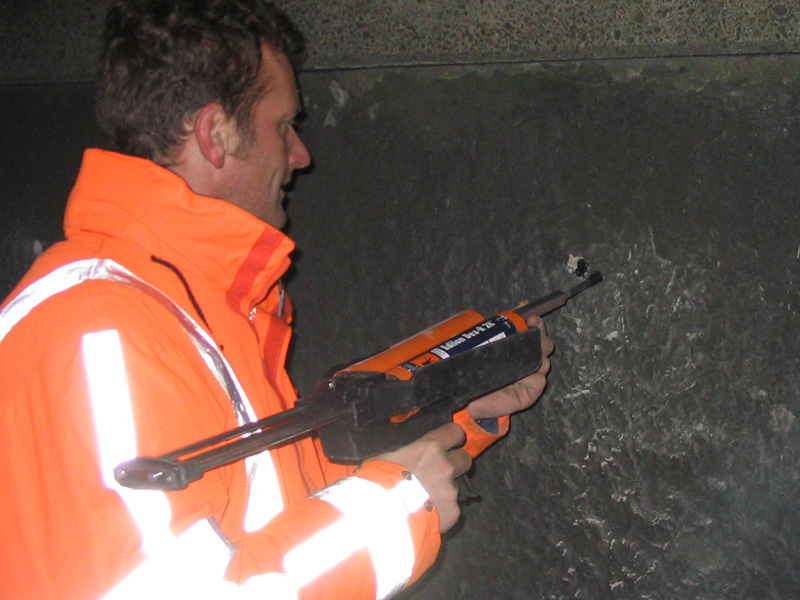

  • Drilling is no longer required as pre-installed anchor sleeves for Dw15 threads can be used for mounting

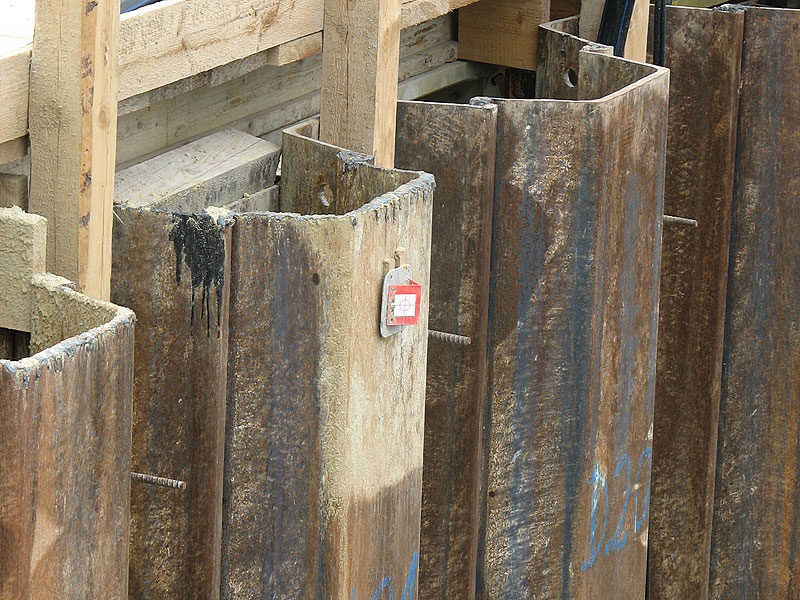

  • Anchor sleeves can be installed during the construction phase for survey points, e.g. above and below the bridge support, in the case of retaining structures and in many more applications.
  • Temperature and UV-resistant

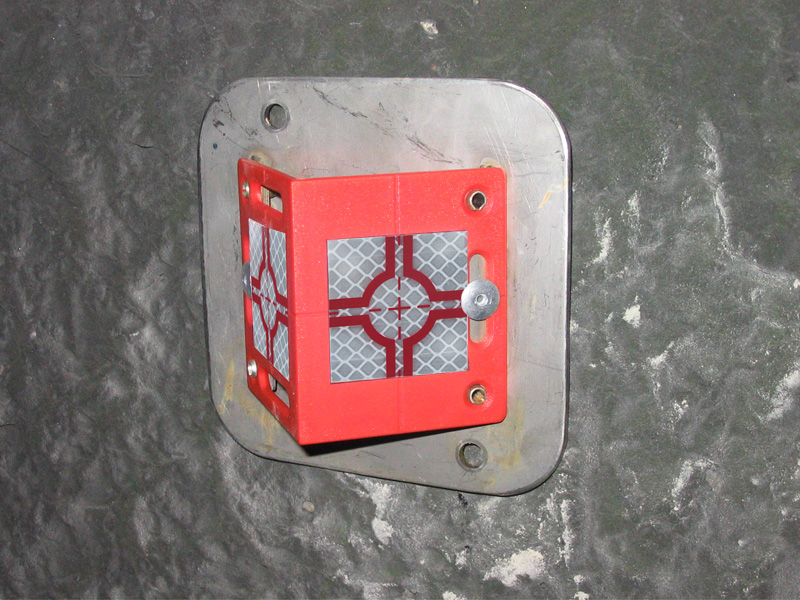

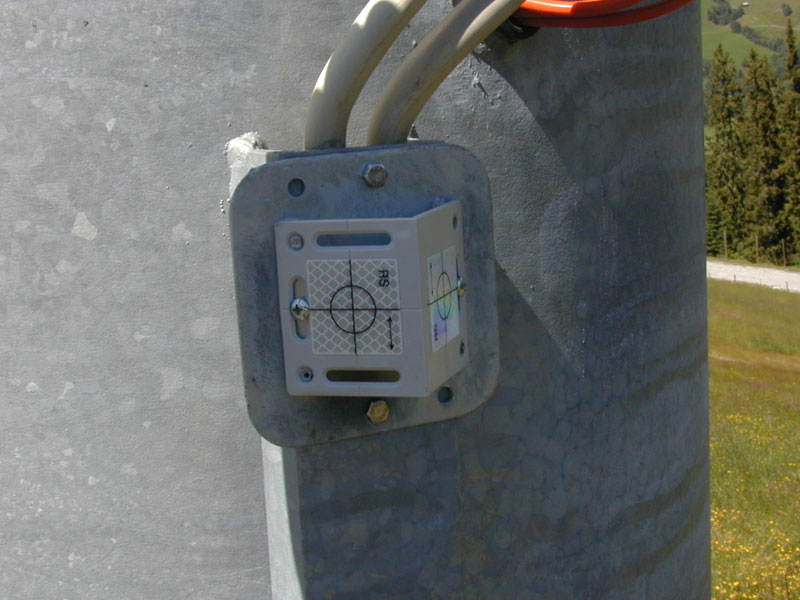

  • Crosshairs are imprinted on the backing plate under the exact centre of the reflective target to ensure the survey point is durably marked. If the reflective target is damaged at any point, it can easily be replaced and the original survey point can be re-established quickly, easily and inexpensively.
  • The ranges are dependent on the device and can be adversely affected by weather and environmental conditions. Please note: Survey markers with reflective targets are exclusively recommended for carrying out distance measurements using a tachymeter or total station.

Dimensioning file RSAM80 and RSAMG80.pdf for download.
Here you find a dimensioning file for each RS product
