Fixed Point RSFP-X80

For all instruments the same reference point!

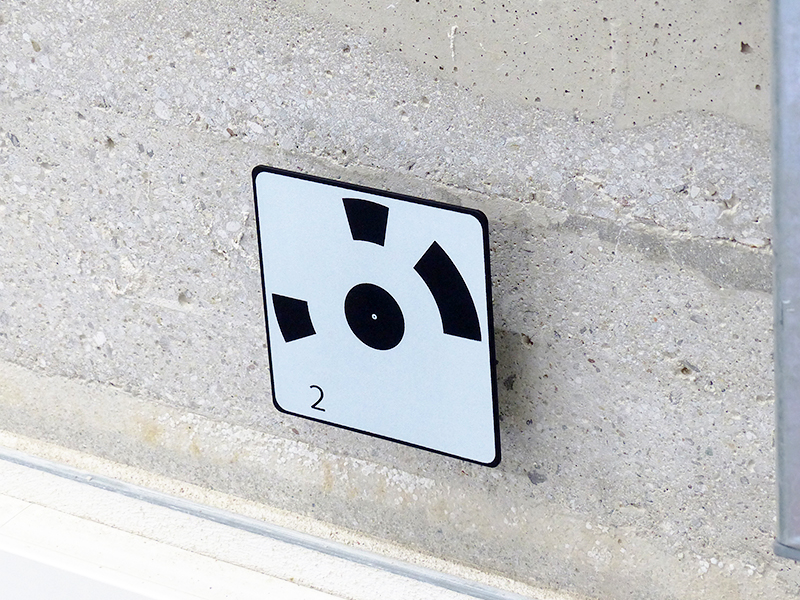

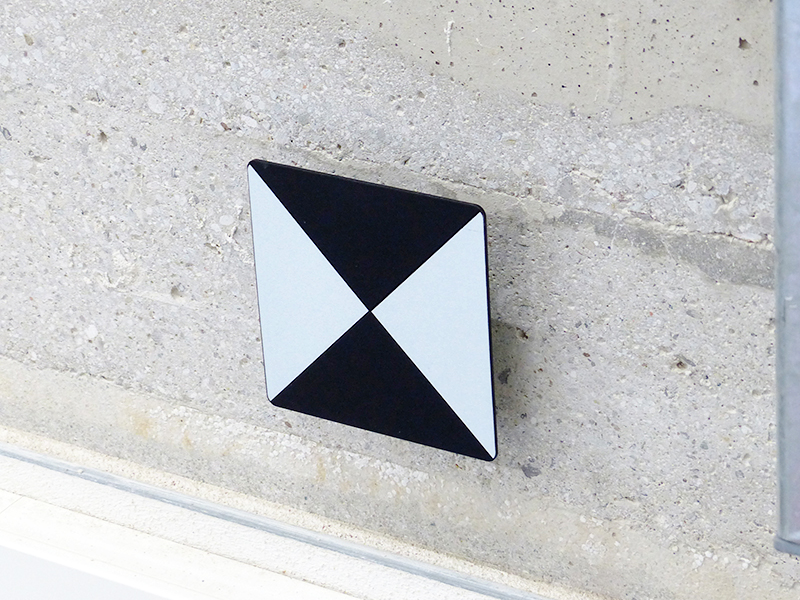

Fixed Point for RS183, RSMP280, RSMP380, RSL-X80, RSL580

Using the correct offset, the surveyor always obtains the same survey point or the same XYZ coordinates. The fixed point can be glued to all usual surfaces. For ease and speed of mounting, we recommend RSMK-FIX construction glue.

When aligning the prisms or reflective targets in different directions the survey point remains the same. Use in almost any direction is thus assured.

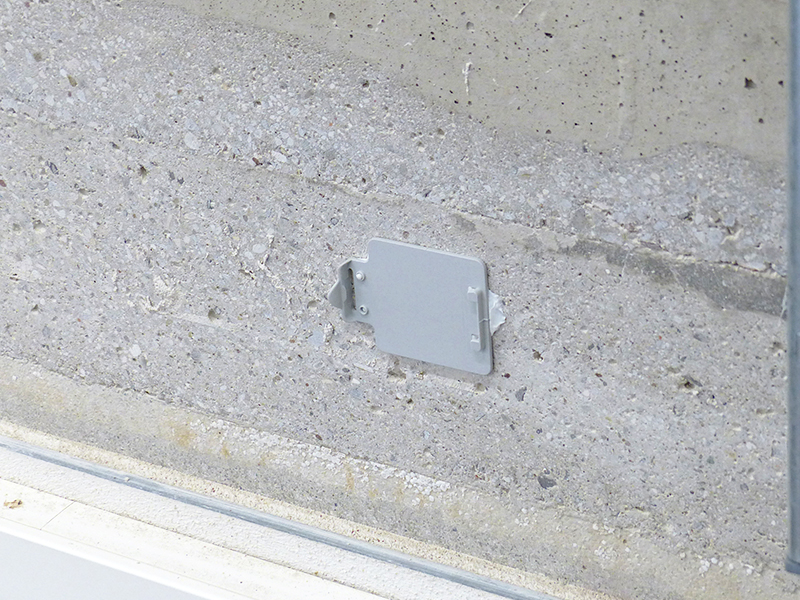

This product is especially popular for monitoring on tracks. When all the work has been completed, the prism can be easily and quickly removed from the plate. All that remains is the low-cost fixed point RSFP-X80.

Additional advantages:

  • Depending on the instruments, accuracies of ±1 mm are possible
  • With the mounting plate RSFP-X80, various products can be fixed well and quickly. At the end of the survey, only the low-cost mounting plate (resumption point) remains on the object as a reference point
  • On building sites, the mounting plate RSFP-X80 is used as a reference point.

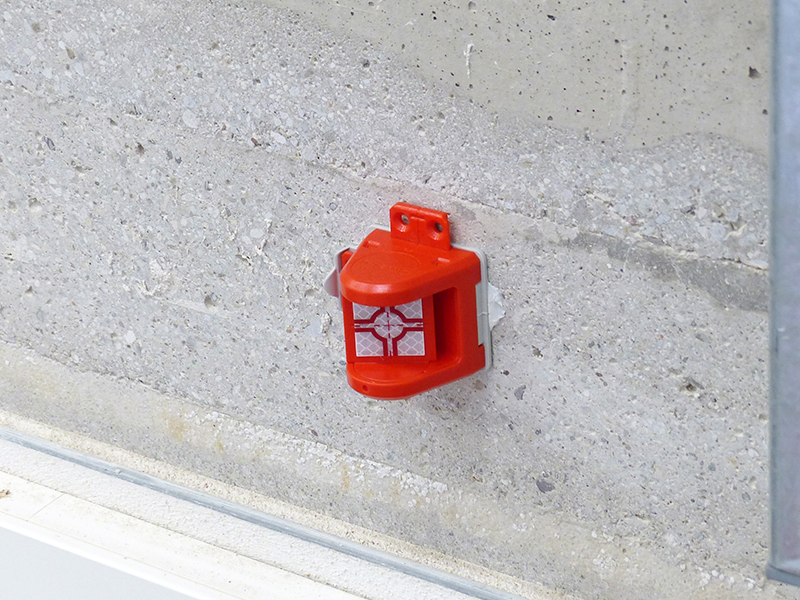

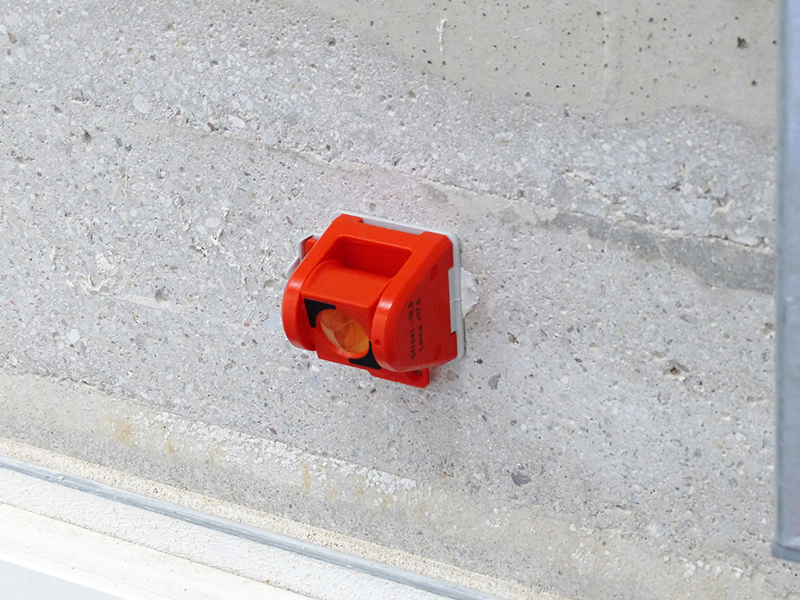

  • When using the reflective target RS183 or the mini prism RSMP380, these can be changed from horizontal to vertical orientation and vice versa. This permits surveying from almost anywhere on a 360° circle using the same measuring point.

Fixed Point System RSFP-X80

Fixpunktsystem RSFP-X80

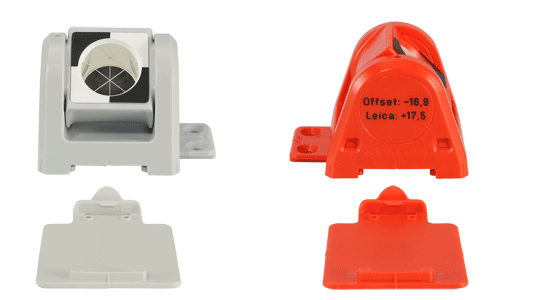

The illustration shows all the products that can be used with the RSFP-X80 fixed point.

Dimensioning file Accessories for download.
Here you find a dimensioning file for each RS product.
