Magnets

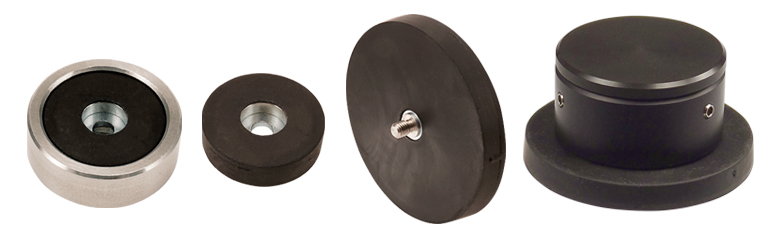

RSMS1033 magnet pot, RSMS1062 magnet and RSMS-X80 magnet pot set

for X80 targets and prisms

The products of the reference point series with magnetic pot RSMS1033 are ideal for surveying in steel construction, on ships or for calibrating excavator controls. The magnet is placed over the survey point by means of a cavity in the center. Then the target or prism is simply placed on the pot magnet and aligned with the measuring instrument – and you’re done! A fixed point can also be created very quickly.

Replacement magnets (RSM1030) are available as accessories.

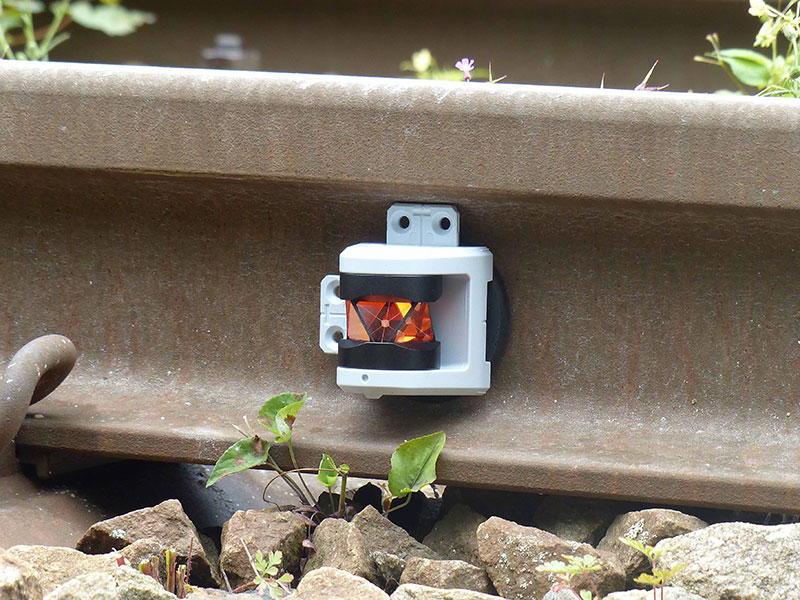

The RS183M target and the  RSMP380M and RSMP480M prisms are supplied with the RSMS1062 magnet and are specially designed for monitoring tracks and steel structures. There is no quicker way of mounting on steel – no need to glue, clean or dry the surface.

Replacement magnets (RSM1062) are available as accessories.

In the Reference Point Series with the RSMS-X80 magnet pot set, the magnet itself serves as the reference point. Prisms and targets can be rotated in any direction and easily attached or removed. After removing the prisms or targets, the magnet with the magnetic pot remains as the reference point and can be reliably protected from dirt with the protective cap RSPC-X80.

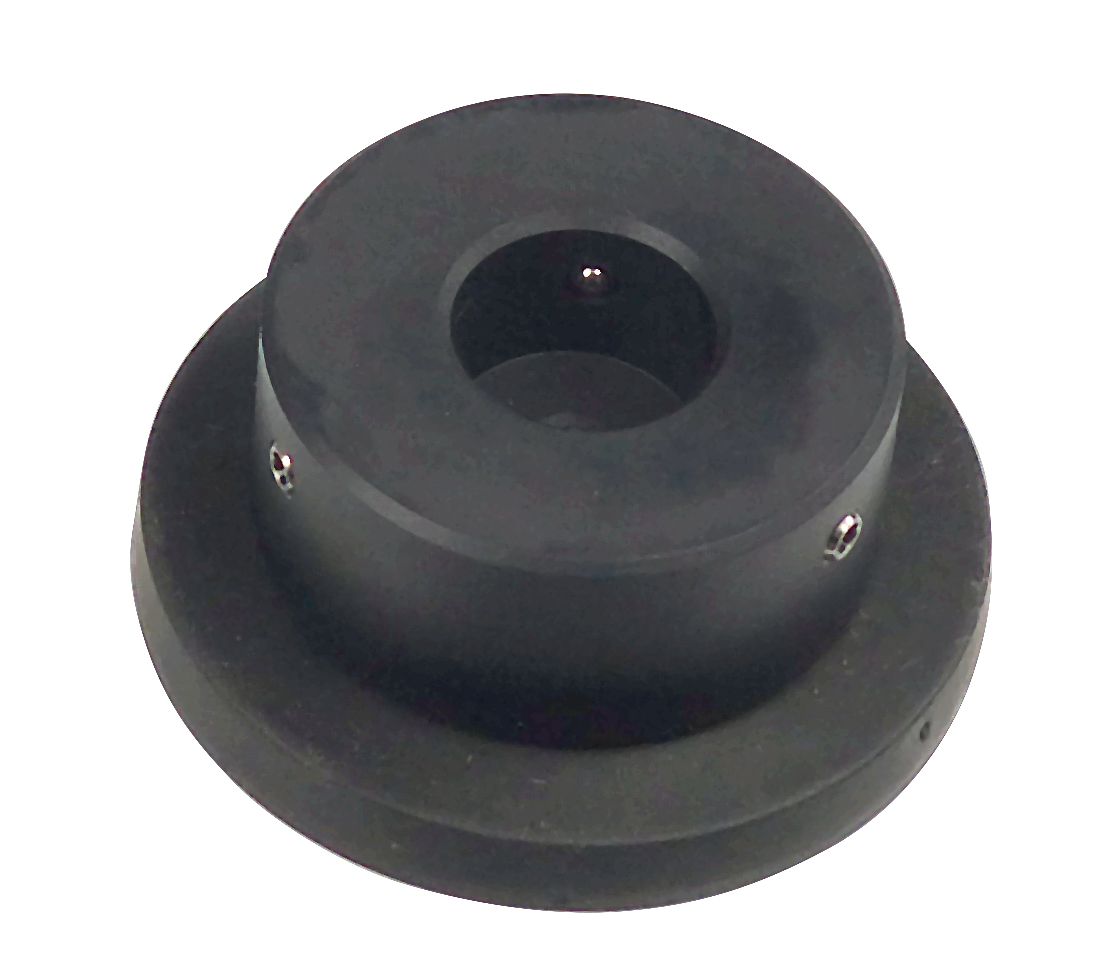

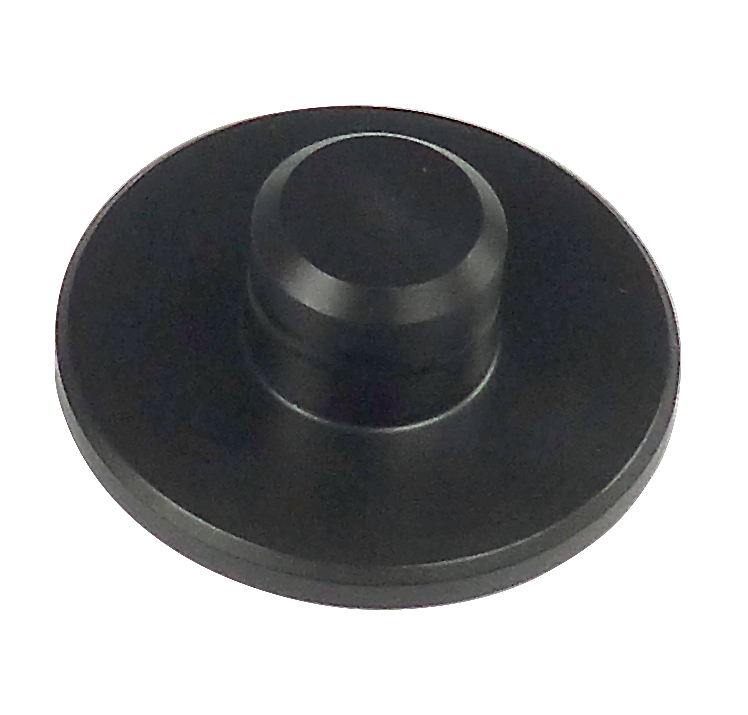

Magnet pot RSMS-X80	Protective cap RSPC-X80

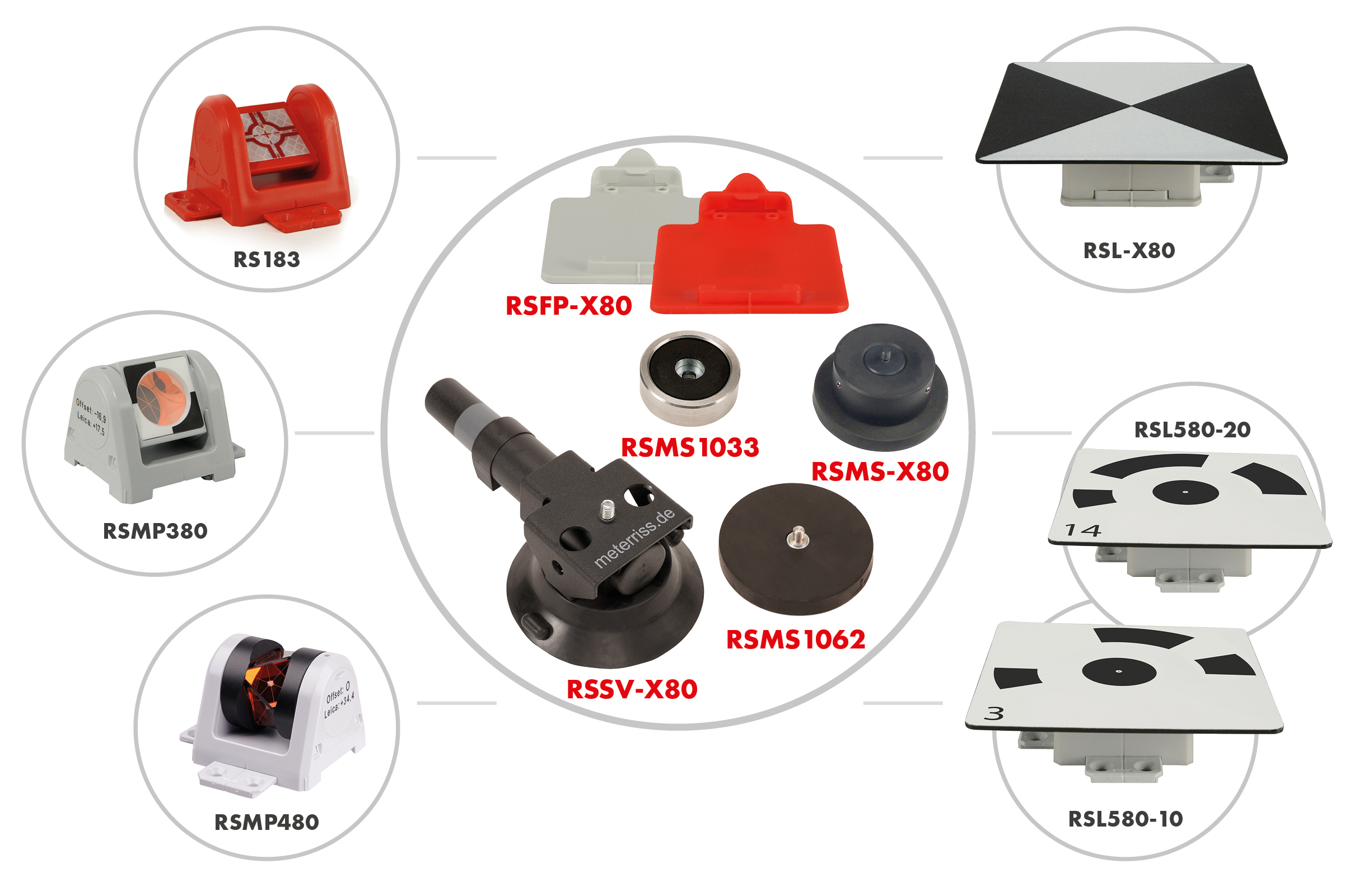

The illustration shows all the products that can be used with the magnetic accessory RSMS1033 and RSMS1062.
