Mini Prisms with tilt function RSMP280 and RSMP380C/S

Mini Prisms with tilt function

RSMP280 and RSMP380

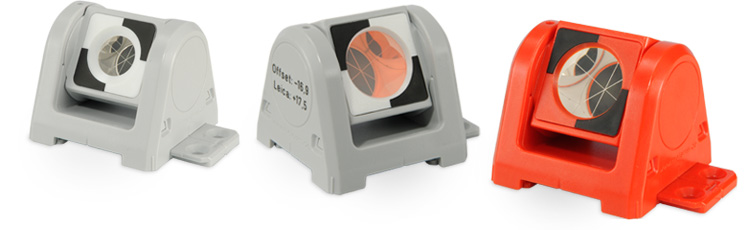

Mini prism RSMP280 with silver coated Ø 17.5 mm prism, tilting and combinable

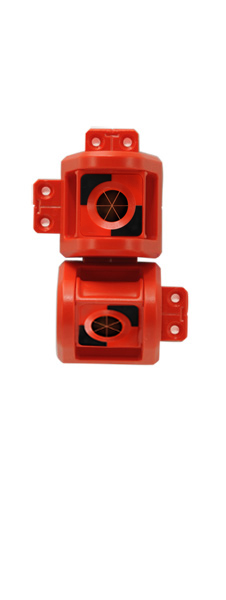

Mini prism RSMP380 with with silver or copper coated Ø 25.4 mm prism, tilting and combinable

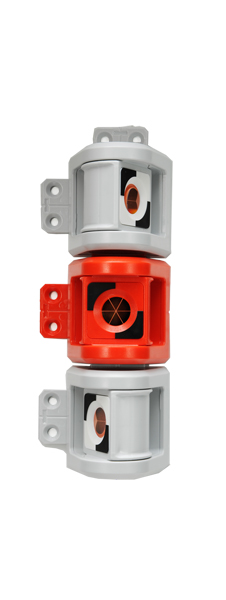

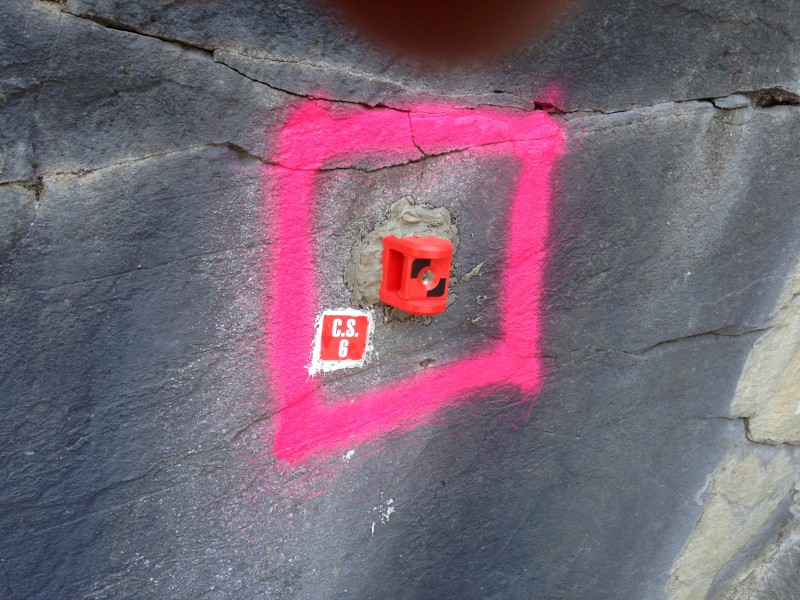

When using these mini prisms, the measuring points can always be exactly aligned with the measuring instrument and turned through 180 degree. This enables the same survey point to be used from different directions. Bridges, façades and lots of other objects can thus be monitored more quickly and precisely. The integral plug-in system enables prisms to be combined with one another, permitting surveying from different directions without needing to rotate the prism.

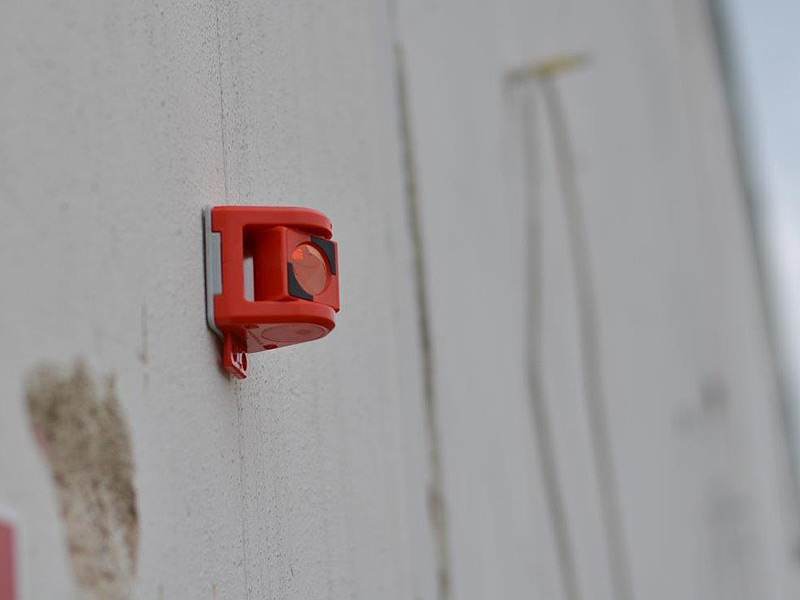

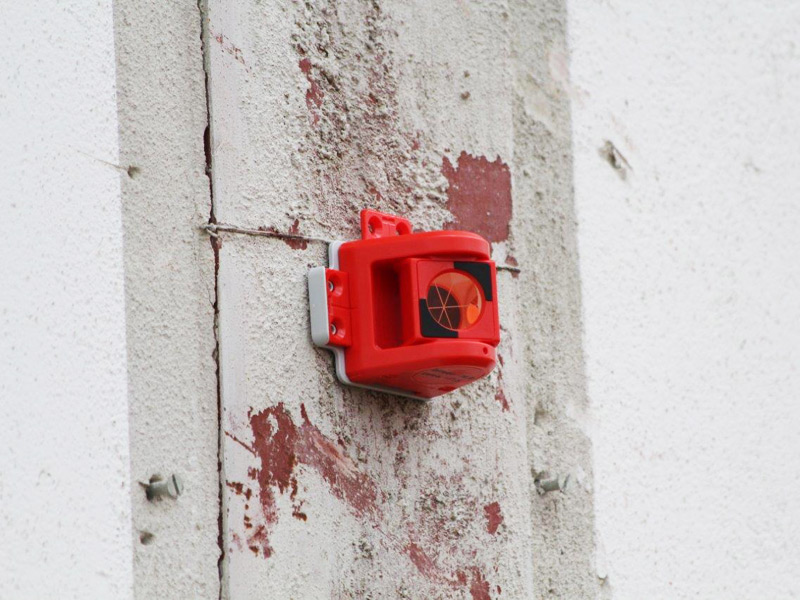

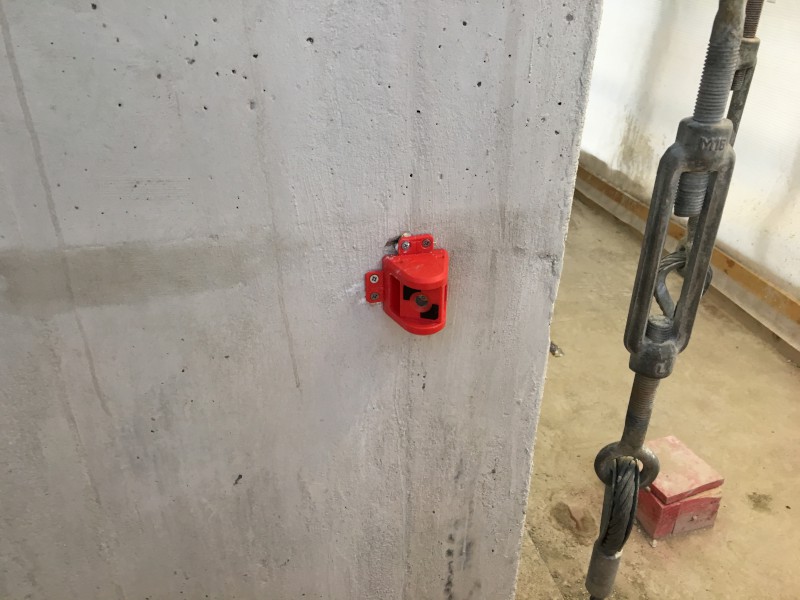

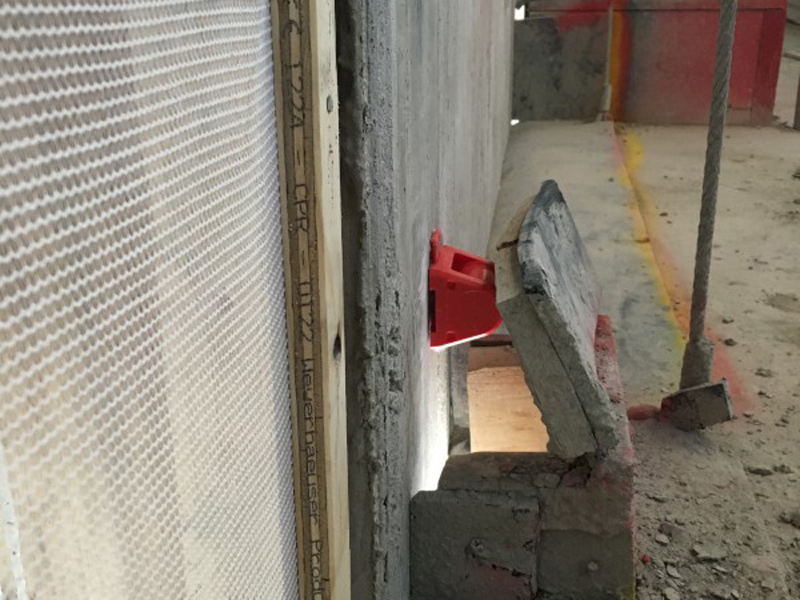

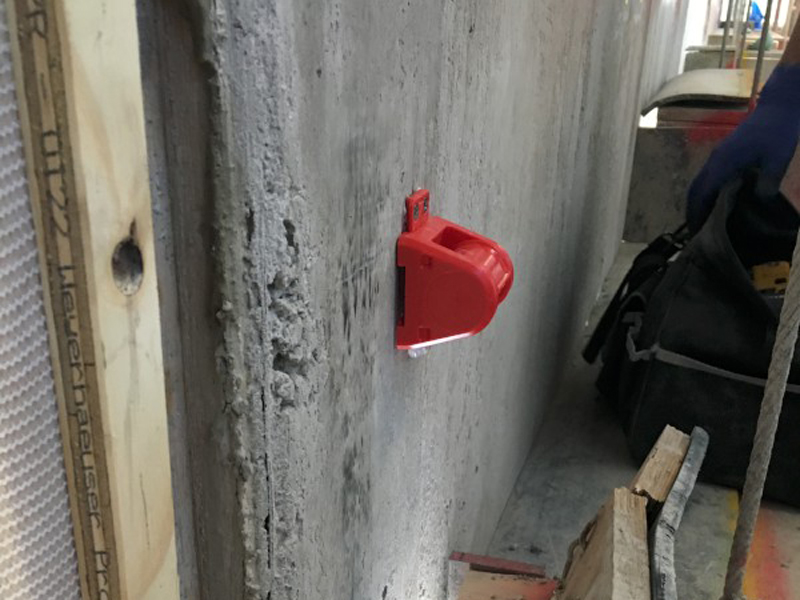

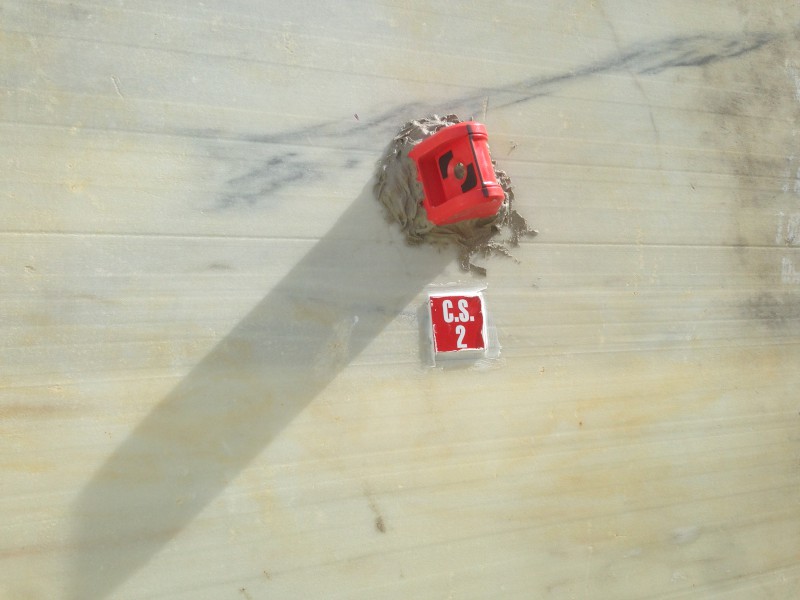

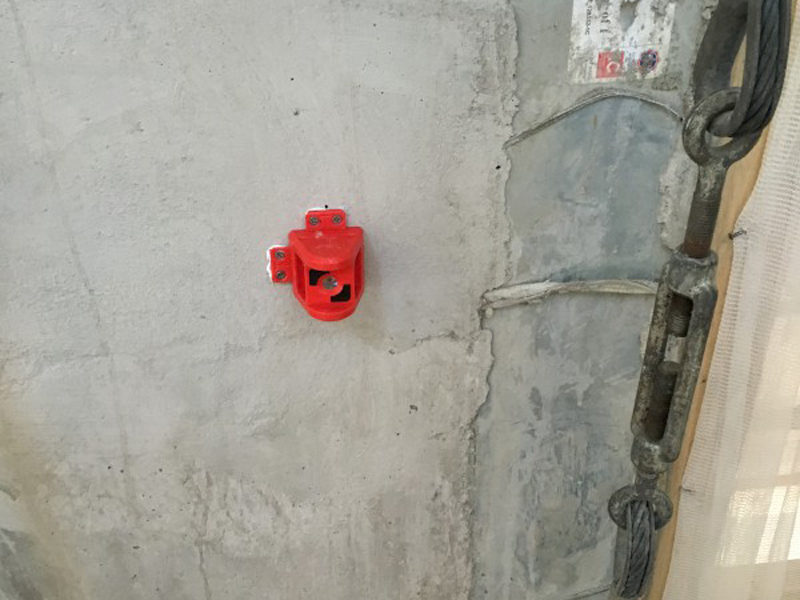

Using the mounting plate RSFP-X80, you can easily fix the prisms, even on difficult surfaces, by means of our RSMK-FIX mounting adhesive. After completion of the survey, they can be removed quickly and easily and, if need be, re-affixed.
The mounting plate RSFP-X80is designed in a way so that the prisms can be clipped in – exactly centered – in two directions. The same survey point can thus be used from almost all directions.

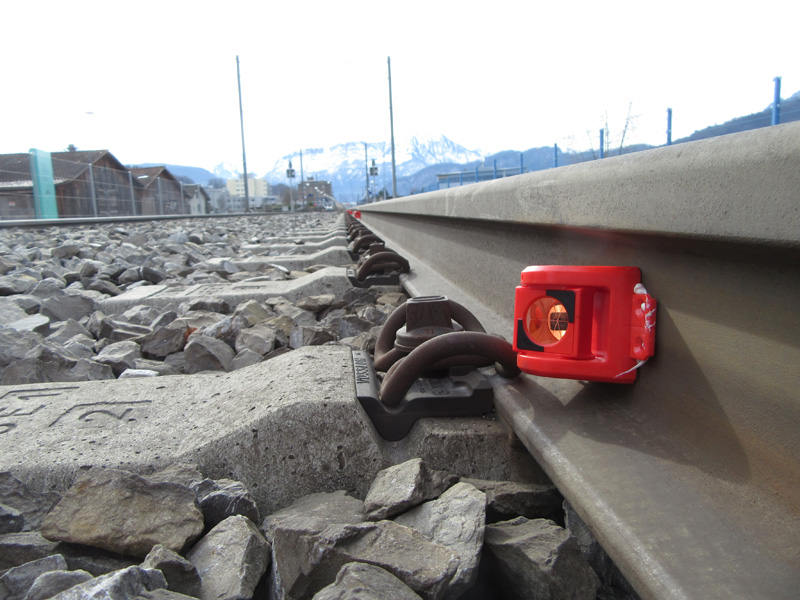

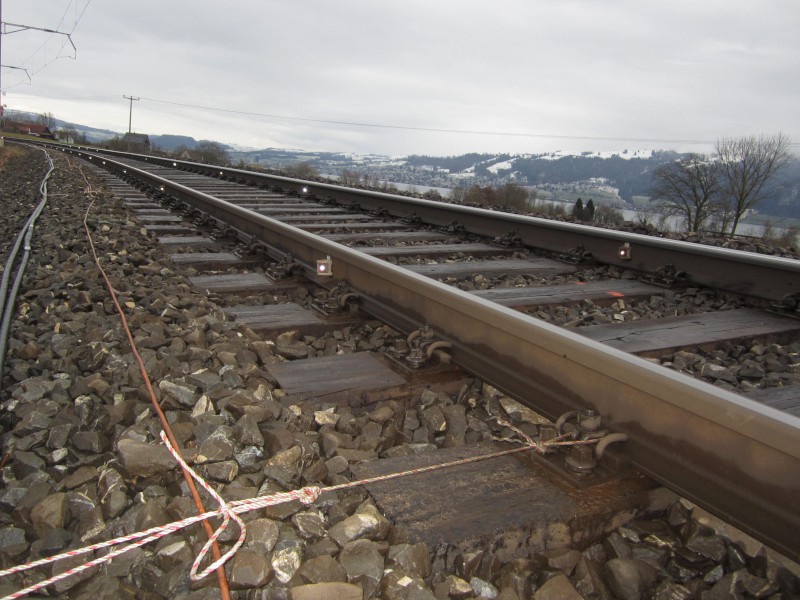

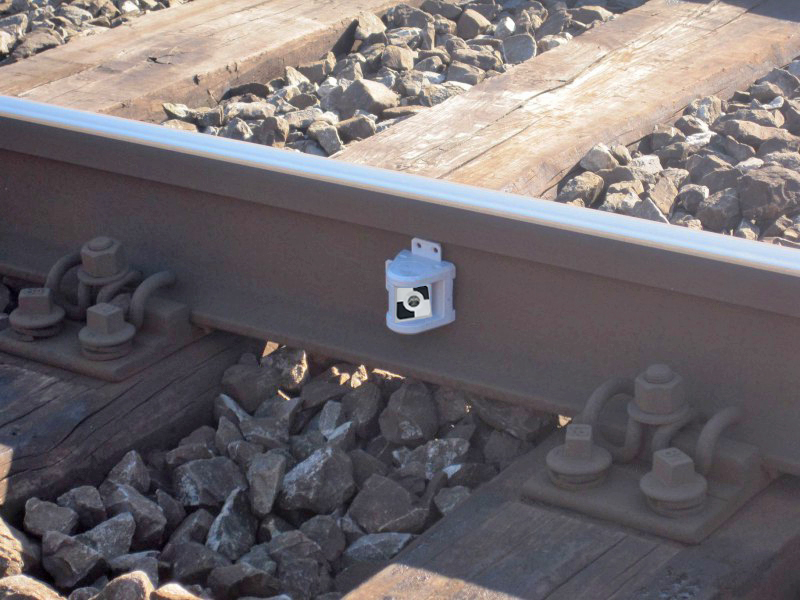

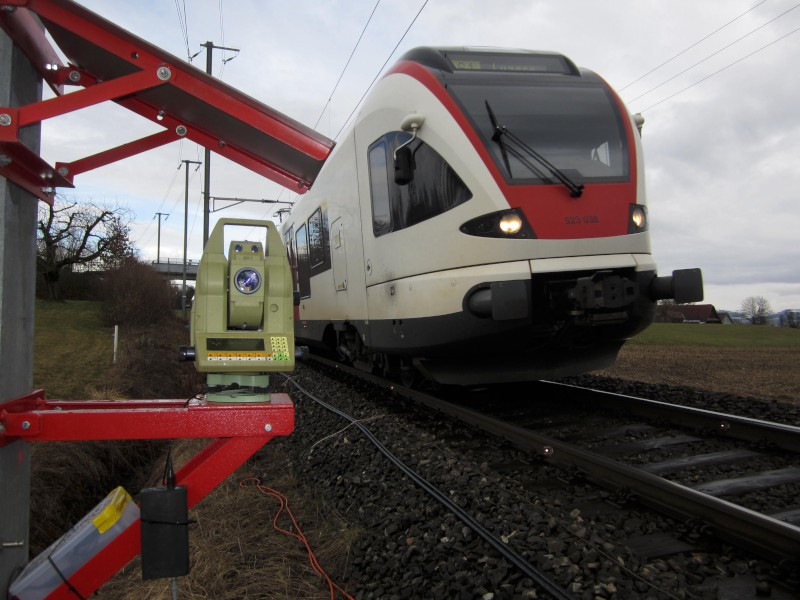

If the mounting plate RSFP-X80 is used in high-vibration environments (e.g. if mounted on railway tracks), the prisms can be secured to the mounting plate with small screws.
If necessary, fastening them with screws is also possible.

RSMP380 can be turned through 180 degree

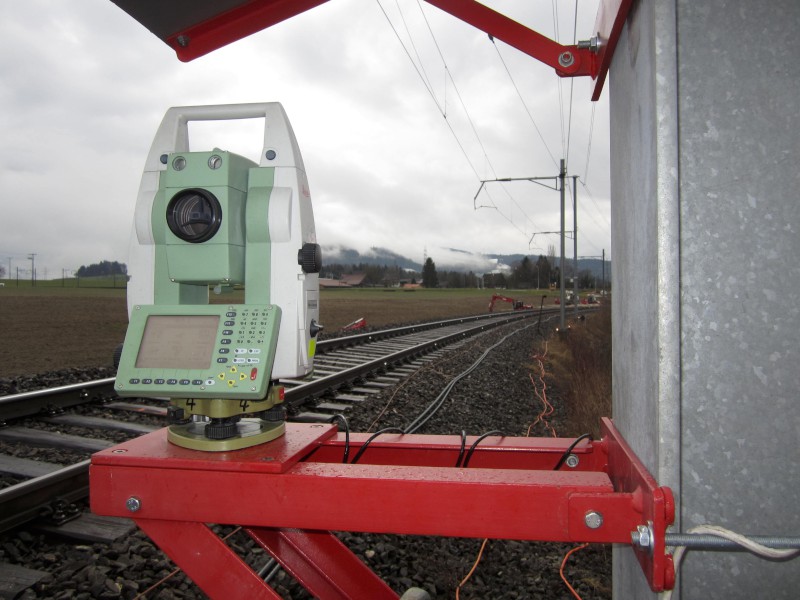

With mini prism RSMP380, ranges up to 600 m can be achieved in ATR mode, with mini prism RSMP280 up to 500m.

The ranges depend on the survey instrument and are influenced by weather and ambient conditions.

RSMP280 with 17.5 mm mini prism: offset: -11.0 (minus 11) [Leica +23.4], tilting axis height: 30 mm
RSMP380 with 25.4 mm mini prism: offset: -16.9 (minus 16.9) [Leica + 17.5], tilting axis height: 30 mm

Suitable accessories for the RS mini prisms
protection cap for RS mini prisms

Protection Cap RSPC20/RSPC20M

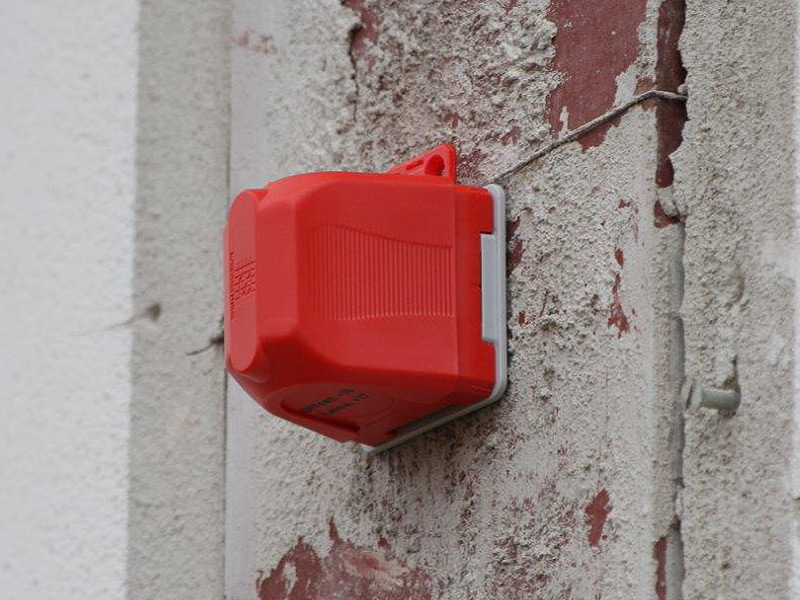

Plastic cover RSPC20 protects prisms/reflective targets against dirt.

Magnetic protection cap RSPC20M is available for hard to reach points, on tunnel roofs for example.
Metal Cube RSPC50 with 5/8" thread

Metal Cube RSPC50 with 5/8" thread

With the metal cube RSPC50 - screwed onto a prism rod - makes it easy to remove and replace the magnetic protective cap RSPC20M from the plastic housing – even in difficult positions.
RS Construction Glue RSMK-FIX with high grap Construction Glue with high grap
  • Powerful construction glue with immediate initial adhesion.
  • Free from isocyanate and silicone.
  • Permanently elastic and suitable for a wide range of uses.
  • Odourless.
  • RSMK-fix is suitable for all products by Rothbucher Systems.
  • Can be applied using all common dosing pistols.


Dimensioning file RSMP280 and RSMP380.pdf for download.
Here you find a dimensioning file for each RS product
