Stake Out Aids

RS95

RS96 and RS97

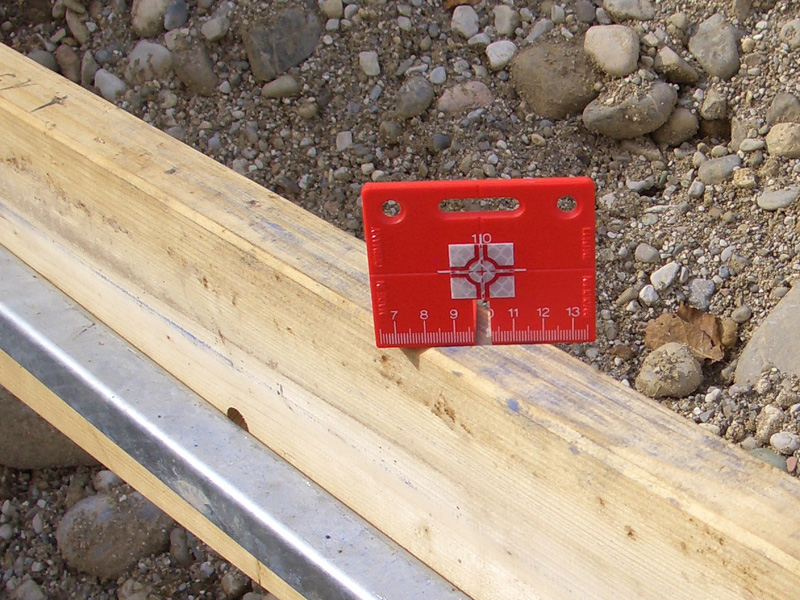

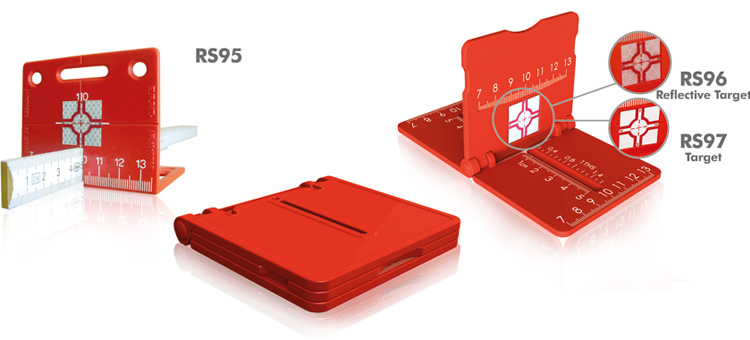

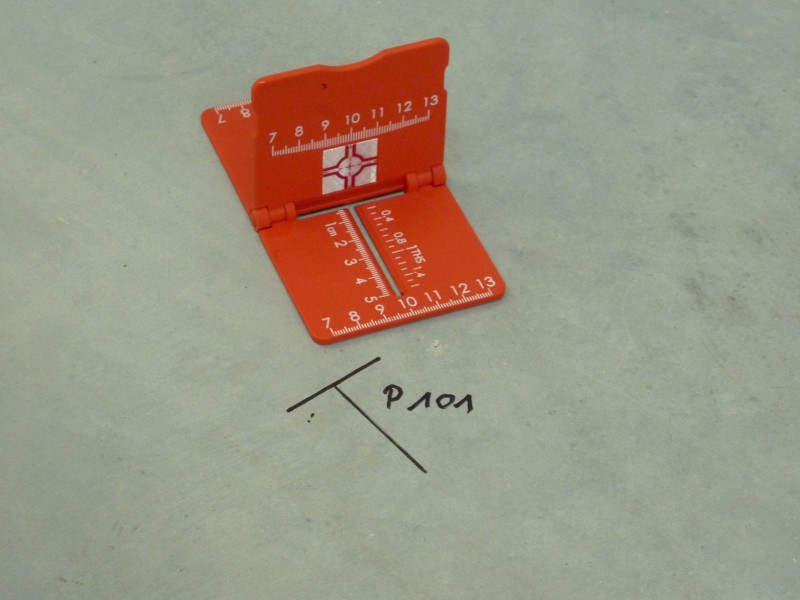

Stake Out Aid with reflective targets and ruling lines

foldable with

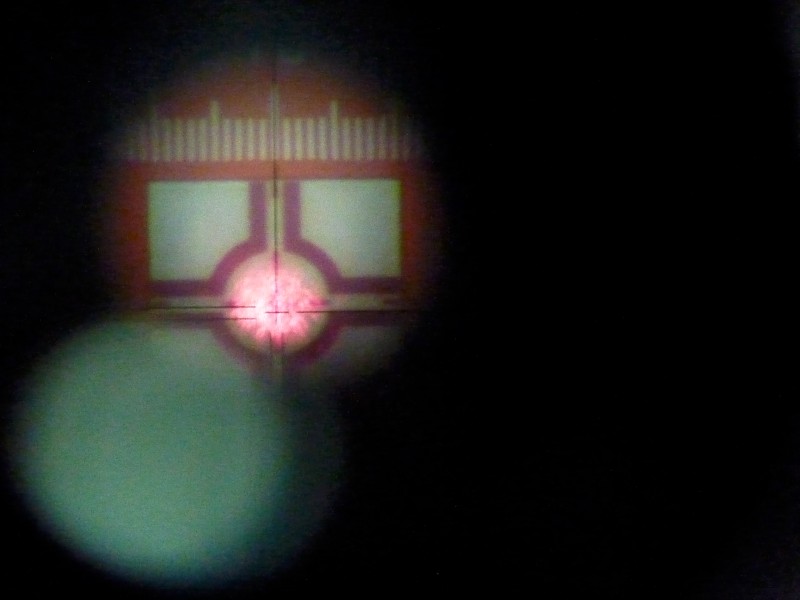

- reflective target + ruling lines RS96
- non-reflective target + ruling lines RS97

Stake out faster and more precisely

The stake out aids RS95, RS96, and RS97 are specifically designed for precise stake out tasks at batter boards and on floor slabs. Particularly in the “final phase”, during the last 5 - 10 cm, measuring survey points on concrete or floor slabs can be challenging, as the prism pole requires frequent adjustments and must be held perfectly vertical – a time-consuming process.

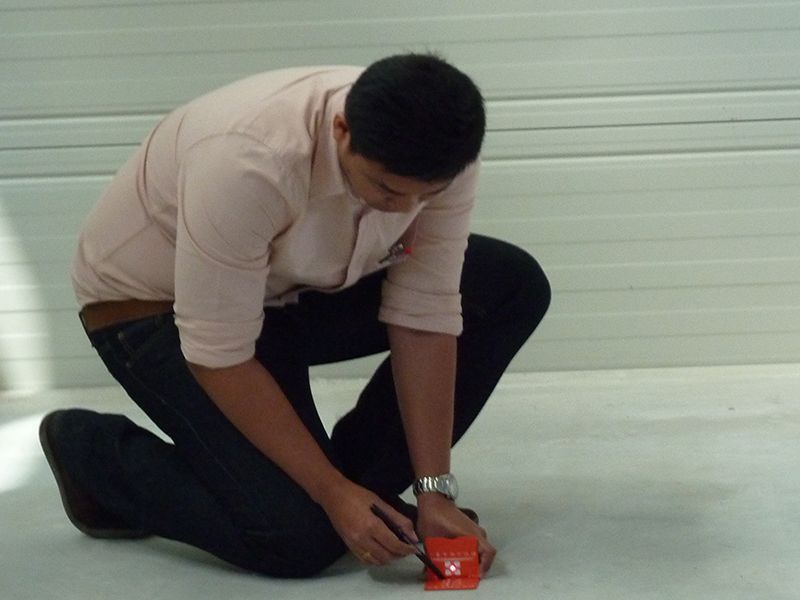

The stake out aids significantly simplify this task: they can be placed directly on the ground and by using the measurement scales, the assistant can quickly and accurately follow and transfer the surveyor’s directional instructions.

Advantages of the stake out aids:

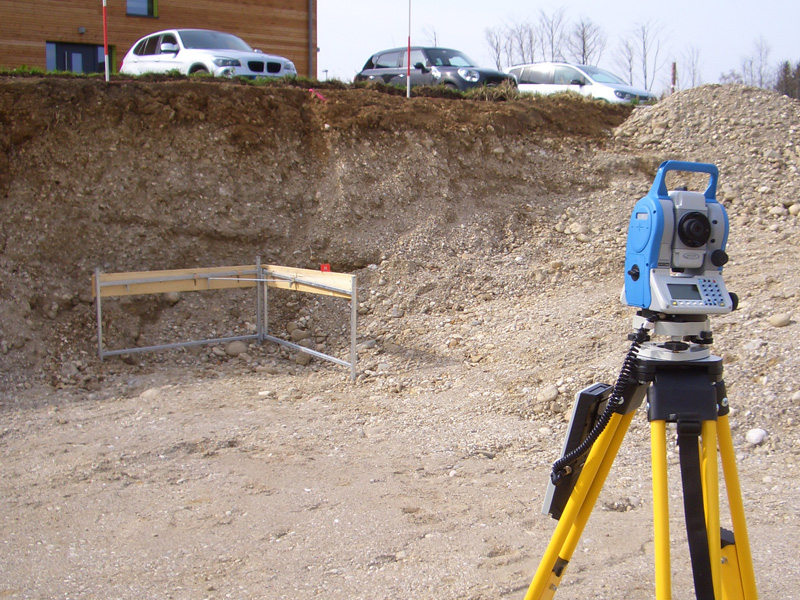

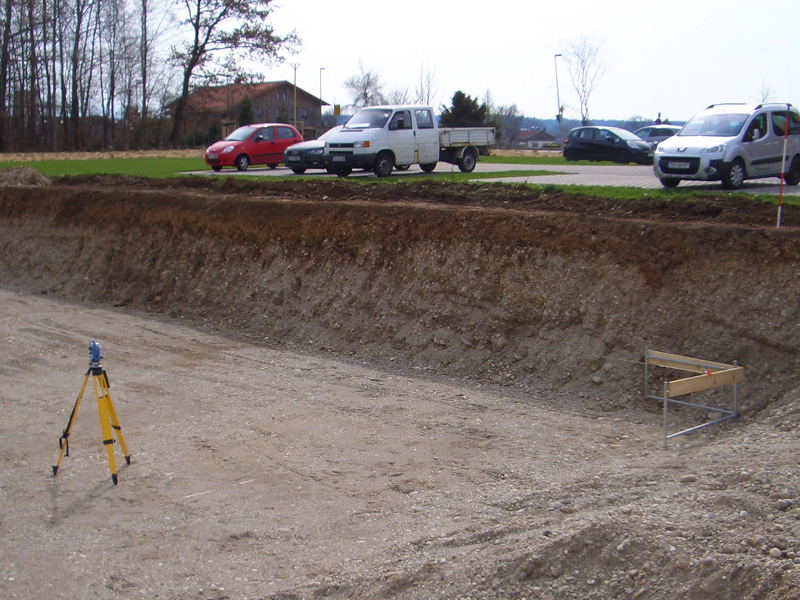

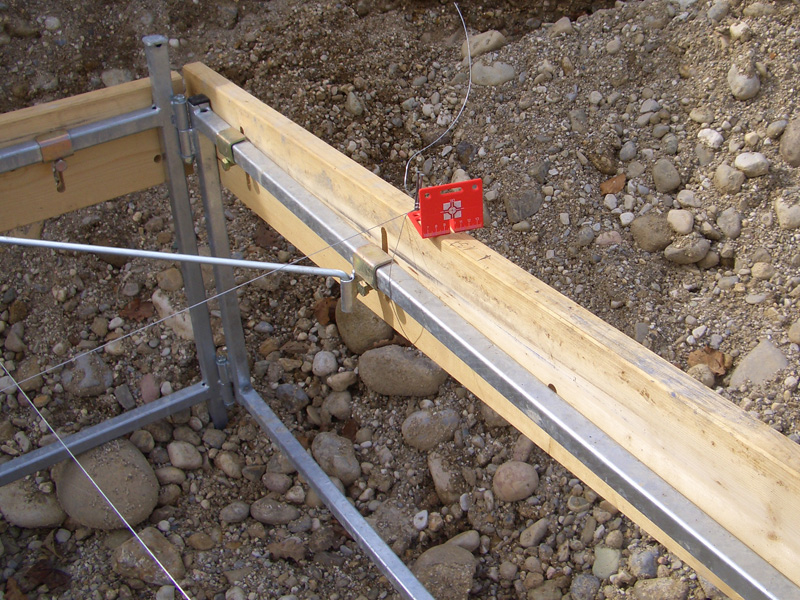

• Simplifies the measurement of axes at batter boards.

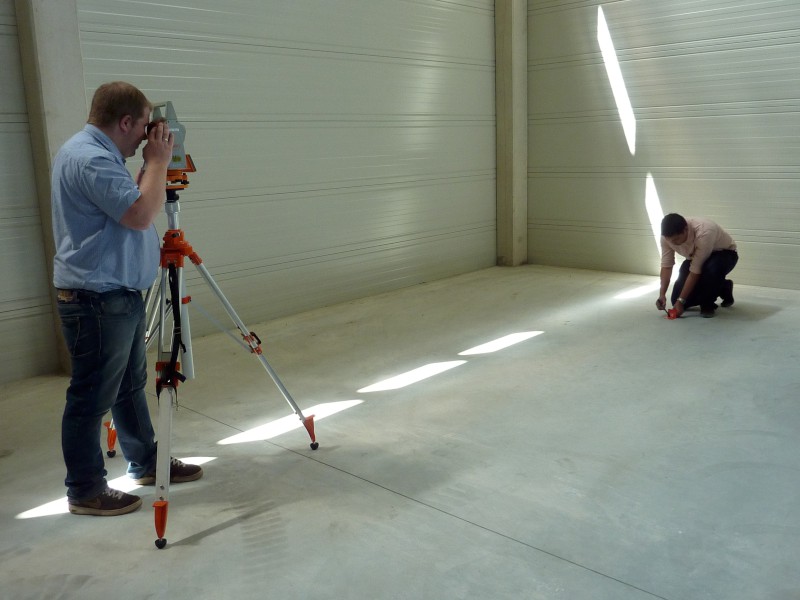

• Enables quick and precise measurements on concrete and floor slabs.
• Facilitates the accurate transfer of the surveyor’s directional instructions.
• Eliminates the need for precise vertical alignment of the prism pole.
• Features orientation scales for left and right (the number 10 corresponds to the axis).
• Includes orientation scales for forward and backward alignment.
• Foldable design: Fits in any shirt pocket or instrument case! (RS96/RS97)
• After minimal practice, significant time savings can be achieved.
• RS95, RS96: The ranges are dependent on the device and can be affected by weather and environmental conditions.

The following heights must be taken into account for the measurements:
RS95: From the crosshairs of the reflective target to the floor slab 30 mm
RS96: From the crosshairs of the reflective target to the floor slab 20 mm
RS97: From the crosshairs of the non reflective target to the floor slab 20 mm

Compactly and safely packaged, practical and quickly to hand – our suitcase sets, the ideal companion: Everywhere.

Ideal for construction surveying, staking out and measuring:

The Stake Out Aid RS95 / RS96 / RS97 is optionally available in the Suitcase Set KS1-193M and KS1-193M-2.
