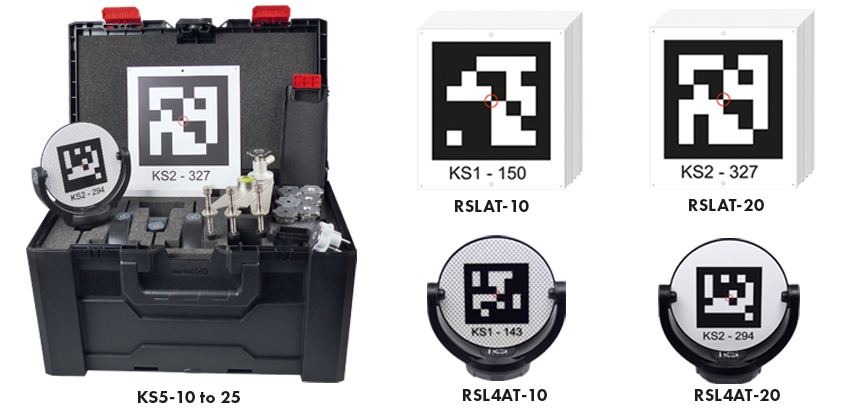

ApriTags RSL4AT and RSLAT-10 to -20 into the suitcase set KS5

AprilTags

RSL4AT and RSLAT-10 to -20

AprilTags for Professional 3D Scans with the Dot3D App


Our suitcase sets KS5 with AprilTags has been specially assembled for the precise capture of 3D point clouds using mobile devices.

Each target has a unique ID and is recognized in real time by the Dot3D software. The app automatically calculates the exact position and orientation of the targets in space, which significantly improves the accuracy of 3D scans. In Dot3D,

AprilTags are primarily used to optimize measurement accuracy, for so-called loop closure (closing scan loops), and for linking multiple scans. If individual AprilTags are also measured with a total station, accuracies in the range of a few millimeters are possible.

The application is simple: the AprilTags are distributed throughout the scan area, while the Dot3D app automatically detects them and uses them to optimize the point cloud.
Especially in large or complex scenes, the AprilTags provide reliable referencing and minimize errors caused by drift or overlap.

The combination of mobile flexibility, powerful software, and AprilTags makes Dot3D a versatile solution for professional 3D documentation.

April Tags RSL4AT

Our suitcase sets KS5 is part of the "One Point Fits All" system and allows flexible attachment of the AprilTags to a wide variety of surfaces to ensure optimal placement and maximum scan quality.

Content KS5-10

  • 4 AprilTags  RSL4AT (low numbers)
  • 23 AprilTags  RSLAT-10 (low numbers)
  • 30 RSFP-X90

Content KS5-20

  • 4 AprilTags  RSL4AT (higher numbers)
  • 23 AprilTags  RSLAT-20 (higher numbers)
  • 30 RSFP-X90





Here you can find further accessories.

Content KS5-15

Content KS5-25



Dimensioning file RSL4AT.pdf and RSLAT-10-20.pdf for download.
Here you find a dimensioning file for each RS product
