Mobile Mapping, Scanner and Ground Control Target

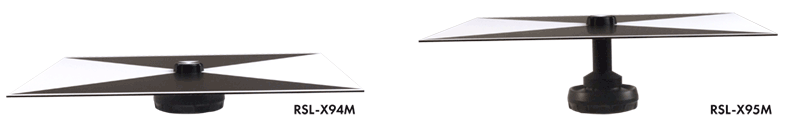

RSL-X94M*, RSL-X95M*, RSL-X96M* and RSL-X97M* (*magnetic)

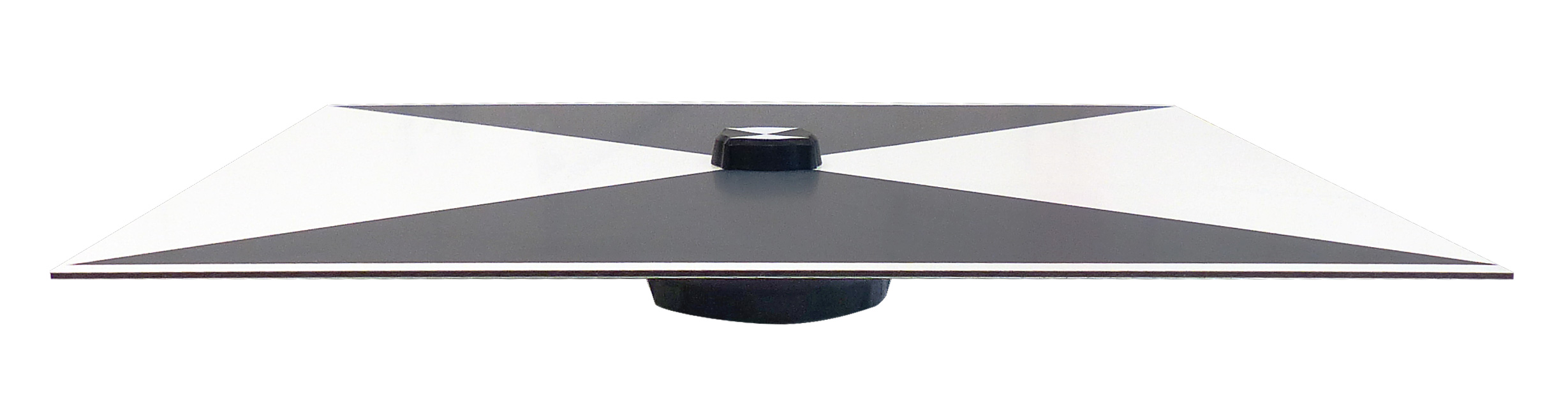

RSL-X94M printed on both sides - grey-and-white or black-and-white
RLS-X96M printed on one side black-and-white

Tilting axis height 45 mm

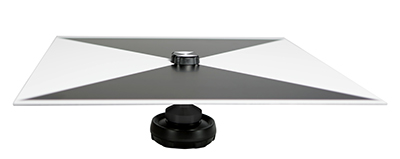

RSL-X95M printed on both sides - grey-and-white or black-and-white
RLS-X97M printed on one side black-and-white

Tilting axis height 100 mm

• Targets made from high-quality DIBOND composite panels
• For using from a greater distance or height
• It is also possible to measure the reference points precisely in advance with total stations, whereby accuracies of ±1 mm can be achieved.

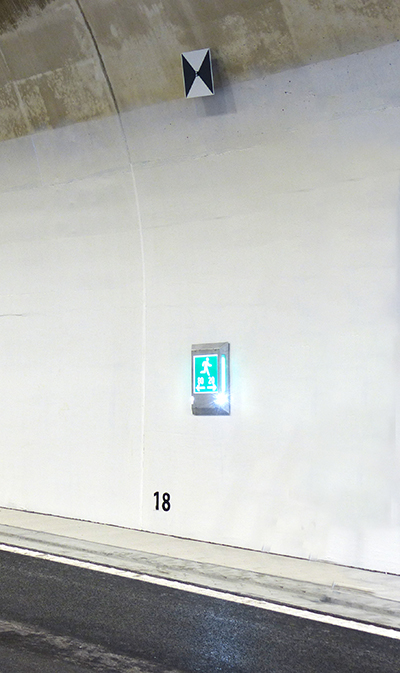

• In tunnels, the reference points RSFP-X90 to RSFP-X99 are first measured with the mini prism RSMP390M* or RSMP395M*. The reference points are then interchangeable with the targets RSL-X94M* or RSL-X95M*. Thus, these targets provide perfect and precise orientation for mobile mapping.

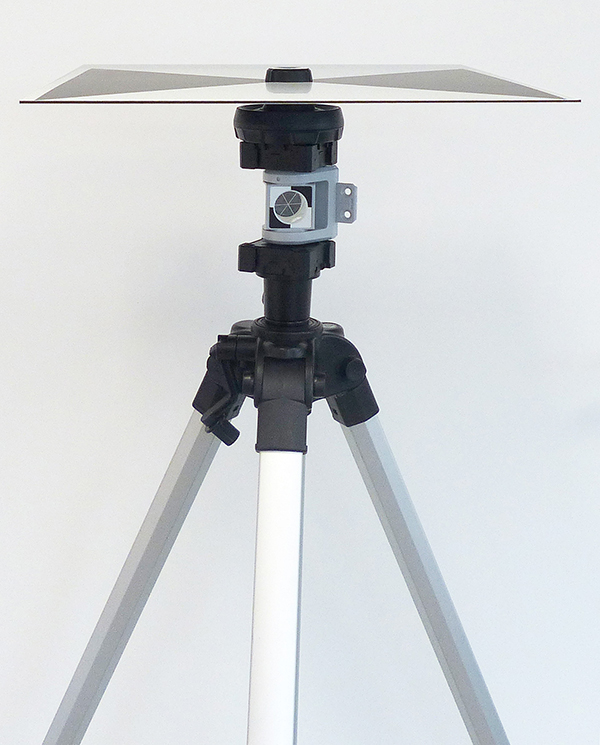

• For even more precise measurements using ground controls, the targets can be placed on a tripod directly above the centre of a prism.

This makes these targets perfect reference points for additional surveying instruments such as scanners, drones, mobile mapping, and more. These targets are products from the series “One Point Fits All” – One reference point for all instruments.
