RSZ2-RSZ6, RSZ22, RSZ2YE-RSZ6YE

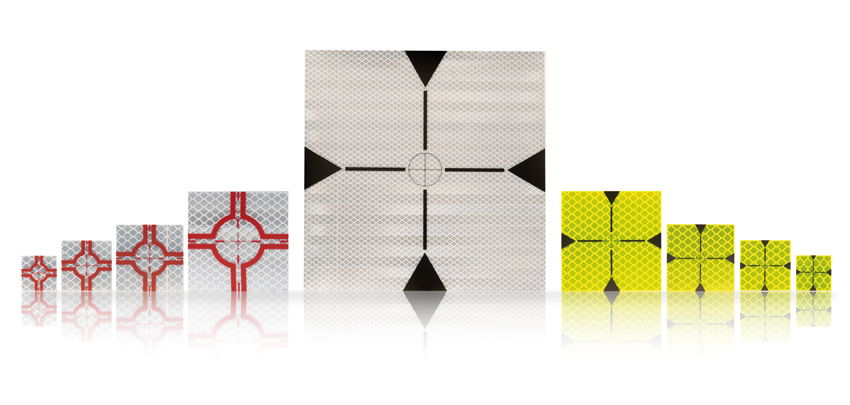

Reflective targets

RSZ2 to RSZ6

RSZ22

RSZ2YE to RSZ6YE

Dimensions and ranges:
RSZ2 / RSZ2YE
Reflective targets 21 x 21 mm -> range approx. 50 m (54,68 yd)
RSZ3 / RSZ3YE
Reflective targets 30 x 30 mm -> range approx. 80 m (87,49 yd)
RSZ4 / RSZ4YE
Reflective targets 40 x 40 mm -> range approx. 100 m (109,36 yd)
RSZ6 / RSZ6YE
Reflective targets 60 x 60 mm -> range approx. 120 m (131,23 yd)
RSZ22 Reflective targets 220 x 220 mm -> range approx. 500 m (546,81 yd)



The ranges are average values and are exceeded by most current measuring instruments. A minimum distance of 10 m is required for some instruments.

Our reflective targets are supplied on a foil backing. Removal of the targets from the backing is possible even if wearing gloves!

In order to guarantee precise measurements, the sighting angle should be no more than 25°.

The ranges are dependent on the device and can be adversely affected by weather and environmental conditions.

For all distance measurements using a total station, it is recommended that only markers with reflective targets are used!
Especially for use with levels, theodolites and general construction lasers, we offer survey markers
with crosshairs without reflective targets.

Safety Data Sheet


Dimensioning file RSZ2bisRSZ6_RSZ22.pdf for download.
Here you find a dimensioning file for each RS product.
