Fixed Point System RSFP-X90 for all RS products with magnetic base
One reference point for all instruments: Total stations, robotic total stations, scanners, drones, Lidar, SLAM, Mobile Mapping, GPS and GNSS!
|
 |
RSFP-X90 - the best-known fixed point from this series
- Fixed Point for all RS products with magnetic base
- When using products with the same tilting axis height the reference point always remains exactly the same!
|
 |
 |
RSFP-X92
- With the fixed point RSFP-X92, additional information such as FFL (Finisehd Floor Level), axis, and position number can be documented
|
|
 |

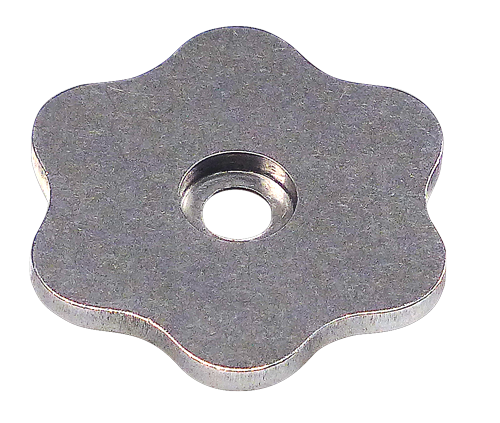

RSFP-X93
- With the fixed point RSFP-X93, an installation with blind rivets is possible
|
|
 |

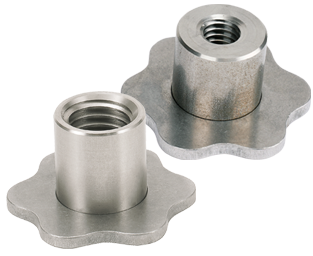

RSFP-X90-1+3
- RSFP-X90 fixed point as separate version with a 5/8” (RSFP-X90-1) or 3/8” (RSFP-X90-3) female thread
- When used with a tripod with 5/8” or 3/8” UNC threaded rod
|
 |
 |
RSFP-X90-2
- RSFP-X90 fixed point as separate version with a 5/8” male thread
- When used with a tripod with 5/8” UNC threaded rod or in combination with the RSA-5/8-1 adapter
|
|
 |
RSFP-X90-m6, RSFP-X90-m8
- Fixed Point RSFP-X90 as a separate version with a m6 thread (RSFP-X90-m6) and a m8 thread (RSFP-X90-m8).
|
|
 |
RSFP-X90-30 to 39*
- Power socket adapter – smart solution for reference points inside
- *different country versions
- Ideal for digital 3D surveys
|
 |
 |
RSFP-X90-74
- For fast and precise reference points on elements such as beams, door and window jambs, wall openings, etc
|
|
 |
RSFP-X90-5 and RSFP-X99-5
-
In combination with Leica bolts there is the RSFP-X90-5 adapter, enabling all our products with a magnetic base to be easily attached to any Leica bolt.
-
If greater magnetic adhesion to the adapter is desired or required, we recommend the RSFP-X99-5 adapter (e.g. in tunnels).
|
|
 |
RSSV-X90, RSSV-X99
- Suction Cup for all glass surfaces and smooth surfaces, indoors and outdoors
- If greater magnetic adhesion to the adapter is desired or required, we recommend the suction cup RSSV-X99
|
|
 |
RSFP-X90-20, RSFP-X90-21, RSFP-X99-20, RSFP-X99-21
- Fixed points with heavy duty anchor for quick and safe mounting of reference points on rocks, difficult surfaces or on historic buildings in the mortar joint.
- If greater magnetic adhesion to the adapter is desired or required, we recommend the adapter RSFP-X99-20 and RSFP-X99-21
|
 |
 |
RSFP-X90-25, RSFP-X90-26, RSFP-X99-25, RSFP-X99-26
- Fixed point RSFP-X90 and RSFP-X99 for clamping points or pipes
- If greater magnetic adhesion to the adapter is desired or required, we recommend the adapter RSFP-X99-25 and RSFP-X99-26
|
 |
 |
RSFP-X97-2, RSFP-X97-3
|
|
 |
RSFP-X98-1, RSFP-X98-2
- The ground stand is available straightaway for every instrument at any location
- RSFP-X98-2 with spirit level, also suitable for staking out
- RSFP-X98-3 also for GNSS and GPS antennas
|
 |
 |
RSFP-X99
- Fixed Point for difficult ground
|
 |
 |
RSFP-X99M
- The quickest and easiest way to create a reference point on any magnetic surface
|
|
 |
RSFP-X99-1
- Fixed Point for tripod or tribrach
|
|
 |
RSFP-X99, RSFP-X99-11+12
- For quick fixed points on construction sites and for BIM reference points in tunnels
- Quick fixing on difficult substrates
- Long-term solution for monitoring
|
|
 |
RSFP-X99-70
- Fixed Point for tension belts
|
|
 |
RSFP-X99-73
Fixed Point for pipes and scaffolding with ∅ 48 - 51 mm
|
|
 |
RSFP-X990 + RSFP-X99-80M
- Corner Adapter for Extending the Measuring Range Around Building Corners
|
|
 |
RSFP-X90-S40
- Control measurements of inside and outside corners
- Control measurements at recesses or at the edge of the ceiling
- Measurements on pillars – direct measurements can be taken on bevelled edges at the vertex!
- Transfer heights around the corner with marking attachment
- Measure of position and heights of corner blocks quickly and precisely when bonding clay blocks
|
|
| |
QR codes lead to respective application films on our YouTube channel
|
Dimensioning file Accessories for series RSFP-X90 to RSFP-X99 for download.
Here you find a dimensioning file for each RS product.
