Mini Prism
RSMP15
Our smallest prisms for special cases

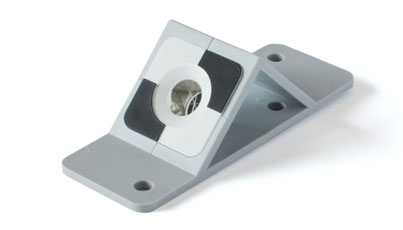

Angle Plate RSMP15 with ∅12.7 mm mini prism, silver coated

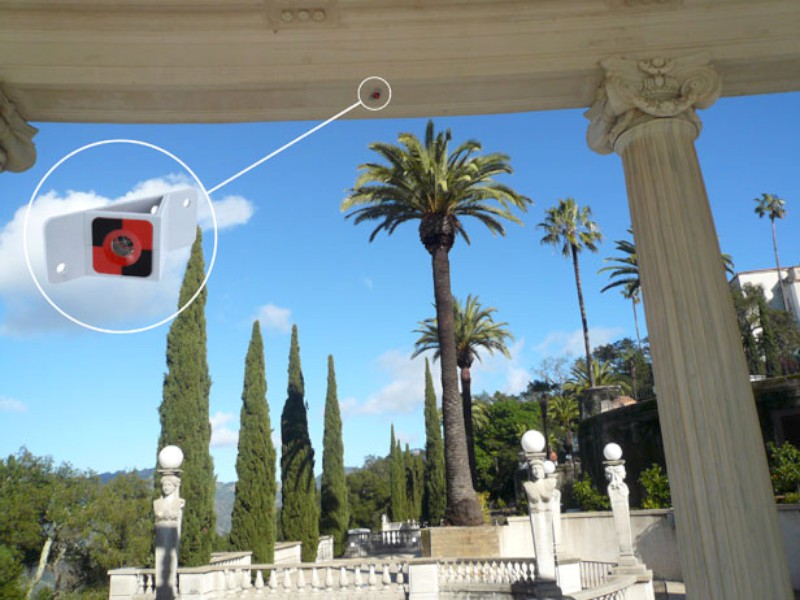

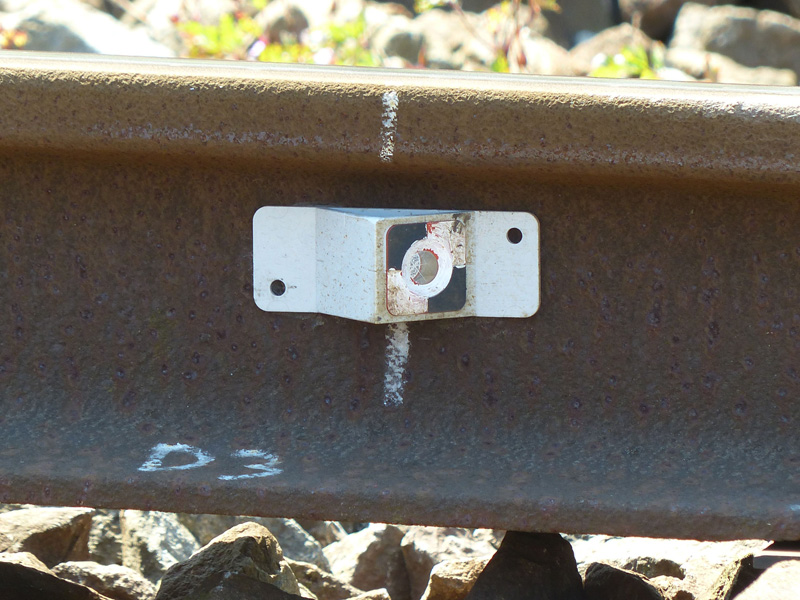

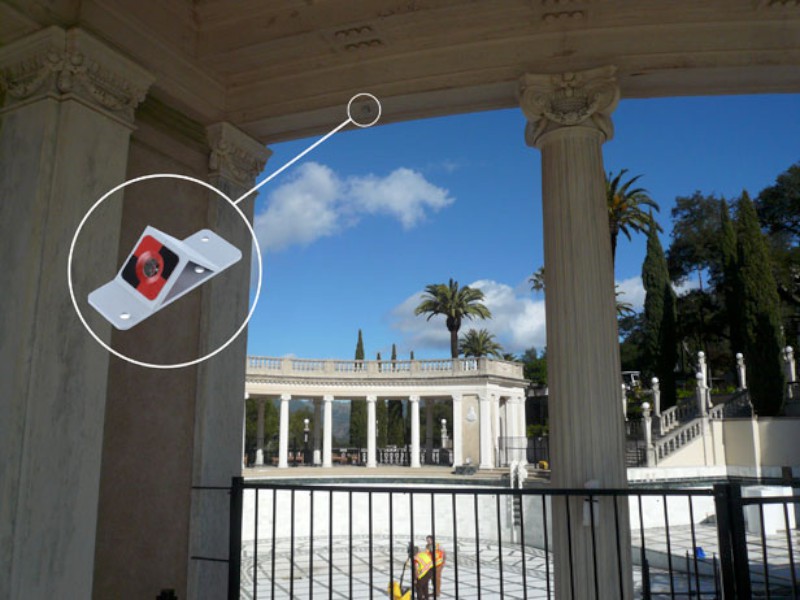

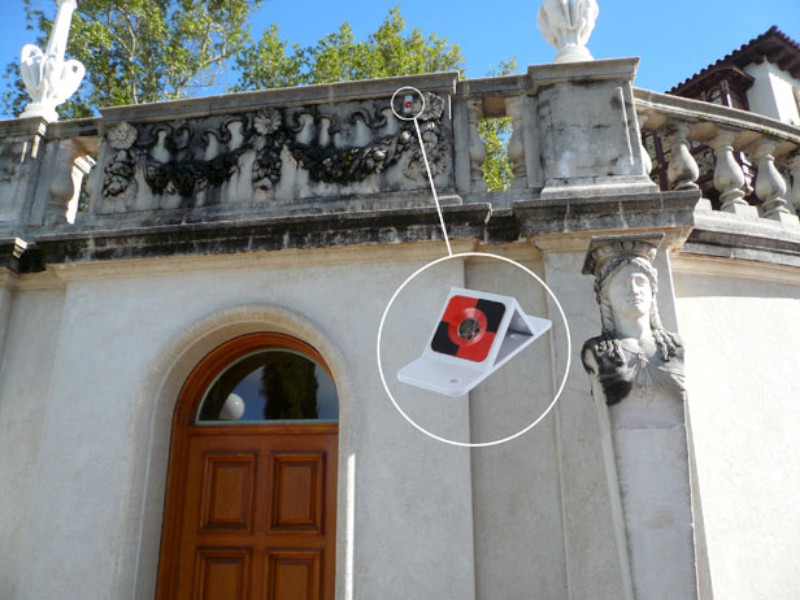

For quick mounting, RSMP15 with 12.7 mm mini prism is easily glued, even to difficult surfaces such as marble façades, historic buildings, steel work, rail tracks, gas and oil pipelines.
When using robotic total stations:

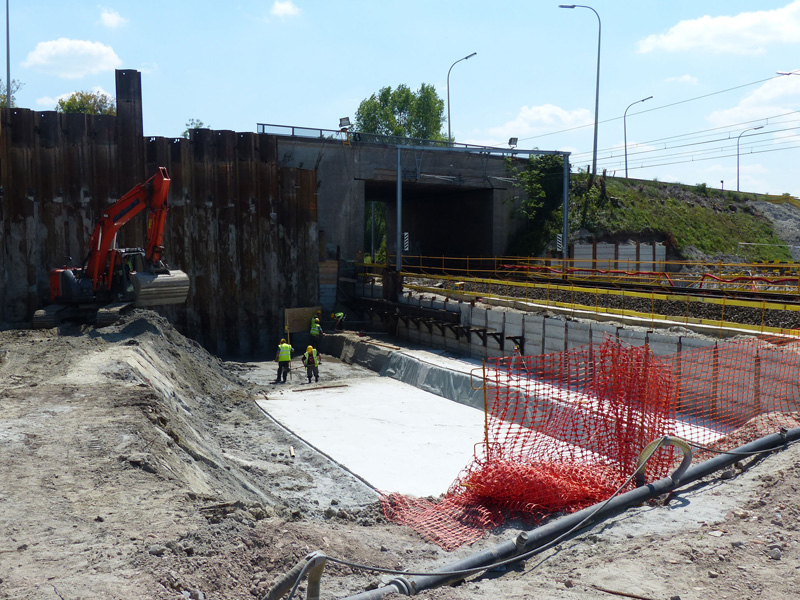

- Permanent settlement monitoring can be carried out during the building work

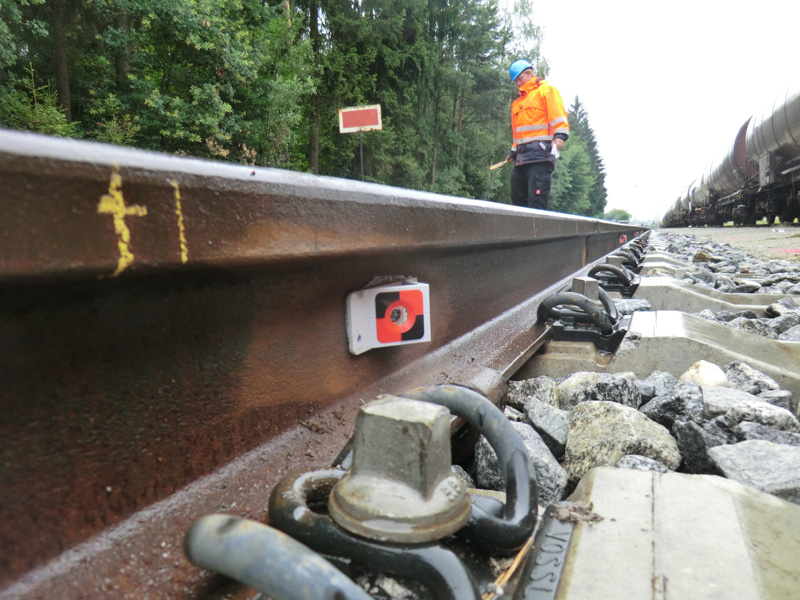

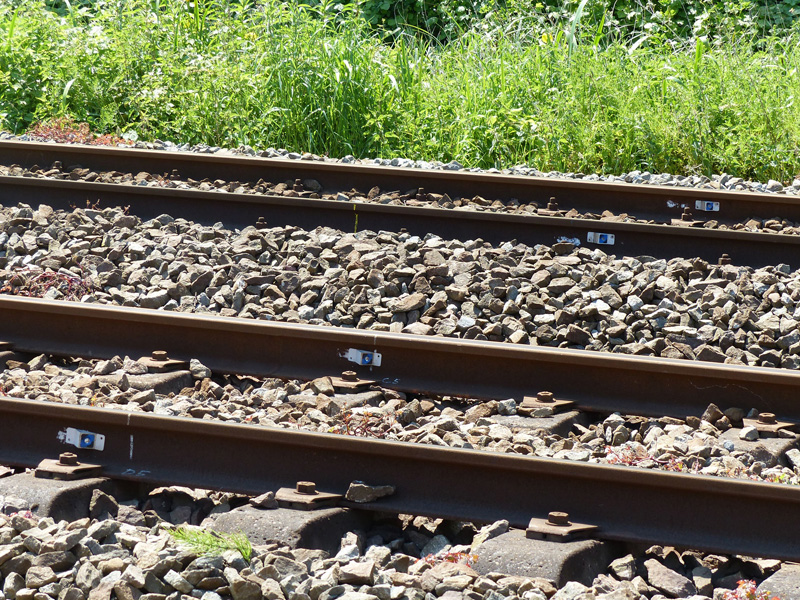

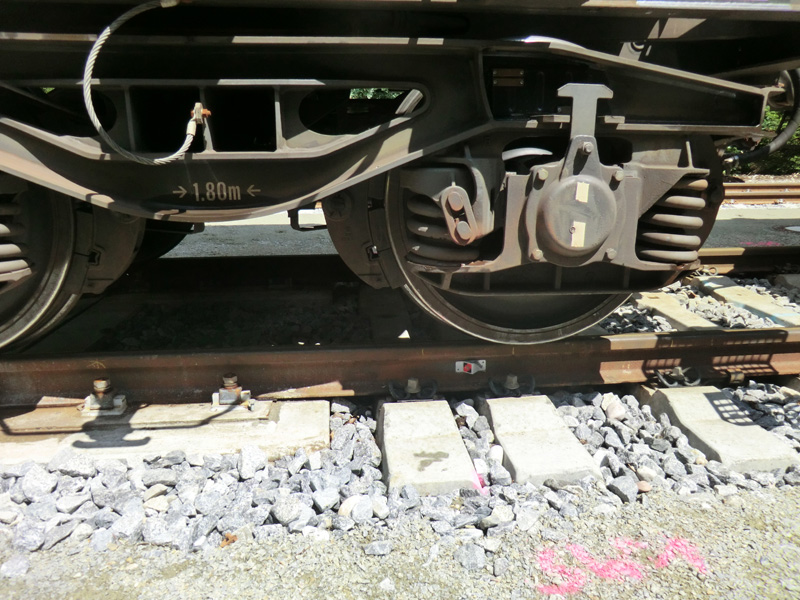

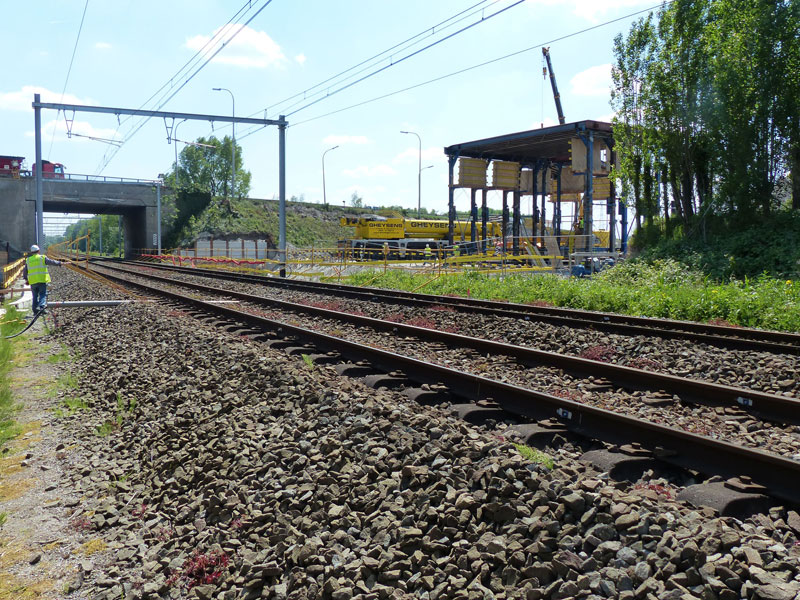

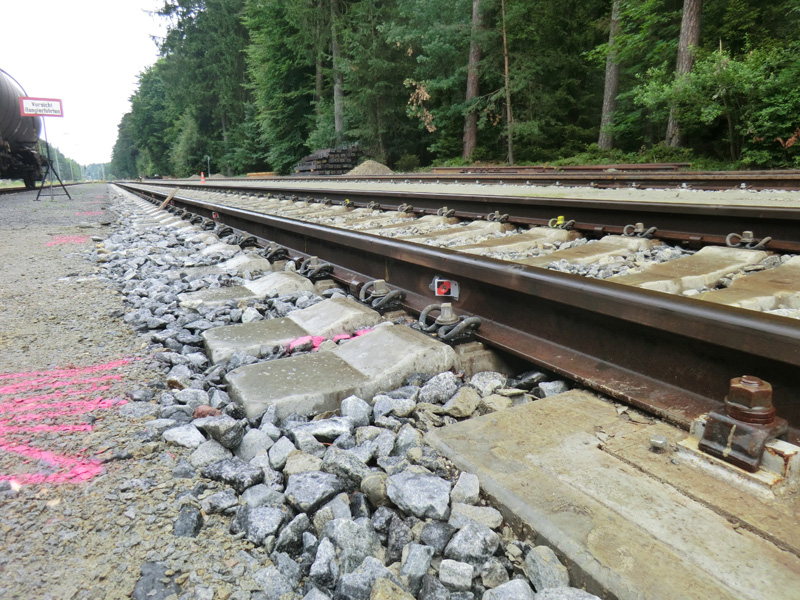

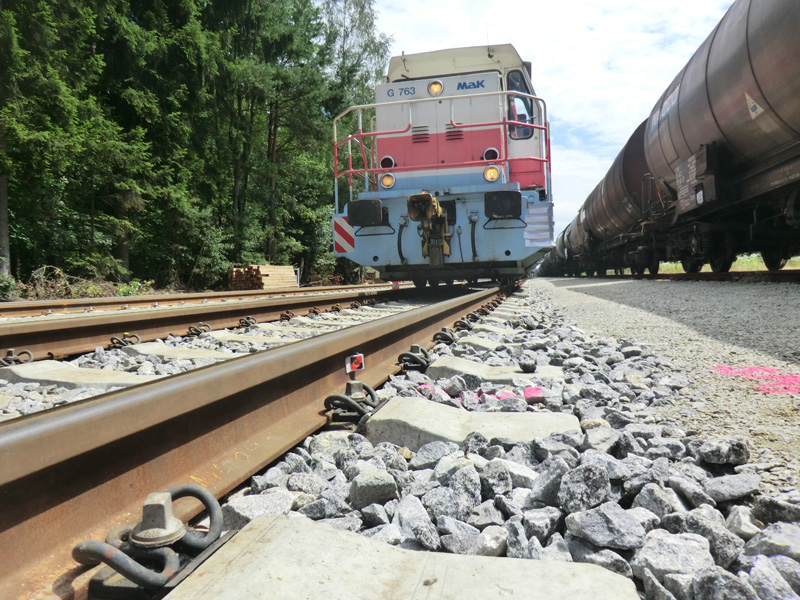

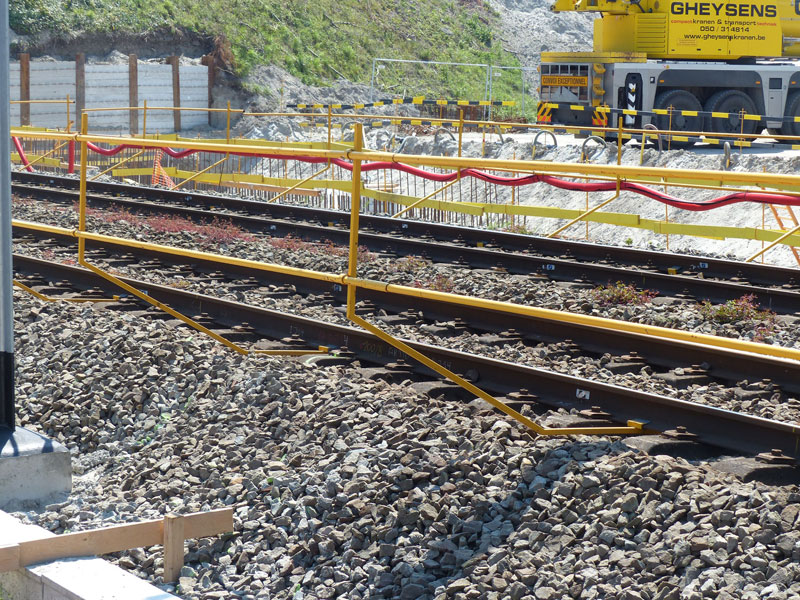

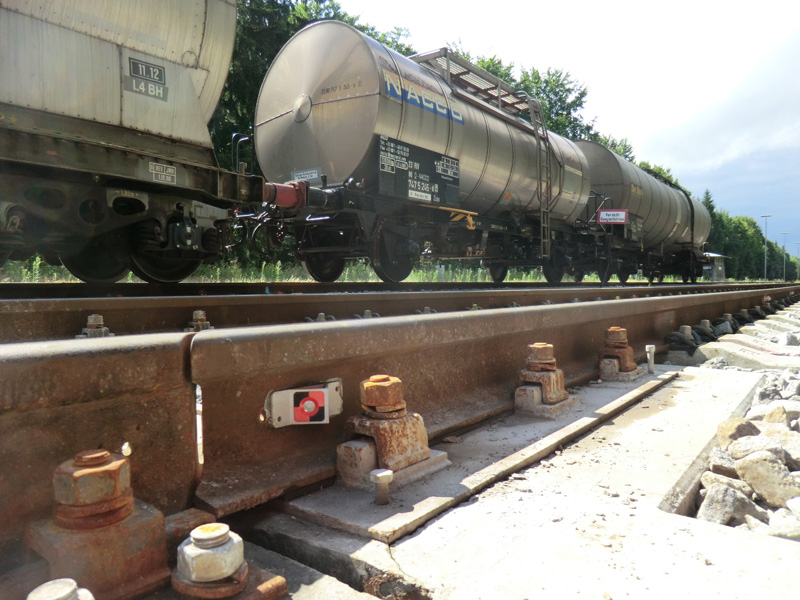

- Settlement measurements on railway tracks are possible while under the load of rail traffic
- Bridges and other structures can be monitored even more quickly and precisely
The prisms can be used at an angle of up to 25 degree.
In the event of problems with the angle or when measuring from greater distances, we recommend our tilting mini prisms: RSMP380, RSMP380M, RSMP390, RSMP390M, RSMF12 and RSMF52
The ranges are dependent on the device and can be affected by weather and environmental conditions.
RSMP15 with 12.7 mm mini prism, silver coated: Offset: -5.6 (minus 5.6) for Leica: +28.8
Dimensioning file RSMP15.pdf for download.
Here you find a dimensioning file for each RS product
