Laser Scanner and SLAM Targets |
|

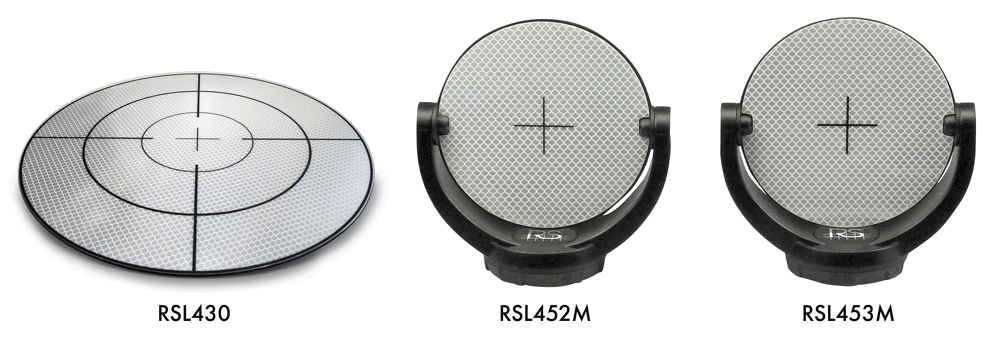

RSL430 |
RSL452M and RSL453M |
| with RSA-490M Adapter for Slam Target | for use with all referent points of the serie RSFP-X90 to RSFP-X99 |
| In order to link point clouds of SLAM algorithms more precisely, our Laser Scanner and SLAM brands are offered in various versions. Can also be used for RIEGL scanners. | |
|
The Laser Scanner and SLAM RSL430 target is a ground control target for use with appropriate software.
Automatic recognition is possible by means of shape and reflection.
For vertical target use e.g. at the roadside, the RSA-490M adapter is available. Its magnetic base also makes it possible to use on a tripod. The RSFP-X90-1 adapter is required as a connecting piece.
|
The RSL452M version, forms part of the "One point for all instruments" surveying system.
Thus, the reference points can also be measured and used additionally with total stations or other instruments.
If RIEGL scanner are in use the target RSL453M will give you the same xyz coordinates for long as for short distances by tilting or rotating the target.
When used indoors, our socket adapters and suction cups give you the opportunity to create permanent reference points without leaving any marks.
|
 |
 |

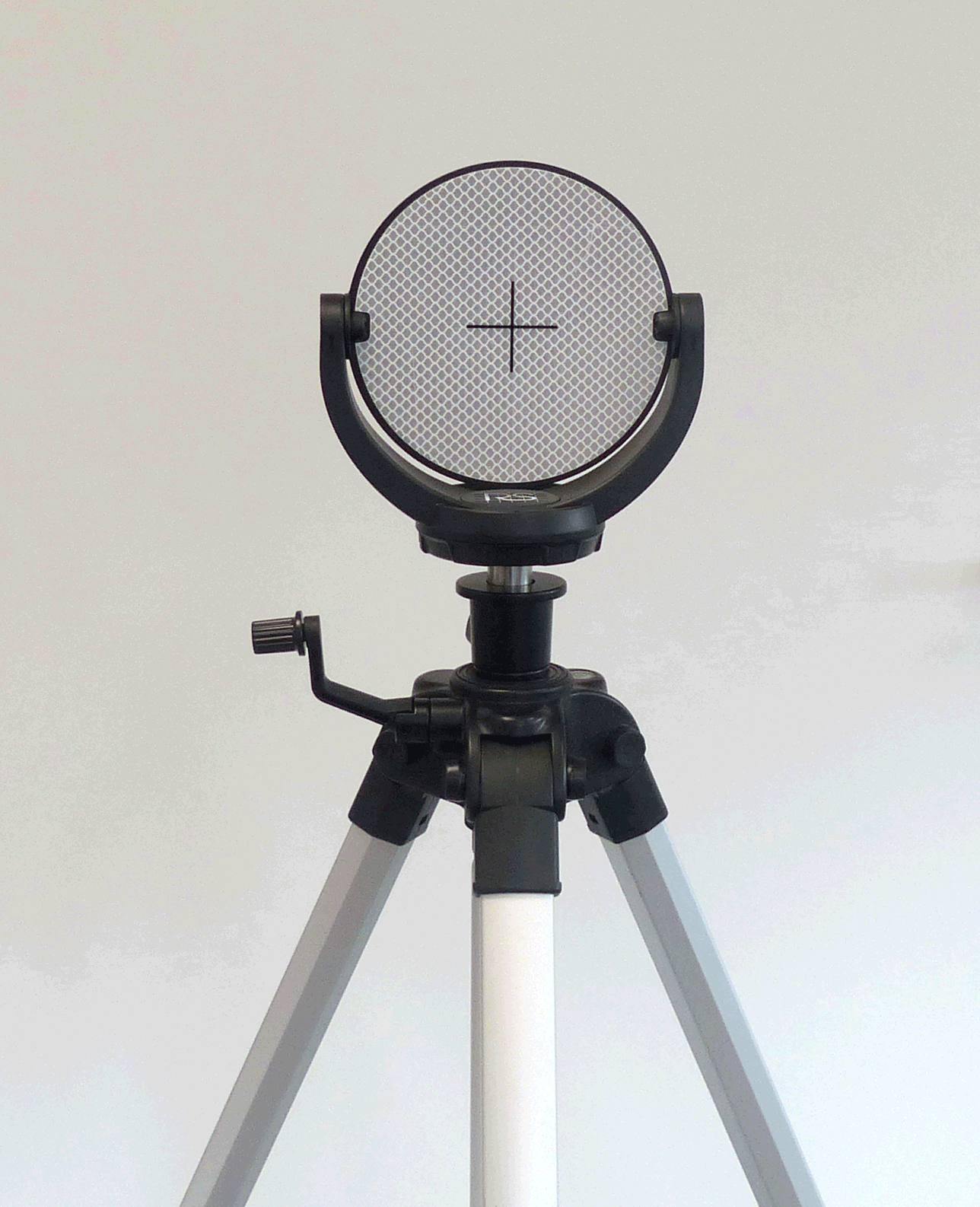

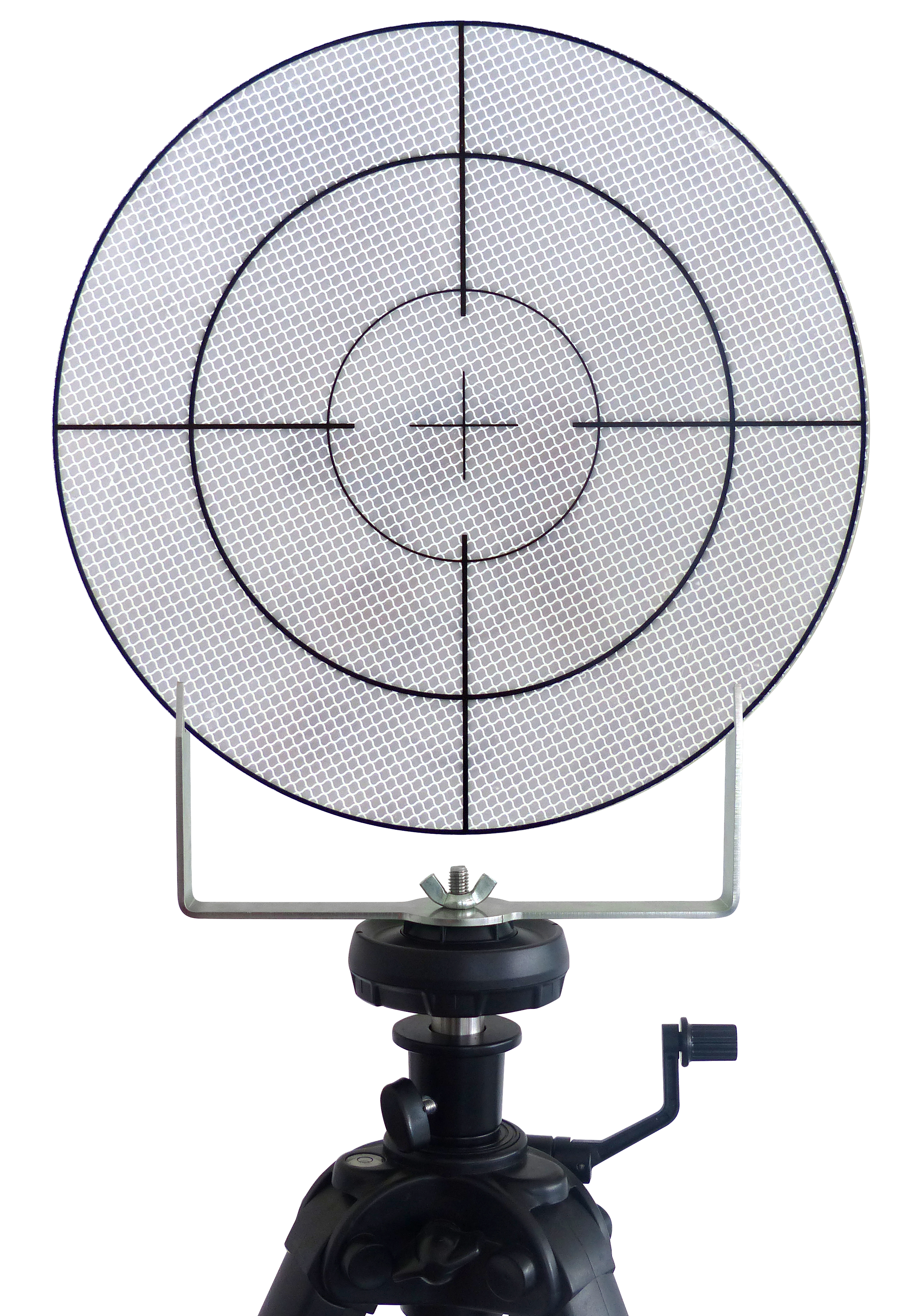

| RSL430 Laser Scanner and SLAM target with RSA-490M adapter and RSFP-X90-1 adapter on tripod for vertical using | RSL452M Laser Scanner and SLAM target with tilt and turn function, magnetic |
Dimensioning file SLAM Targets for download.
Here you find a dimensioning file for each RS product
