Smart Target RSAKZ6 - Carrier plate with reflective target

Smart Target RSALU22 - Aluplate with reflective target

RSAKZ6

Carrier plate with reflective target

RSALU22

Aluplate with reflective target

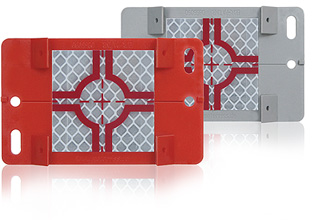

  • RSAKZ6: carrier plate for 60 x 60 mm reflective target
  • Range from 10 m to 120 m
  • Temperature and UV-resistant
  • Can be mounted even on difficult surfaces

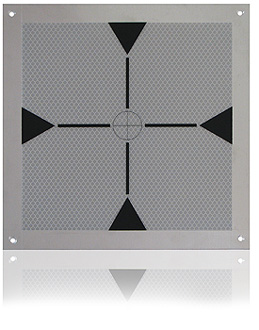

  • The RSALU22 markers were specially developed for long distance measurements
  • Range 400 m - 500 m
  • The shape of the crosshairs enables exact bearings to be taken from long distances

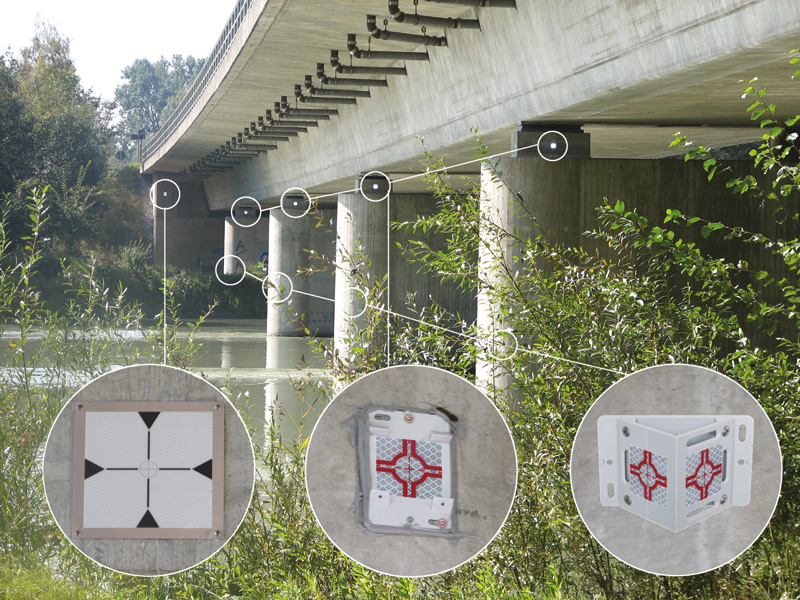

To secure the survey point for a longer period, markings were applied to the carrier plates so that any damaged reflective target can easily be replaced and the original measuring point can be restored quickly, easily and cheaply.

The ranges are dependent on the device and can be adversely affected by weather and environmental conditions.

Please note: Survey markers with reflective targets are exclusively recommended for carrying out distance measurements using a tachymeter or total station.
Survey markers with crosshairs, and without reflective targets, are available for the use of levelling instruments, theodolites and construction lasers.




Dimensioning file RSAKZ6 and RSALU22.pdf for download.
Here you find a dimensioning file for each RS product
