EUR. PAT. NO. 1 310 765
Smart Angle Targets
RS80 & RS90 & RS100
Solutions for challenging positions
These Smart Targets are used in situations where direct aiming at survey points is no longer possible due to difficult measurement positions.

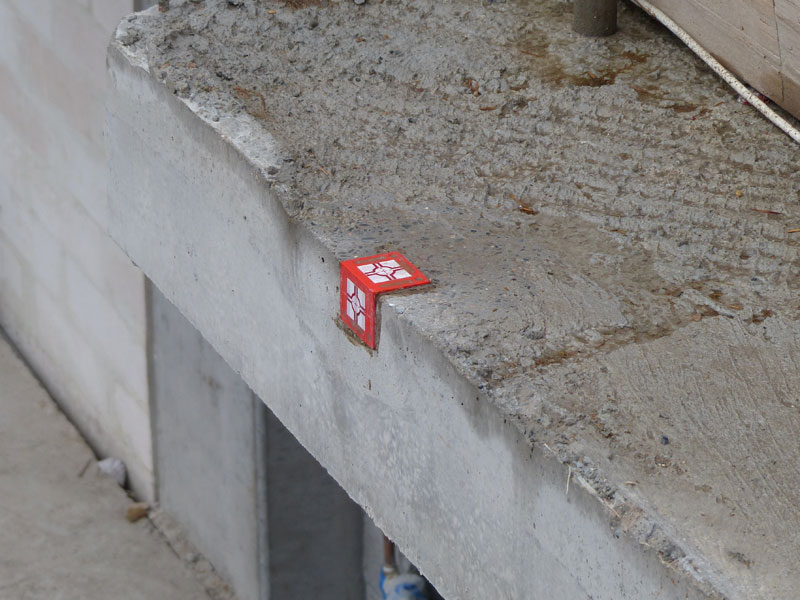

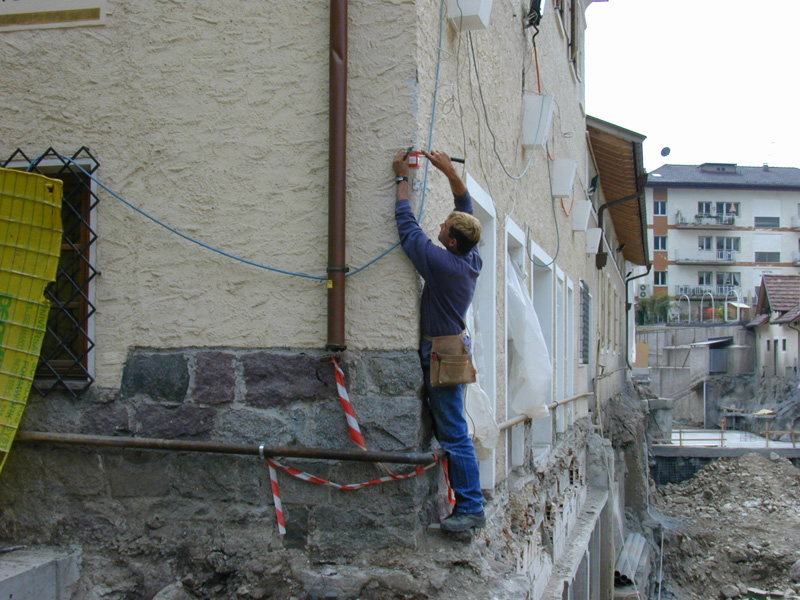

The RS80 targets are mounted in a “gable-shaped” configuration and are particularly well-suited as corner solutions for observing façades and other structures.
When transferring heights and axes from outside to inside or vice versa, the RS80 targets can be installed on window reveals to facilitate measurements “around the corner”.

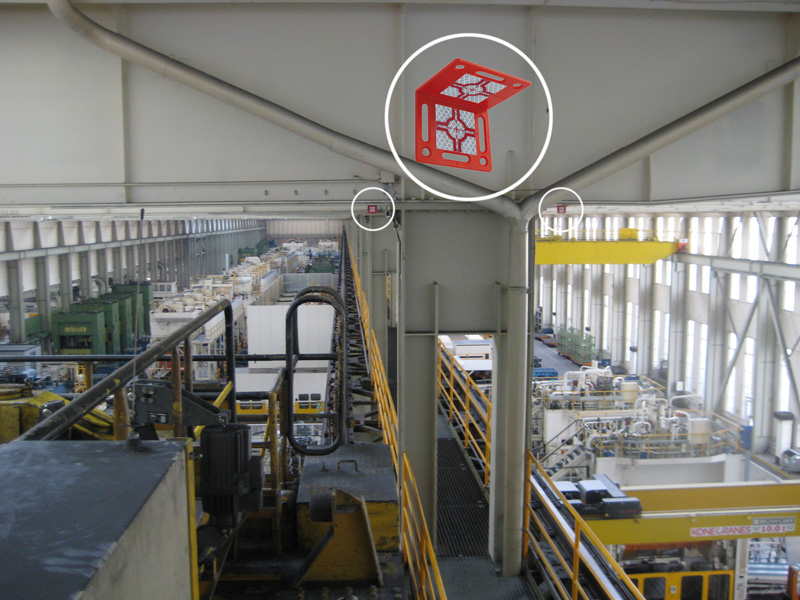

The RS90 targets enable survey points to be aimed at from almost any position, allowing an axis to be targeted, for example, from the front, below, or above.
To ensure the survey point remains secure over time, each reflective target features a crosshair imprinted on the backing plate

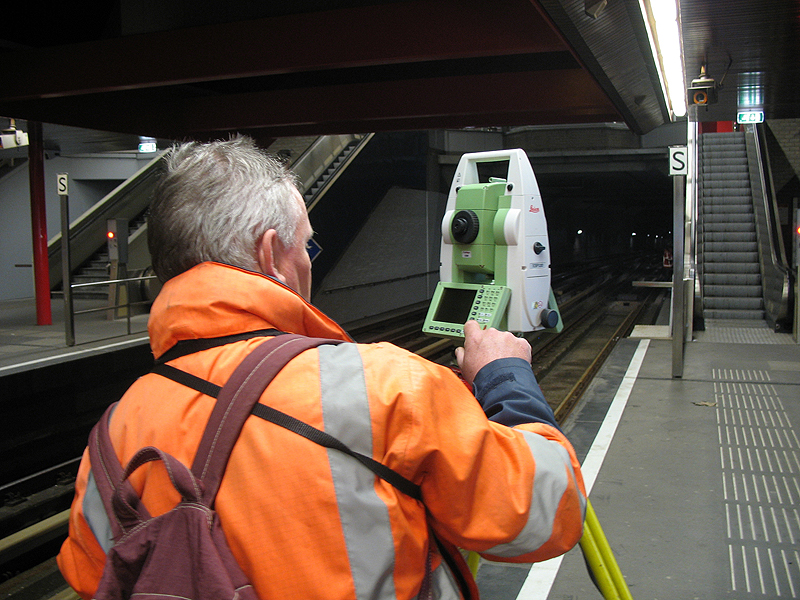

For distance measurements with total stations, use only targets with reflective sheets.
RS80, RS90: The ranges are dependent on the device and can be adversely affected by weather and environmental conditions.

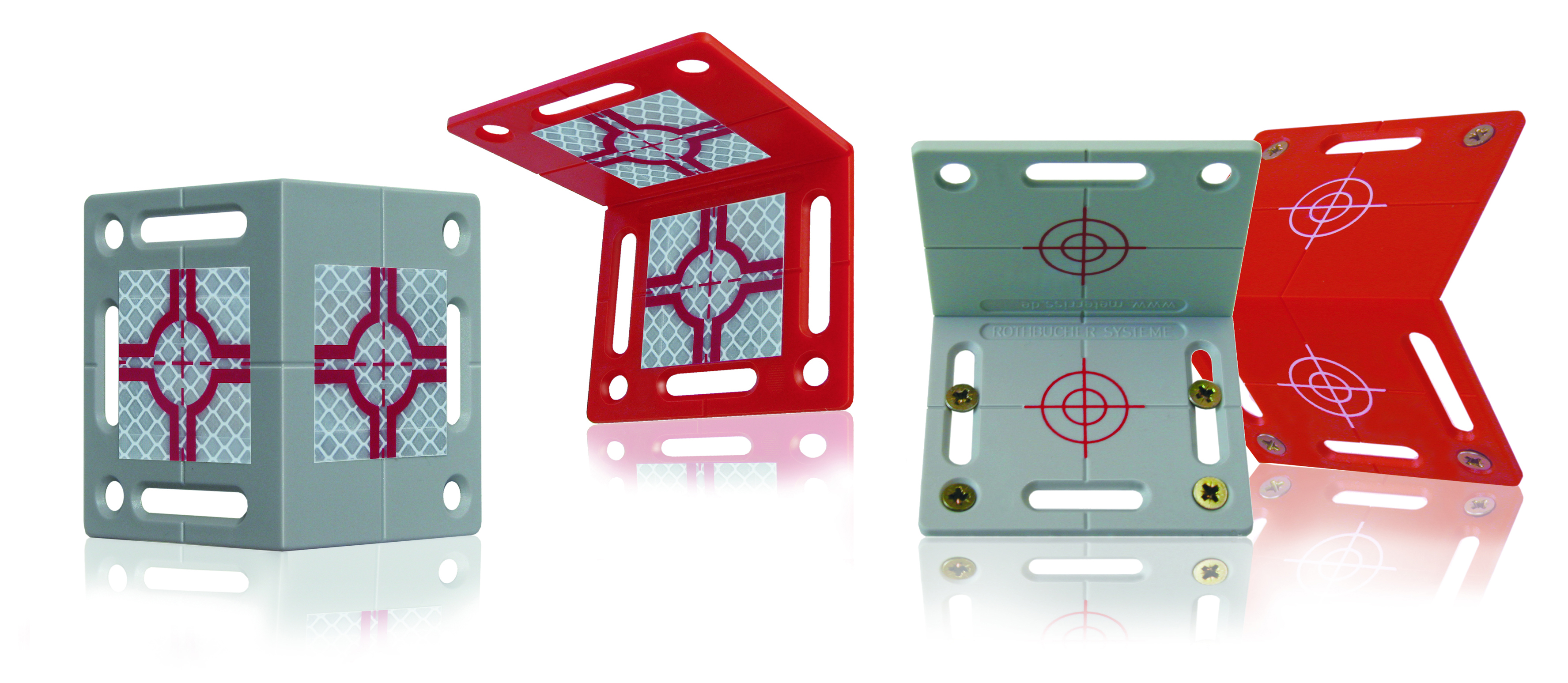

Smart Angle Target RS80 with two reflective targets 40 x 40 mm, 90 mm x 75 mm
Smart Angle Target RS90 with three reflective targets 40 x 40 mm, 75 mm x 65 mm
Smart Angle Target RS100 with four crosshairs, 90 mm x 75 mm
Dimensioning file RS80, RS90 and RS100.pdf for download.
Here you find a dimensioning file for each RS product.
